A2
A1
4A-3 4A-4
socket wrench
Step
4B Solid Concrete or Concrete Block Option
Avoid potential personal injury or property damage! DO NOT
over-tighten the lag bolts [A1]. Tighten the lag bolts [A1] only until the
washers [A2] are pulled firmly against the wall plate .
WARNING:
Wall
Anchor
A3
WARNING:
Ensure the wall plate is securely fastened to the wall
before continuing on to the next step.
WARNING:
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the arm assembly/wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
65

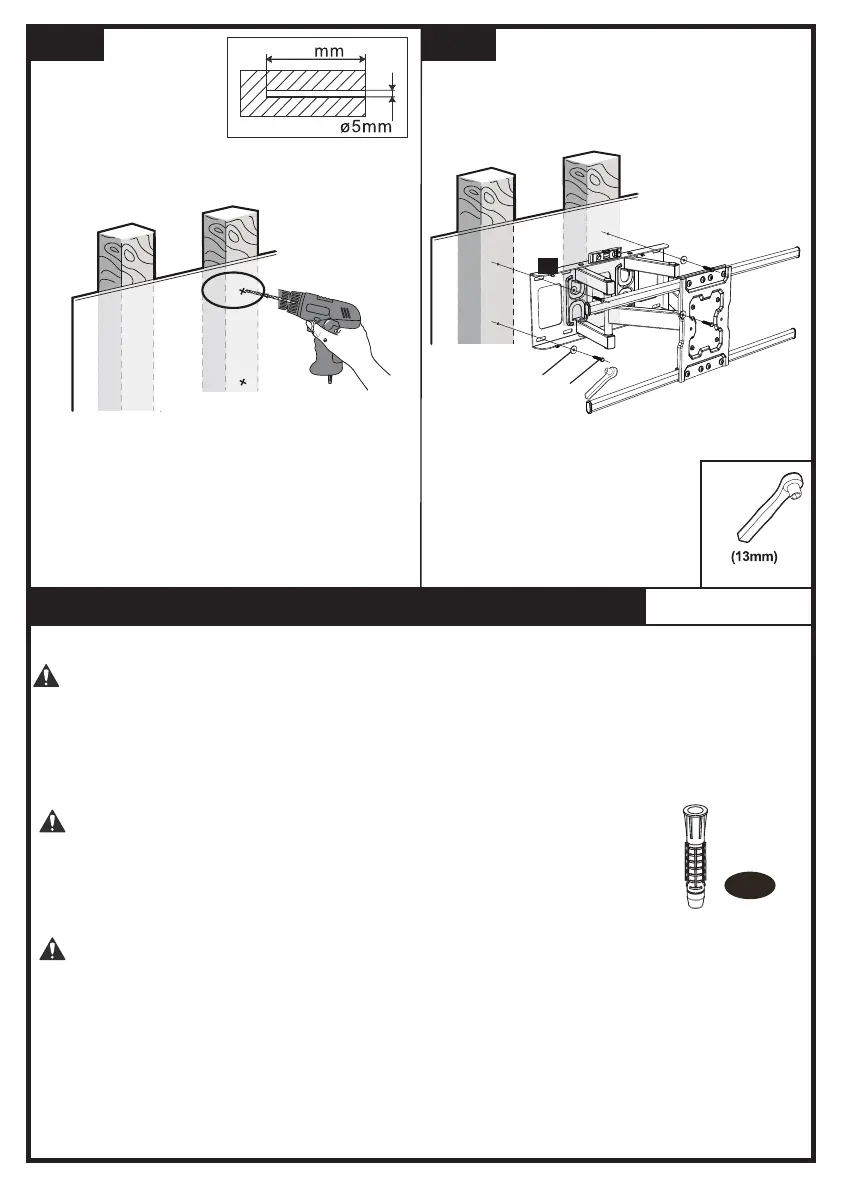

Mount the wall plate using 4 sets of
M8X65 lag bolts A1 and washers A2 with a
1/2 in.socket wrench(not included).
Drill 4 pilot holes using a 1/5 in. (5mm)
Wood Drill diameter drill bit.Make sure
the depth is not less than 65mm.
05
7
