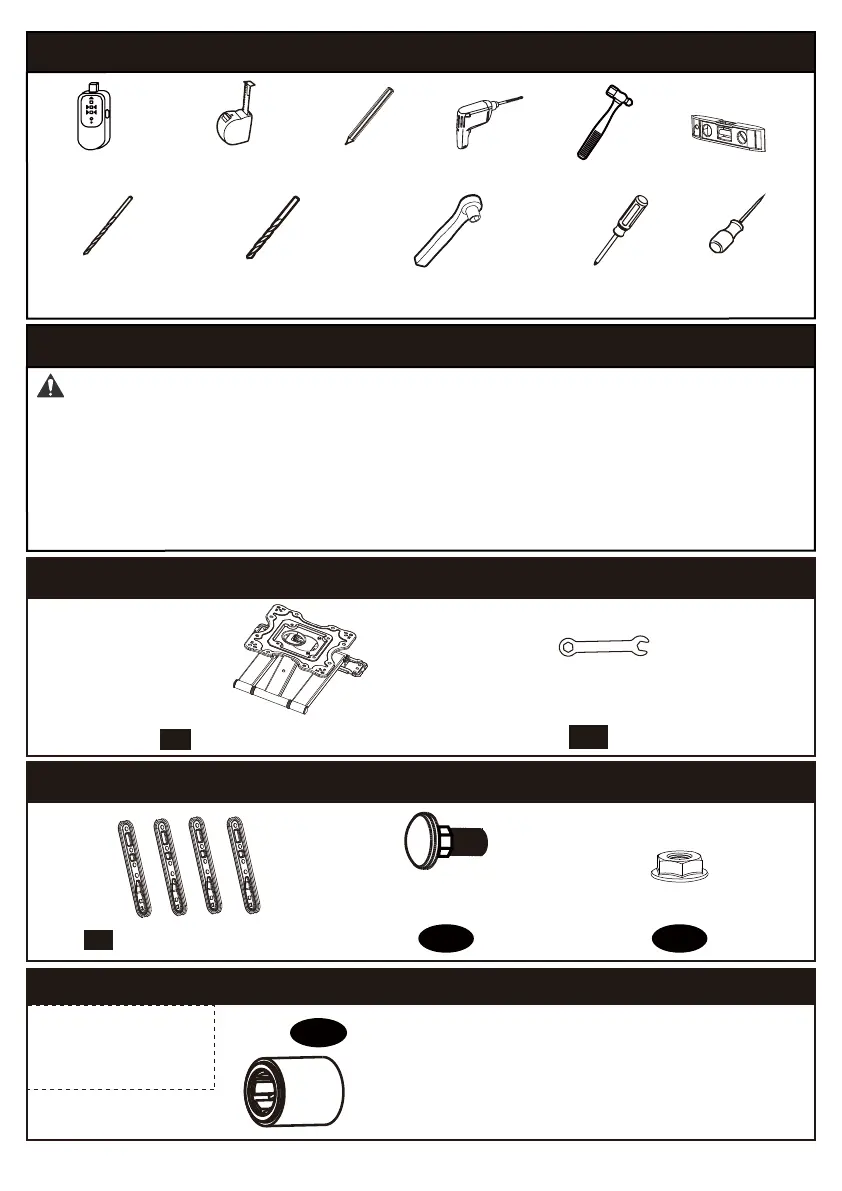

Supplied Parts and Hardware for Step 3
Supplied Parts and Hardware for Step 2（Optional）
Note: The spacer is
shown in accordance
with the actual size
φ15 x φ8.2 x 10mm
x4
03 Spacers
[If necessary]
Awl
Tools Needed (Not lncluded)
Stud Finder Tape Measure
Pencil Drill
5/32 in.(4mm)
Wood Drill
3/8 in.(10mm)
Concrete Drill
1/2in.(13mm )
Socket Wrench
Screwdriver
Hammer Level
Supplied Parts and Hardware
Warning:This product contains small items that could be a choking hazard if
swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not use
damaged or defective parts. lf you require replacement parts, contact our Product
Support line at 1-800-556-6806 or customer service at
supportus@perlesmith.com
• Please note: Not all hardware included in this package will be used.
Arm Assembly/Wall Plate x 101
Supplied Parts and Hardware for Step 1
02
Extender Bracket x 402
Bolt (X4)
M6 x 12mm
K
M6 Nuts (X4)
F
3/8 in.(10mm)
Wrench
H X1
To Next Page
