Note: If necessary, the spacers can be used in multi-layer. If the installation
fails after trying various methods, please contact customer service at
supportus@perlesmith.com.

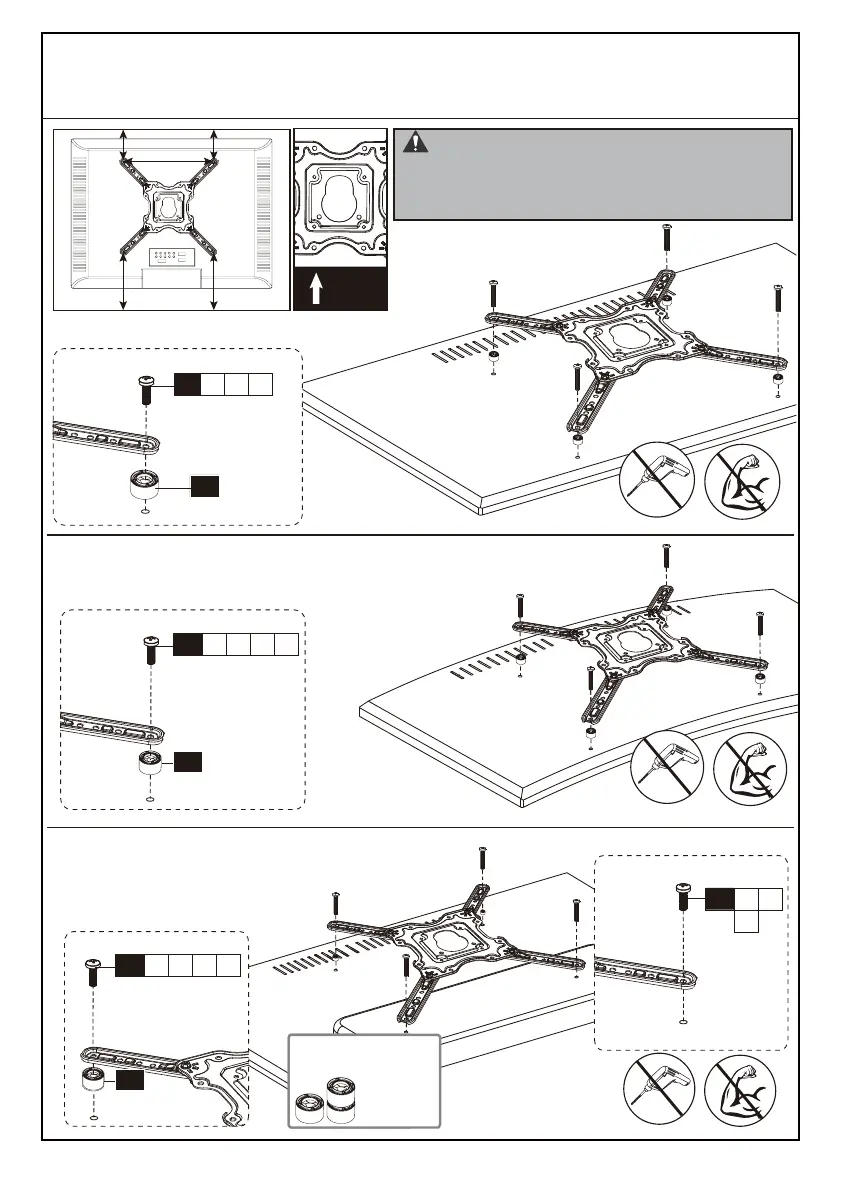

Option A (For Flat Back TV)
CAUTION: Ensure the faceplate [01A] or
faceplate [01A] with extender brackets [02] is
EQUALLY CENTERED on your TV AND
securely fastened in place.
03
(If needed)
06
UP
05
Option B (For Round Back TV)
06
03
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
06
03
06
Alternate Setups
Spacer
S1 S3 S4
S1 S3
S4
S1 S3 S4
S5
S1 S3 S4
S5
To Next Page
