Perlesmith PSXF4 - Step 5 Hang the TV onto the Front Support

Step 4 Secure Front Support to Arm Assembly
Step 3 Secure the Arm Assembly [02] to Wall Plate [01]
01
02

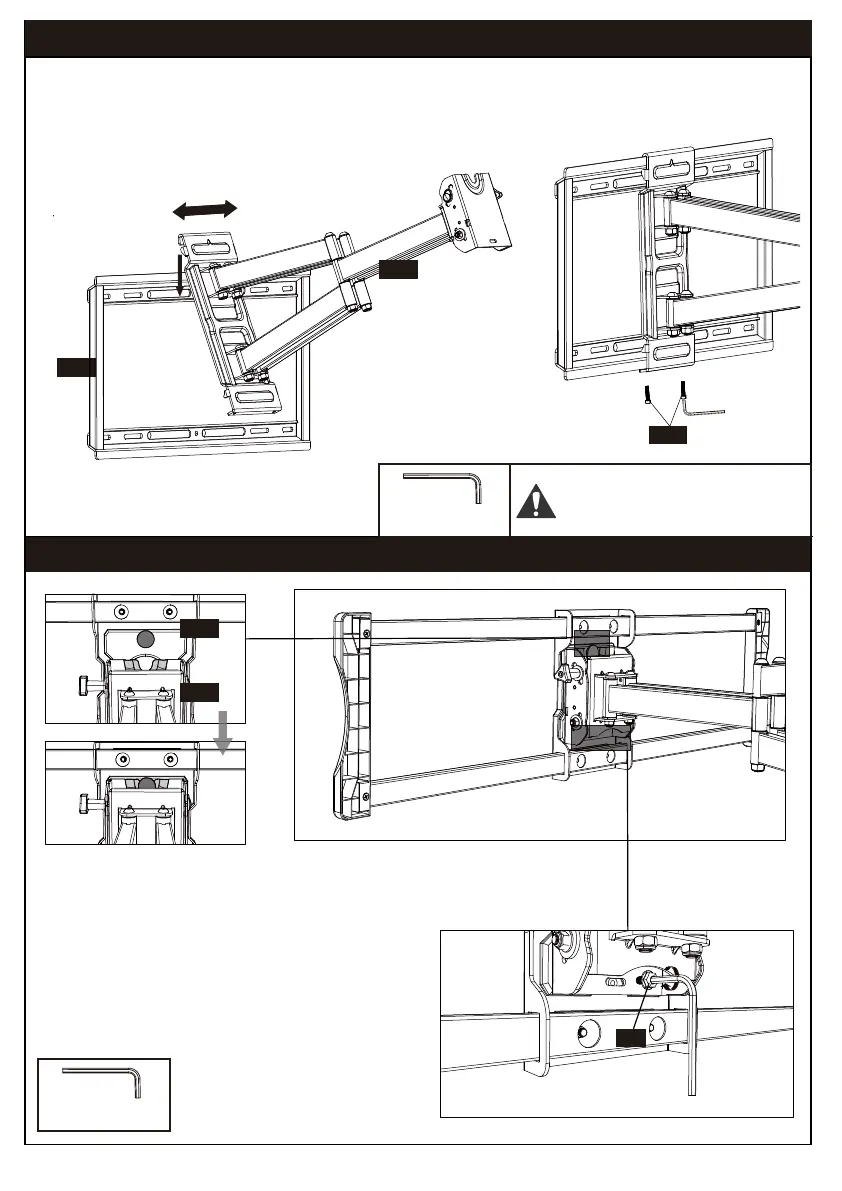

1. Hang the arm assembly [02] to wall plate [01].
2. Shift the arm assembly [02] along the wall plate [01] to your desired position.
3. Secure the arm assembly [02] to wall plate [01] using bolts [F1].
Note: The bolts [F1] need
to be tightened hard.
Allen Key
Allen Key
02
09
2.Secure the front support [09] to arm
assembly [02] using bolts [F2].
1.Make sure the big button in Front Support [09]
hangs on the hook of the arm assembly.
F1
F2
10
