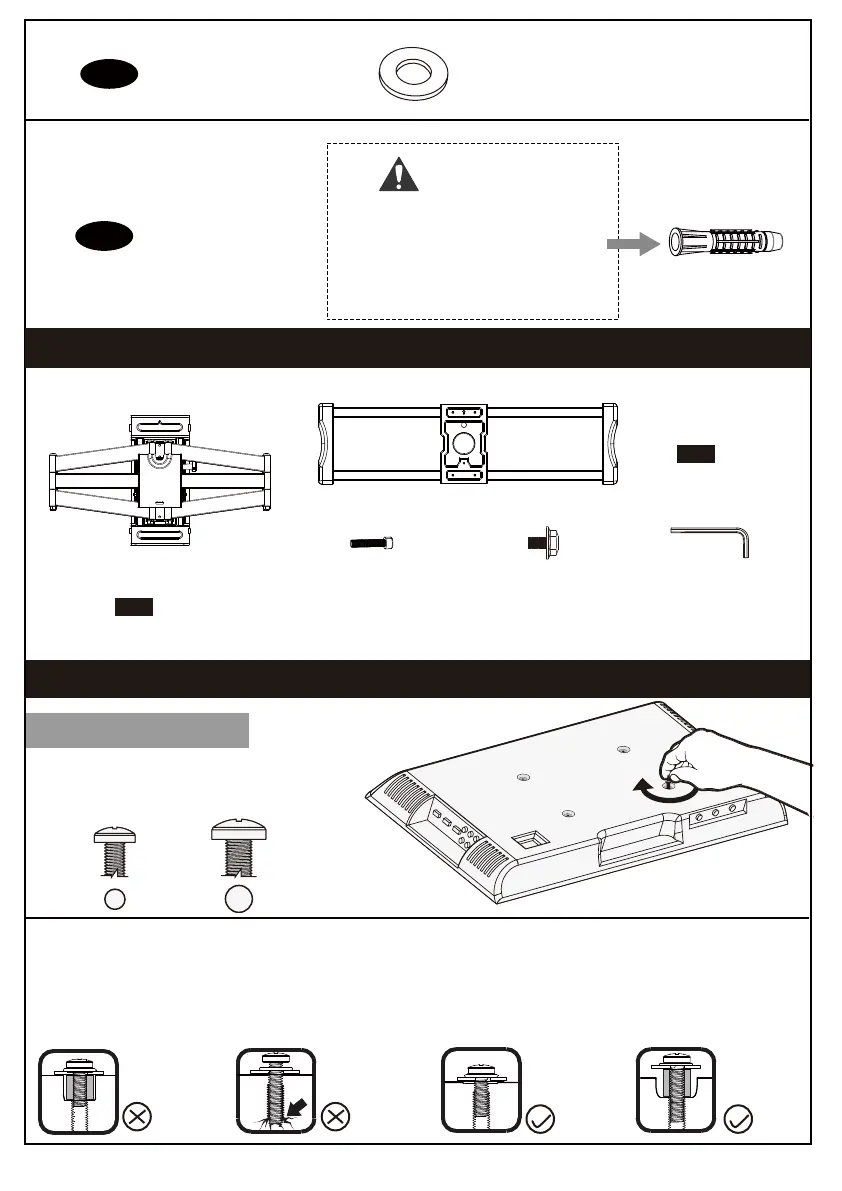

Perlesmith PSXF4 - Step 1 Secure the TV Brackets to TV; Select TV Bolts

Arm Assembly
02
x1
Front Support
09
x1
Allen Key
x1
Bolt
[F1] x2
Bolt
[F2] x1
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination.
We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short
Too Long Correct
Correct
Only one bolt size fits your TV.
Step 1 Secure the TV Brackets to TV
Select TV Bolts
M6 M8
Wall
Anchor
x6
A3
These anchors are for
concrete or brick walls
ONLY. DO NOT use them
in drywall or wood studs.
CAUTION!
Supplied Parts and Hardware for Step 3 to Step 6
Washer
M8
A2
x6
04
