WARNING:
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag
screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly
against the wall plate.
●Ensure the wall plate [01] is securely fastened to the wall before
continuing to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount
the wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Never drill into the mortar between blocks
Wall
Anchor
A3
Step 2B Solid Concrete or Concrete Block Option
2A-3
2A-4
ø7/32 in.(5.5 mm)
2 9/16 in.(65mm)
1/2 in.(13mm)
Socket Wrench
(Not included)

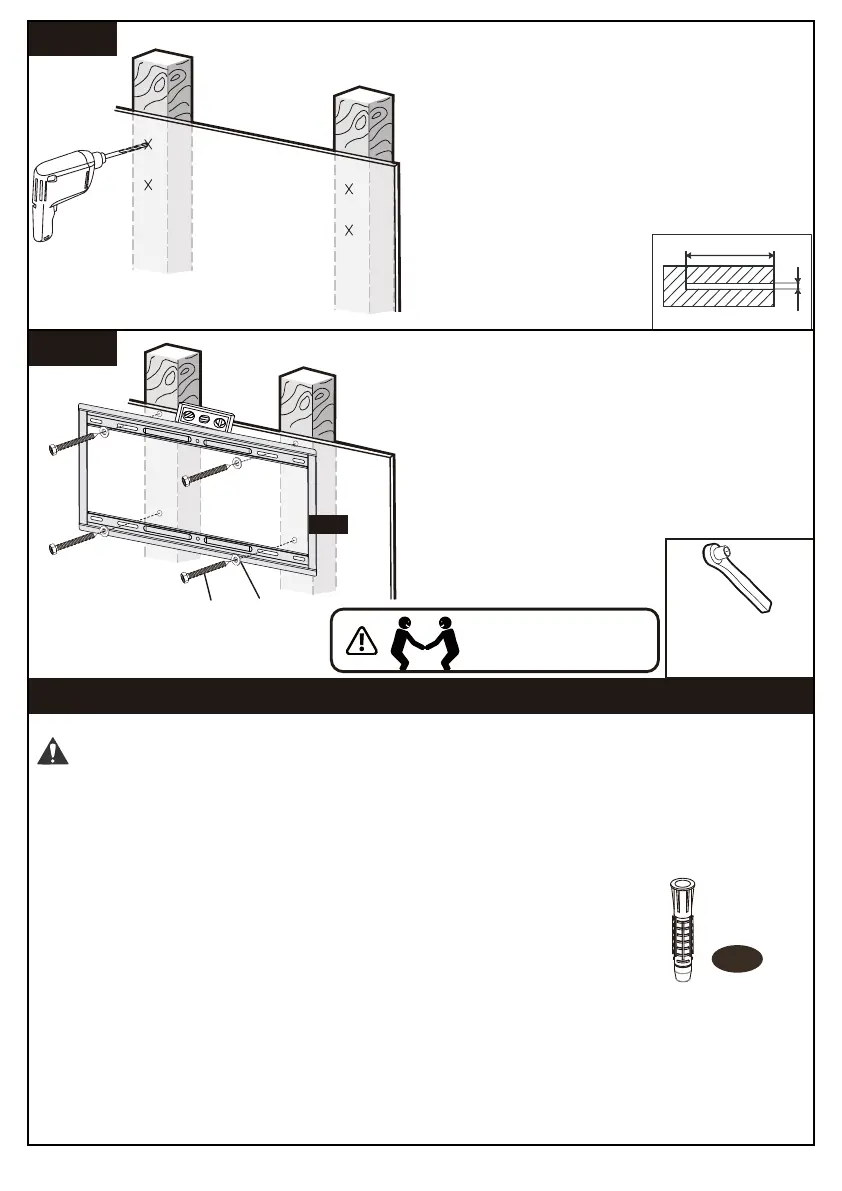

Drill 4 pilot holes using a 7/32 in.(5.5
mm) diameter drill bit. Make sure the
depth is not less than 2 9/16 in.(65mm).
Install the wall plate using lag screws
[A1] and washer [A2]. Tighten the lag
screws [A1] only until the washers
[A2] are pulled firmly against the wall
plate.
You may need
assistance with this step.
A1
A2
01
08
To Next Page
