TOE PLATE INSTALLATION
When the unit is secured in place, install the louvered toe plate. Secure louvered toe plate by snapping the
latch into the latch catch on the unit.
Refer to Figure 7 TOE-PLATE INSTALLATION ILLUSTRATION
CAUTION
The louvered toe plate must be removable for servicing. The oor cannot interfere with removal. The
louvered sections of the toe plate must not be covered or obstructed so as to prevent proper air circu-
lation.

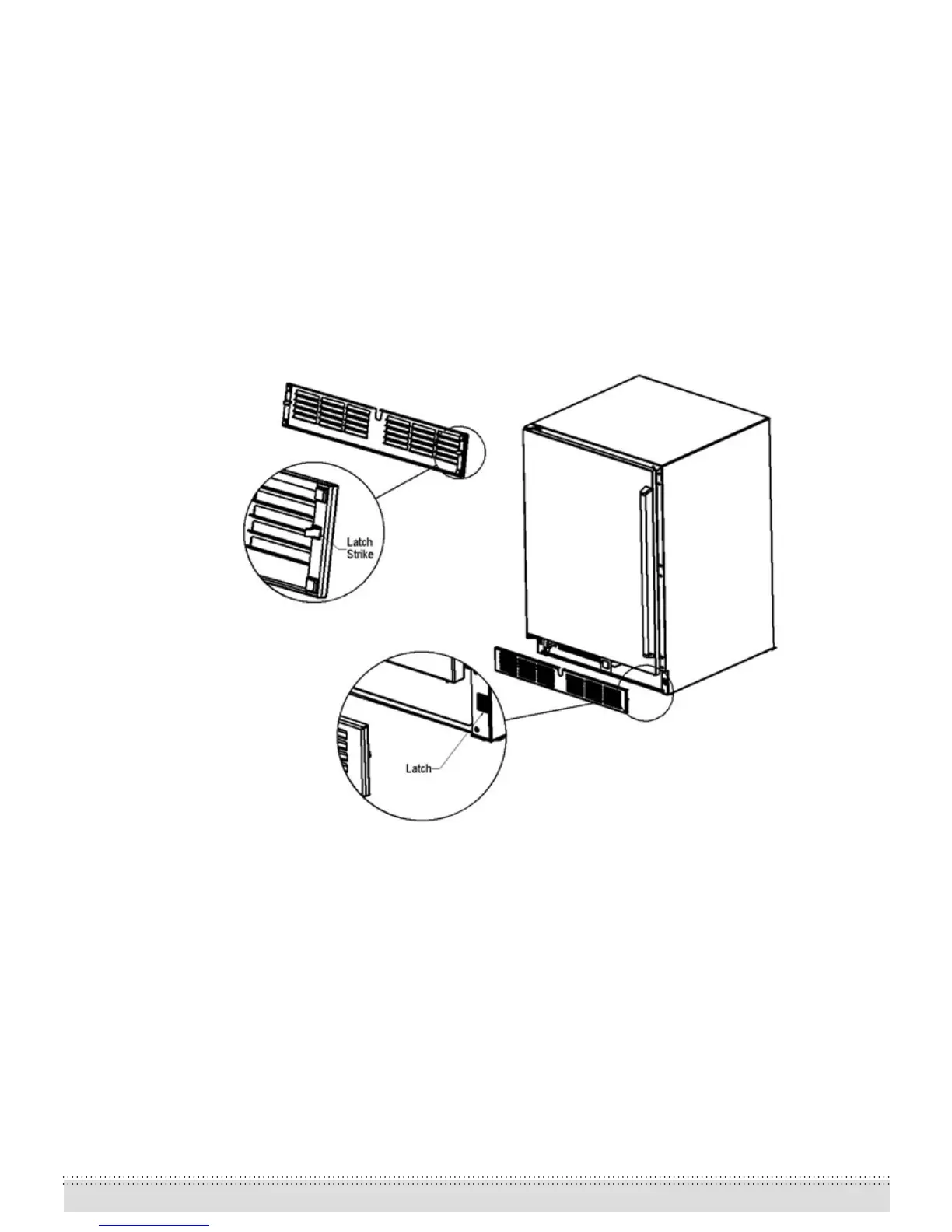

Figure 7. TOE PLATE INSTALLATION.
© 2011 24”, 48” & 72” Cabinet Installation / Operation Manual
Document No. Z2305
13
