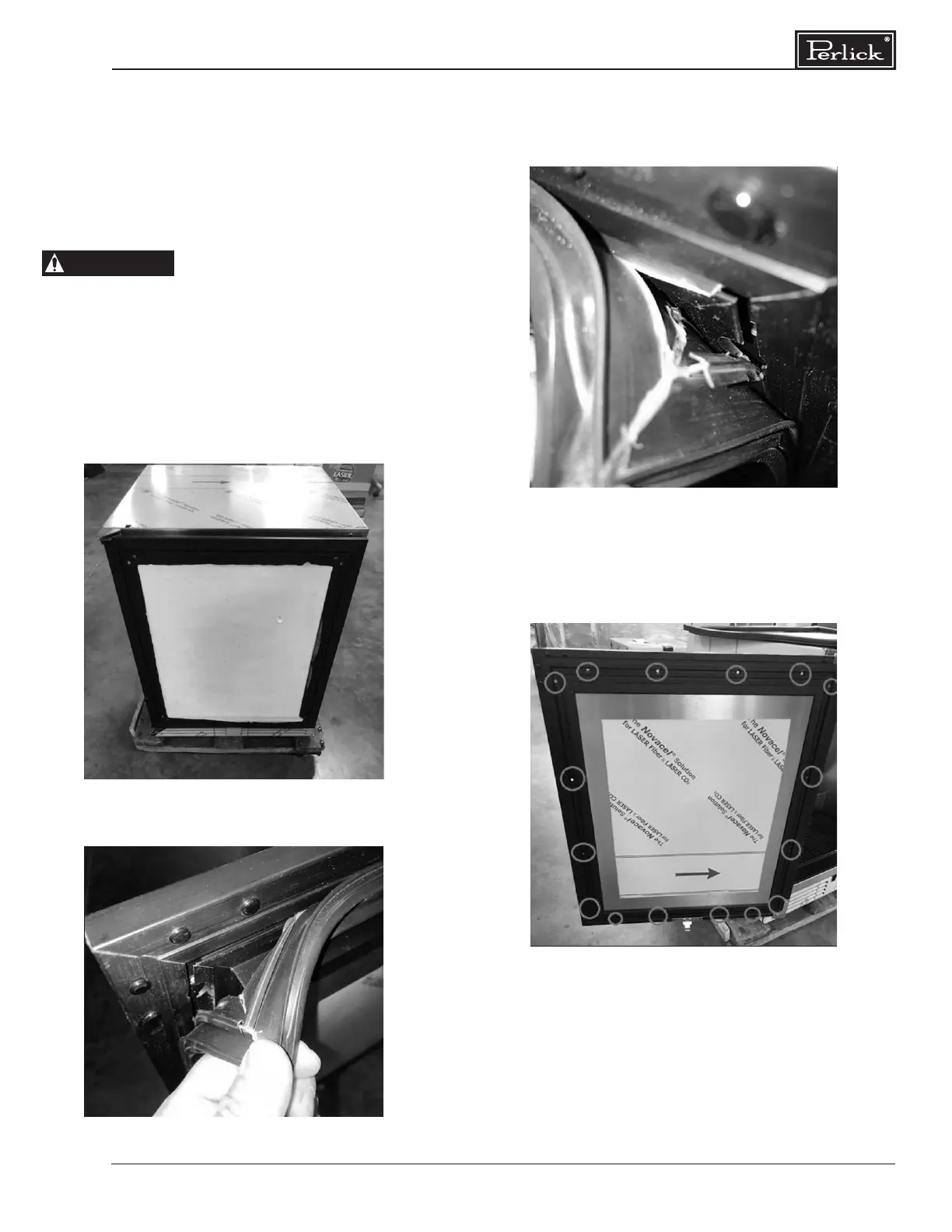

WOOD OVERLAY INSTALLATION
Before beginning installation, check all components
for proper t and nish. Handle should be installed
to the overlay prior to installing overlay to door (use
countersunk athead fasteners for handle installation.)
CAUTION
For best performance and
functionality, the overlay panels
should be 3/4” thick. The weight of the overlays
should not exceed 20 lbs for solid (-2) doors, 10
lbs for glass (-4) doors, or 10 lbs for drawer (-6)
models.
1. -2, -4 and -6 models come ready to accept wood
overlay as shown below.
2. Remove the gasket carefully starting at the corners
and avoid ripping the dart.
3. In some cases, the dart on the gasket may rip.
If this happens, replace with a new gasket.
4. With the gasket removed, the screw holes needed
to hold the overlay panel will be reveal as shown
below.
