Freezer/Commercial Chiller
ITEM
NUMBER
DESCRIPTION
ITEM
NUMBER
DESCRIPTION
1
Compressor
6
Capillary T
ube
2
Condenser
7
Heat Exchang
er
3
Condenser Fan
8
Ev
apora
tor
4
Drier
9
Evapor
ator F
an
5
Hot - Gas Bypass V
alve
10
T
emperatur
e Contr
ol
Return to
T
able of Contents

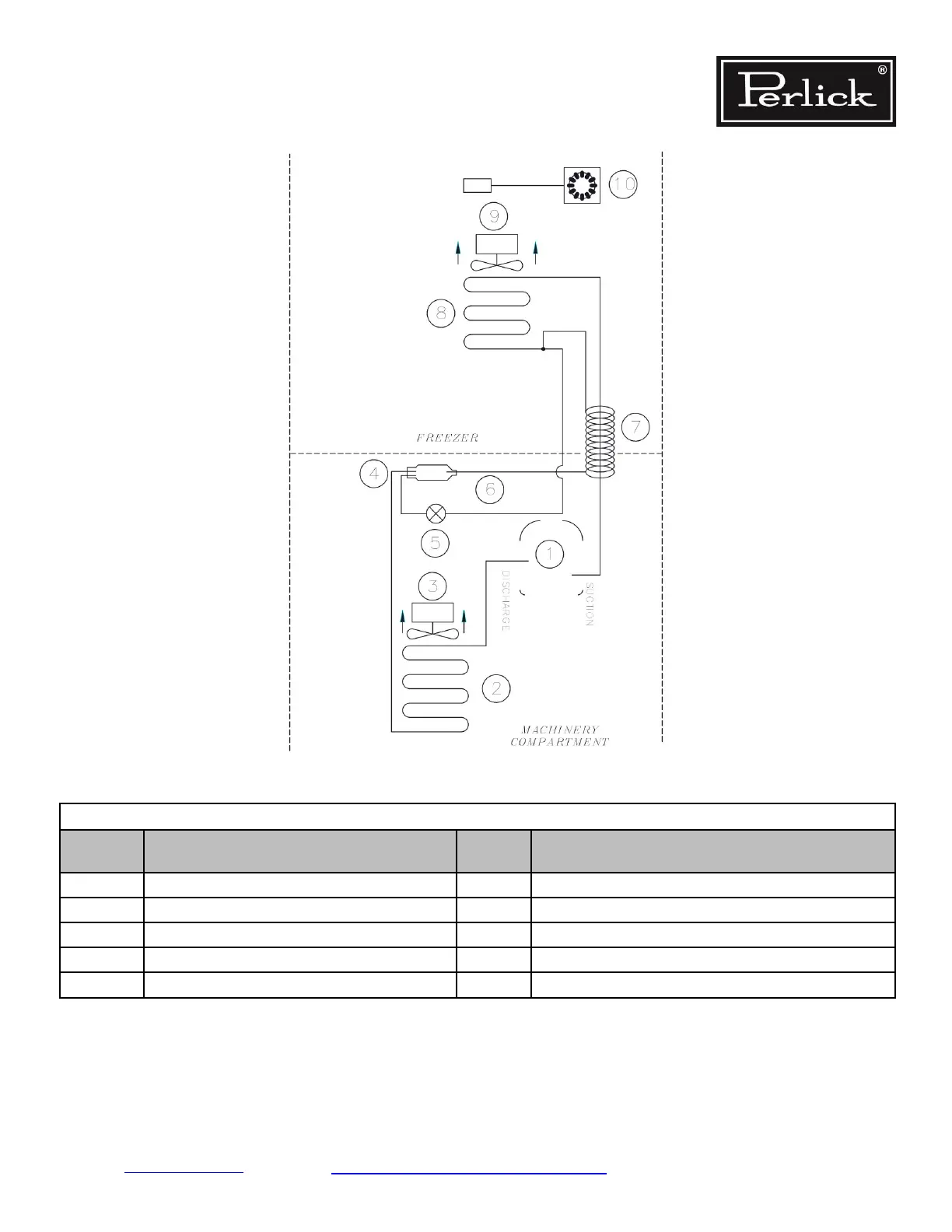

Figure 7-17
. Freezer/Commercial Chiller Ref
rigeration S
ystem Diagram
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
Refriger
ation S
ystem Repair Instructions
Page 7-17
37
39
Table of Contents
Table of Contents
3
General Information
8
Safety Information
9
Refrigeration System
10
Trouble Shooting Guide
10
Electrical System
13
Normal Operation
21
Figure 7-1. Sealing Compound at Wiring Pass-Through - Back
22
Figure 7-2. Sealing Compound at Wiring Pass-Through - Inside
23
Figure 7-3. Evaporator Condensate Drain
23
Table 7-1. System Operating Pressures
24
Figure 7-4. Process Tubes
25
Figure 7-5. Remove Shelves
25
Figure 7-7. Remove Pilaster
25
Figure 7-10. Deicing Evaporator
26
Figure 7-8. Evaporator Fan Panel Screw Locations
26
Figure 7-9. Remove Evaporator Fan Panel
26
Ambient Temperature
28
Figure 7-11. Check for Obstructions
28
Figure 7-12. Remove Front Grille
28
Figure 7-13. Clean Condenser Coils
28
Table 7-2. Compressor Data
29
Figure 7-14. Condenser Fan Mounting Hardware
30
Recharge Procedure
31
Table 7-3. C0
33
Figure 7-15. Dual Zone F-R Gen 3 Refrigeration System Diagram
36
Figure 7-16. Dual Zone Med Temp Gen 3 Refrigeration System Diagram
37
Figure 7-18. Med Temp Refrigeration System Diagram
39
8.0 Electrical System Repair Instructions
40
Table 8-1. Electrical Specifications
40
Figure 8-1. HC24RS & HC24WS Wiring Diagram
41
Wiring Diagrams
41
Figure 8-2. HC24FS Wiring Diagram
42
Figure 8-3. HP48 Signature Series Wiring Diagram
43
Electrical System
43
Figure 8-4. HP24 Signature Series Wiring Diagram
44
Figure 8-5. HP Freezers Wiring Diagram
45
Figure 8-6. HA Freezers Wiring Diagram
46
Figure 8-7. HP15 Signature Series Wiring Diagram
47
Figure 8-8. HC & HH Wiring Diagram
48
Figure 8-9. HA Wiring Diagram
49
Figure 8-10. HB24BS, HB24RS & HB24WS Wiring Diagram
50
Figure 8-11. HB24FB & HB24FS ADA Series Wiring Diagram
51
Figure 8-12. HPA & HHA Wiring Diagram
52
Figure 8-13. HC Wiring Diagram
53
Figure 8-14. HC48RS, HC48WS, HC48RW & HC48WW Wiring Diagram
54
Figure 8-15. HP24ZS/ZO Wiring Diagram
55
Figure 8-16. HP24CS/CO/DS/DO Wiring Diagram
56
Table 8-2. HA24BB, RB, WB Load Operation Modes
57
Table 8-3. HA24FB Load Operation Modes
57
Table 8-4. HB24BS, RS, WS Load Operation Modes
57
Table 8-5. HB24FS Load Operation Modes
58
Table 8-6. HC24BB, RB, RO, TB, to WB Load Operation Modes
58
Table 8-7. HC24FS Load Operation Modes
58
Hb24Fs
58
Table 8-8. HC24RS, WS Load Operation Modes
59
Table 8-9. HD24RS, WS Load Operation Modes
59
Table 8-10. HH24BO, BS, RO, RS, WO, WS Load Operation Modes
59
Hc24Rs, Ws
59
Table 8-11. HP15BO, BS, RO, RS, TO, TS, HK15BO, RO, to Load Operation Modes
60
Table 8-12. HP15WO, WS, HK15WO Load Operation Modes
60
Table 8-13. HP24BO, BS, RO, RS, TO, TS, HK24BO, RO, TO, HM24RO, to Load Operation
61
Table 8-14. HP24WO, WS, HK24WO Load Operation Modes
61
Table 8-15. HP24FO, FS, HK24FO Load Operation Modes
61
Table 8-16. HP24CO, CS, DO, DS, HK24CO, DO, HM24CO Load Operation Modes
62
Table 8-17. HP24ZO, ZS, HK24ZO, HM24ZO Load Operation Modes
63
Table 8-18. HC48RS, RW, WS, WW Load Operation Modes
64
Table 8-19. HP48WO-S, WW-S Load Operation Modes
64
Electronic Controller
65
Table 8-20. Factory Temperature Settings
66
Hc24Fs
66
Hk24Zo
67
Hp48Wo-S, Hp48Ww-S
68
Remove Evaporator Fan Panel
69
Figure 8-17. Temperature Probe
71
Table 8-21. Temperature Resistance Values
71
Figure 8-18. Interior LED Light
72
Step 2. Step
72
Step
73
Step
74
Figure 9-1. Door Removal
75
Table 9-1. Door Hinges
75
Step
75
Figure 9-2. Hinge Removal
76
Step
76
Step
77
Step
78
Step
79
Step
80
Step
81
Step
82
Step
83
Step
84
Replacement Parts
85
HP24 Low Temperature Cabinets - Evaporator Compartment Service Parts
86
HP24 Medium Temperature Cabinets - Condenser Compartment Service Parts
87
HP24 Low Temperature Cabinets - Condenser Compartment Service Parts
88
Condenser Fan
89
HP24 Cabinets – Door Service Parts
90
HP24 Cabinets - Shelving Service Parts
91
HP24 Cabinets - Drawer Service Parts
92
HP15 Cabinets – Evaporator Compartment Service Parts
93
HP15 Cabinets - Condenser Compartment Service Parts
94
HP15 Cabinets - Door Service Parts
96
HP15 Cabinets - Shelving Service Parts
97
HP15 Cabinets - Drawer Service Parts
98
HA24 Medium Temperature Cabinets - Evaporator Compartment Service Parts
99
HA24 Low Temperature Cabinets - Evaporator Compartment Service Parts
100
HA24 Medium Temperature Cabinets - Condenser Compartment Service Parts
101
Condenser
102
HA24 Low Temperature Cabinets - Condenser Compartment Service Parts
103
Condenser Fan
104
HA24 Cabinets - Door Service Parts
105
HA24 Cabinets - Shelves Service Parts
106
HA24 Cabinets - Drawers Service Parts
107
HH24 Cabinets - Evaporator Compartment Service Parts
108
HH24 Cabinets - Condenser Compartment Service Parts
109
HH24 Cabinets - Door Service Parts
111
HH24 Cabinets - Shelving Service Parts
112
Compartment Service Parts
113
Compartment Service Parts
114
HC24 Cabinets - Door Service Parts
116
HC24 Cabinets - Shelving Service Parts
117
HC24 Cabinets - Drawer Service Parts
118
HC24RS & HC24WS Cabinets - Evaporator Compartment Service Parts
119
HC24FS Cabinets - Evaporator Compartment Service Parts
120
HC24RS &HC24WS Cabinets - Condenser Compartment Service Parts
121
HC24FS Cabinets - Condenser Compartment Service Parts
122
HC24 Commercial Cabinets - Door Service Parts
123
HC24 Commercial Cabinets - Shelving Service Parts
124
