Return to Table of Contents

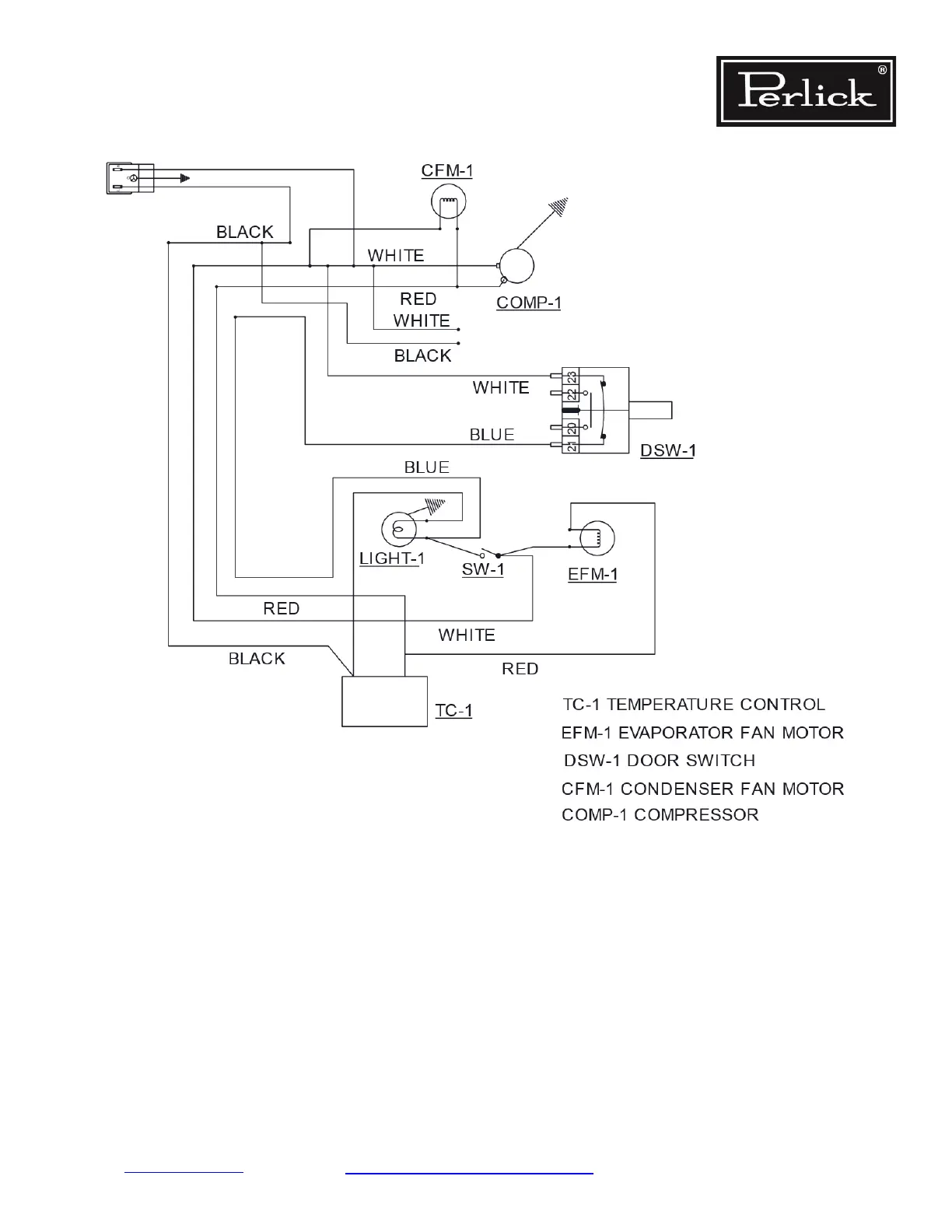

Figure 8-10. HB24BS, HB24RS & HB24WS Wiring Diagram
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
Electrical System Repair Instructions Page 8-11

Table of Contents
