Safety-Temp Feature
The Safety-Temp feature assures the fi nal rinse cycle is always at a consistent minimum of 180
degrees.
How it works: The Safety-Temp function operates off the fi fth cam (labeled “SafeTtemp”) on the timer
assembly. When the cam timer assembly completes the wash cycle, and approaches the fi nal rinse
portion of the cycle, the Safety-Temp micro switch will drop into the cam slot and pause the cam timer
assembly if the booster heater has not reached 180 degrees. The machine will remain in wash cycle
mode until 180 degree rinse temperature is met, and at this time the cam timer will advance automati-
cally into the rinse cycle and dispense 180 degrees rinse water over the dishes.
Note: If the Safety-Temp cam is not to be used, it becomes a spare cam.
Safety-Temp Installation Instructions
1. Remove the 4 cam timer assembly (note wire colors and wire placement for all 4 cam timer micro
switches) and install the 5 cam timer in its place.
2. Place all wires removed from 4 cam timer assembly in the exact position on the 5 cam timer
assembly.
3. The cam timer motor receives (1) yellow wire and (1) white wire (re-connect the yellow wire only
from the glasswasher harness to the motor).

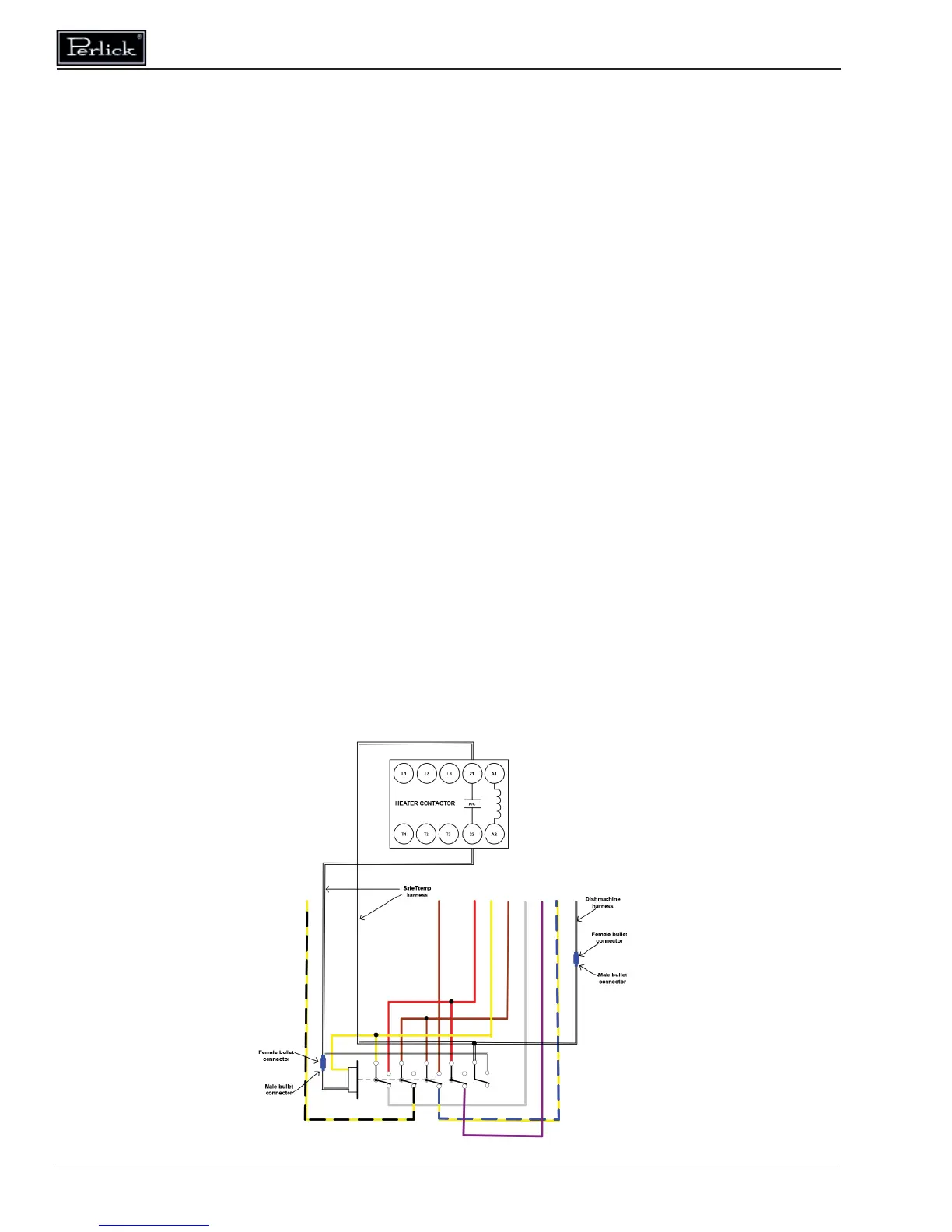

4. The Safety-Temp 5 cam timer assembly kit includes two white harnesses – connect the white wire
with the female bullet connector to the timer motor, the stripped end to the #22/NC on the contactor,
and the spade end to the center terminal on the fi fth micro switch.
5. Connect white wire with male bullet connector from the kit to the white wire with female bullet con-
nector coming from glasswasher harness, stripped end to #21/NC on contactor, and the spade end to
the top terminal on the fi fth micro switch.
