Perlick SHALLOW-DEPTH Series Service Manual

Freezer/Commercial Chiller
ITEM
NUMBER
DESCRIPTION
ITEM
NUMBER
DESCRIPTION
1 Compressor 6 Capillary Tube
2 Condenser 7 Heat Exchanger
3 Condenser Fan 8 Evaporator
4 Drier 9 Evaporator Fan
5 Hot - Gas Bypass Valve 10 Temperature Control
Return to Table of Contents

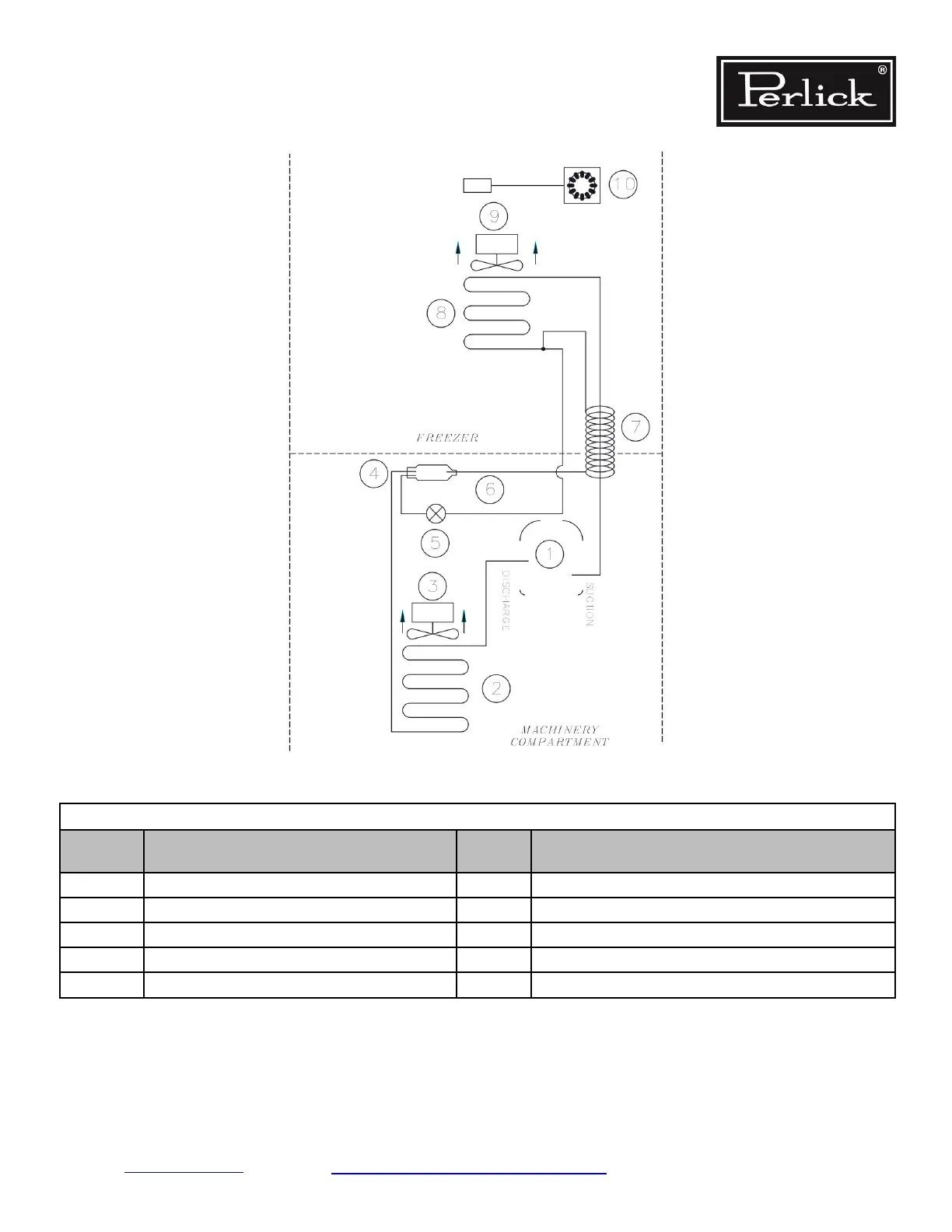

Figure 7-17. Freezer/Commercial Chiller Refrigeration System Diagram
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
Refrigeration System Repair Instructions Page 7-17
