Perlick SHALLOW-DEPTH Series Service Manual

Dual Zone: Refrigerator/Wine, Wine/Wine
ITEM
NUMBER
DESCRIPTION
ITEM
NUMBER
DESCRIPTION
1 Compressor 9 Evaporator Fan (Lower)
2 Condenser 10 Temperature Control
3 Condenser Fan 11 Liquid Line Solenoid (Upper)
4 Drier 12 Capillary Tube (Upper)
5 N/A 13 Heat Exchanger (Upper)
6 Capillary Tube (Lower) 14 Evaporator (Upper)
7 Heat Exchanger (Lower) 15 Evaporator Fan (Upper)
8 Evaporator (Lower)
Return to Table of Contents

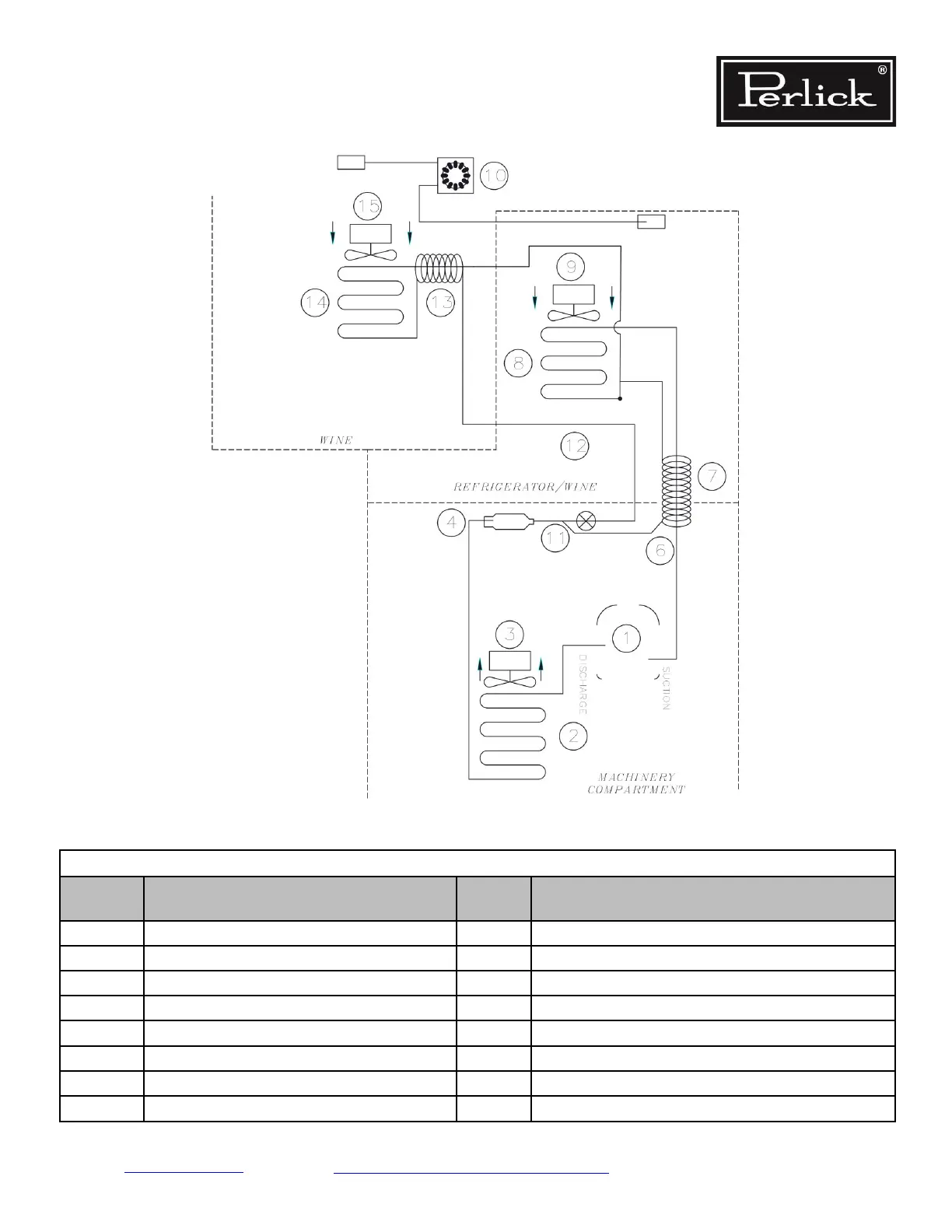

Figure 7-16. Dual Zone Med Temp Gen 3 Refrigeration System Diagram
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
Refrigeration System Repair Instructions Page 7-16
