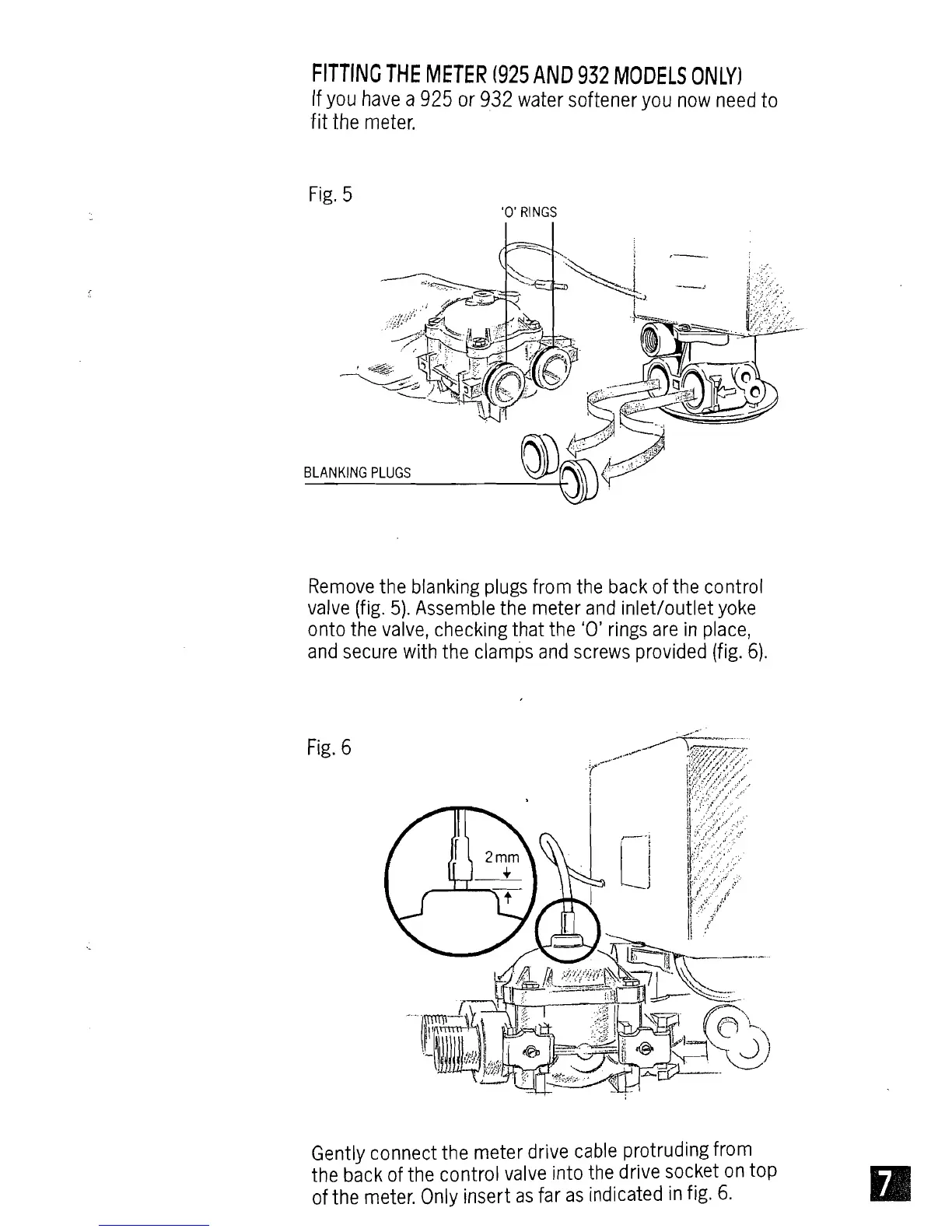

FITTING

THE

METER

(925

AND

932

MODELS

ONLY)

If

you

have

a

925

or

932

water

softener

you

now

need

to

fit

the

meter.

Fig.

5

'0'

RINGS

BLANKING

PLUGS

Remove

the

blanking

plugs

from

the

back

of

the

control

valve

(fig.

5).

Assemble

the

meter

and

inlet/outlet

yoke

onto

the

valve,

checking

that

the

'0'

rings

are

in

place,

and

secure

with

the

clamps

and

screws

provided

(fig.

6).

Fig.

6

Gently

connect

the

meter

drive

cable

protruding from

the

back

of

the

control

valve

into

the

drive

socket

on

top

of

the

meter.

Only

insert

as

far

as

indicated

in

fig.

6.
