3 - INSTALLATION

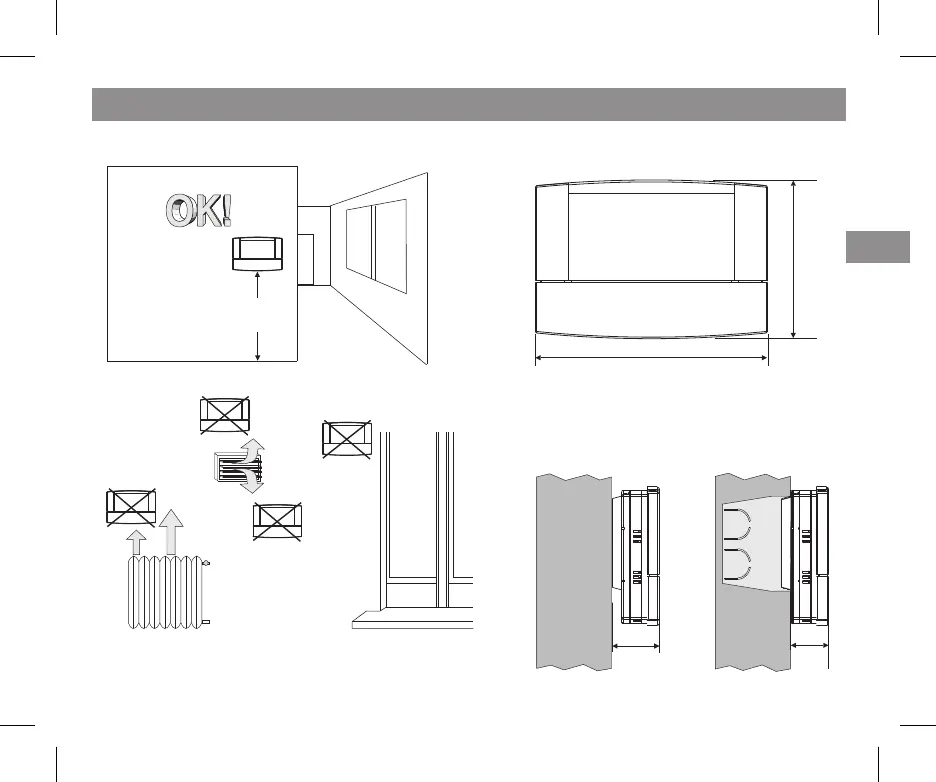

3.1 - INSTALLATION EXAMPLE
Install the thermostat preferably at a height of 1.50 to 1.60 m from the
floor, far from sources of heat, air inlets, doors or windows and
anything that may alter its operation.
Installed to the wall
Installed to the wall
on a recessed box
(503-type)
3.2 - OVERALL DIMENSIONS
h 1,5 m
27,6
22
82
120
