3 - INSTALLATION

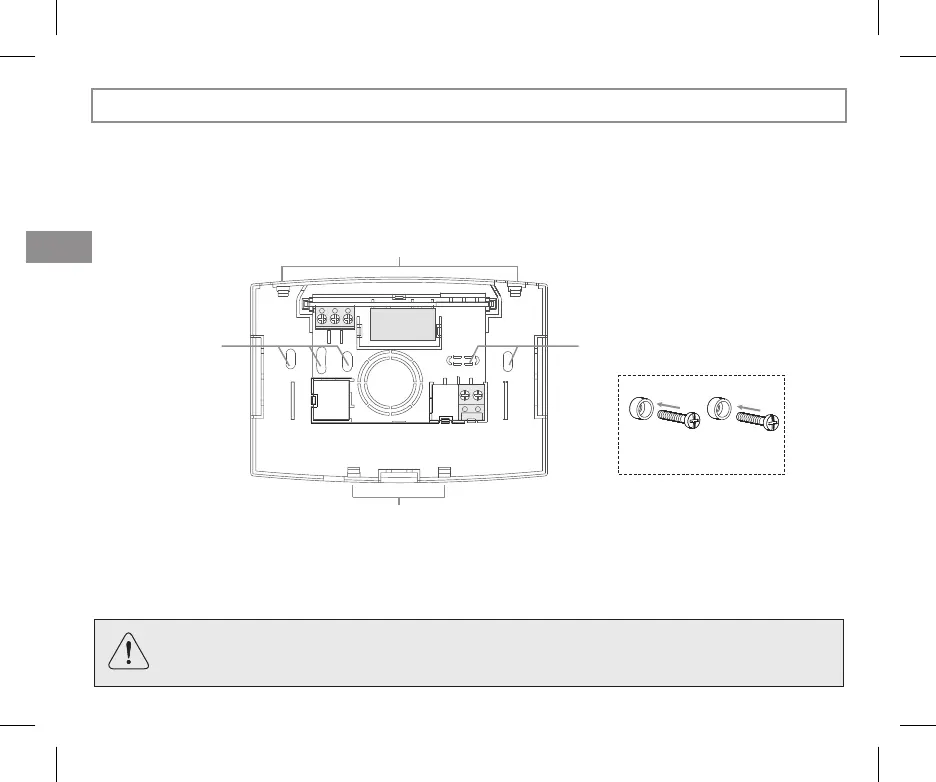

3.3 - FASTENING THE WALL-MOUNTED BASE
A fastening holes of the base: mounted to the wall, rounded or rectangular recessed box
C fastening teeth of the thermostat
D screws to fasten the wall-mounted base to the rounded or rectangular recessed box and insulating washers
-
-
-
B corrugated cable duct, rounded or rectangular recessed box-
To ensure the thermostat is fitted correctly to the wall-mounted base, the latter must not be bent due to the screws
being tightened too much to the rounded or rectangular recessed box.


Disconnect the 230V~ mains voltage
A
Fasten the base of the thermostat with the screws supplied: to the wall, to the rounded or rectangular recessed box via the relative
paired holes ( ).
If the thermostat base is to be fastened onto a metal wall, apply the two special insulating washers to the two screws.
AA
C
C
B
3
2
1
67 8 9
4
5
D
