3 - INSTALLATION

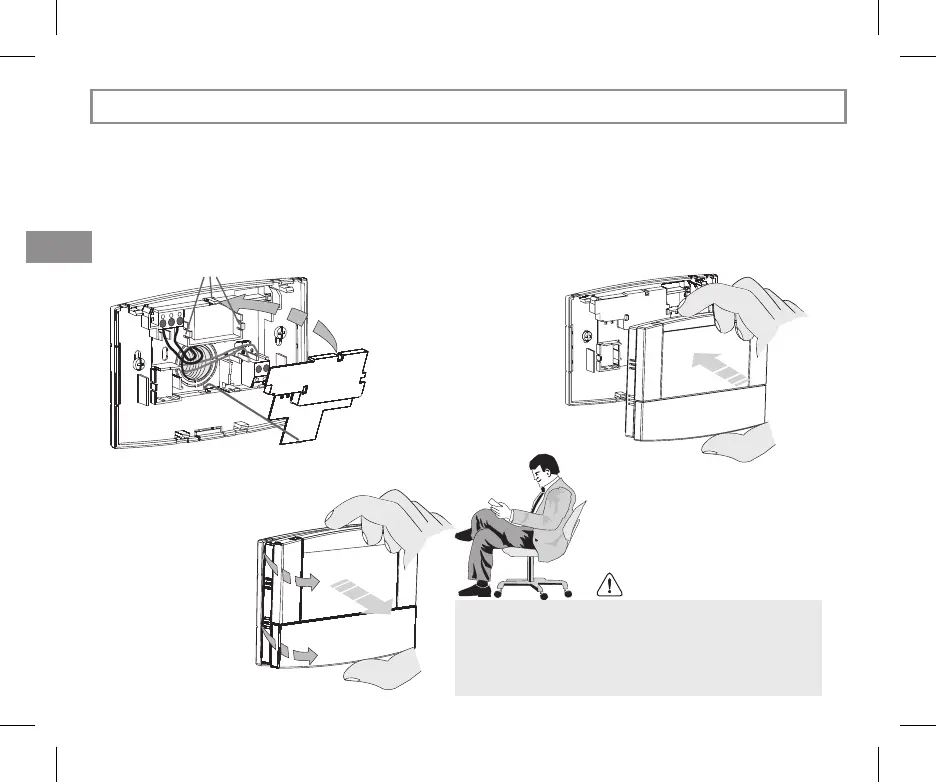

Attach the cable cover by inserting tooth into the relative slot of the
base, then fasten it to the hooks bypressing it lightly.
Use a small screwdriver to lever each hook soas to remove the cover.
GH
I
I
G
H
I
1°
Easy Programming
All the settings can be made before securing
the thermostat to the wall-mounted base.
This allows you to sit comfortably while
programming the settings.
Fasten the thermostat onto the wall-mounted base
ensuring to insert the contacts correctly, then press
lightly until you hear the fastening teeth click into
place onto the base.
In order to remove the
thermostat from the
wall-mounted base,
hold it as shown in the
diagram, then pull out-
wards by turning it to the
right.
3°
Caution!
If the thermostat is programmed before being fastened to the wall-
mounted base, once installation is completed, the indicator on the
display (off or blinking) may not correspond to the actual state of the
relay. Within
ON
after having fastened the thermostat to
the wall-mounted base, the relay will be activated in accordance with
the indication displayed (off or blinking).
1 minute (max)
ON
3.5 - PROCEDURE TO FASTEN OR REMOVE THE THERMOSTAT TO/FROM THE WALL-MOUNTED BASE
wall-mounted base
2°
To Next Page
