PRACTICAL INFORMATION

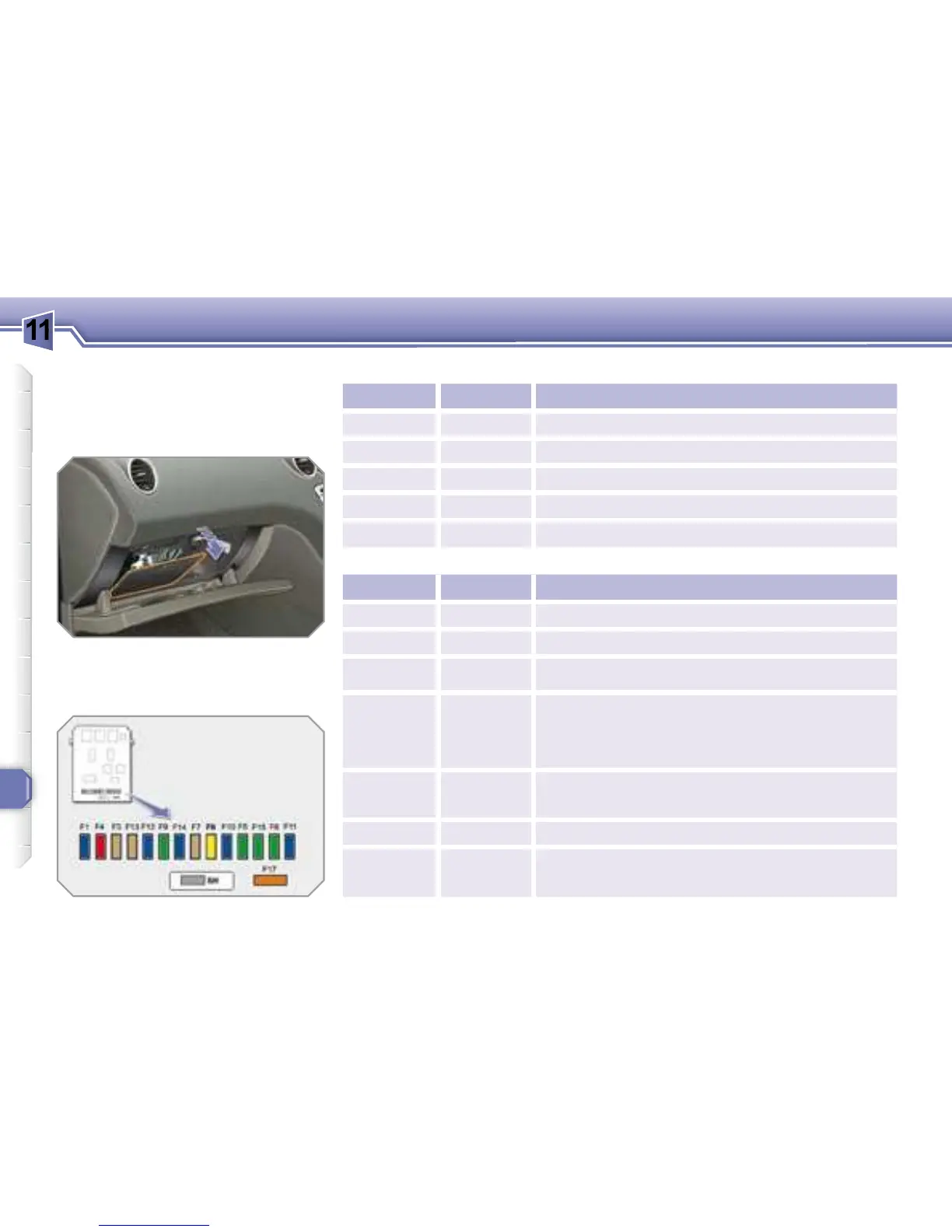

Fascia fuses
The fuse box is placed in the lower sec-
tion of the fascia (left-hand side).
Access to the fuses
refer to the paragraph "Access to
the tools".
Fuse tables
Fuse N° Rating Functions
G36 - Not used.
G37 5 A Trailer fuse box.
G38 30 A Driver's seat memory unit.
G39 30 A Trailer fuse box supply.
G40 30 A Hi-Fi amplifi er.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Air bags and pretensioners control unit.
F4 10 A
Clutch pedal and dual-function brake switches,
electrochromatic interior mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.
F5 30 A
Front one-touch electric windows, folding mirrors
supply, glass panoramic roof shutter.
F6 30 A Rear one-touch electric windows.
F7 5 A
Front and rear courtesy lights, map reading lights,
rear reading lights, sun visor lighting, glove box
lighting, portable lamp.
