Controls

7 - 3

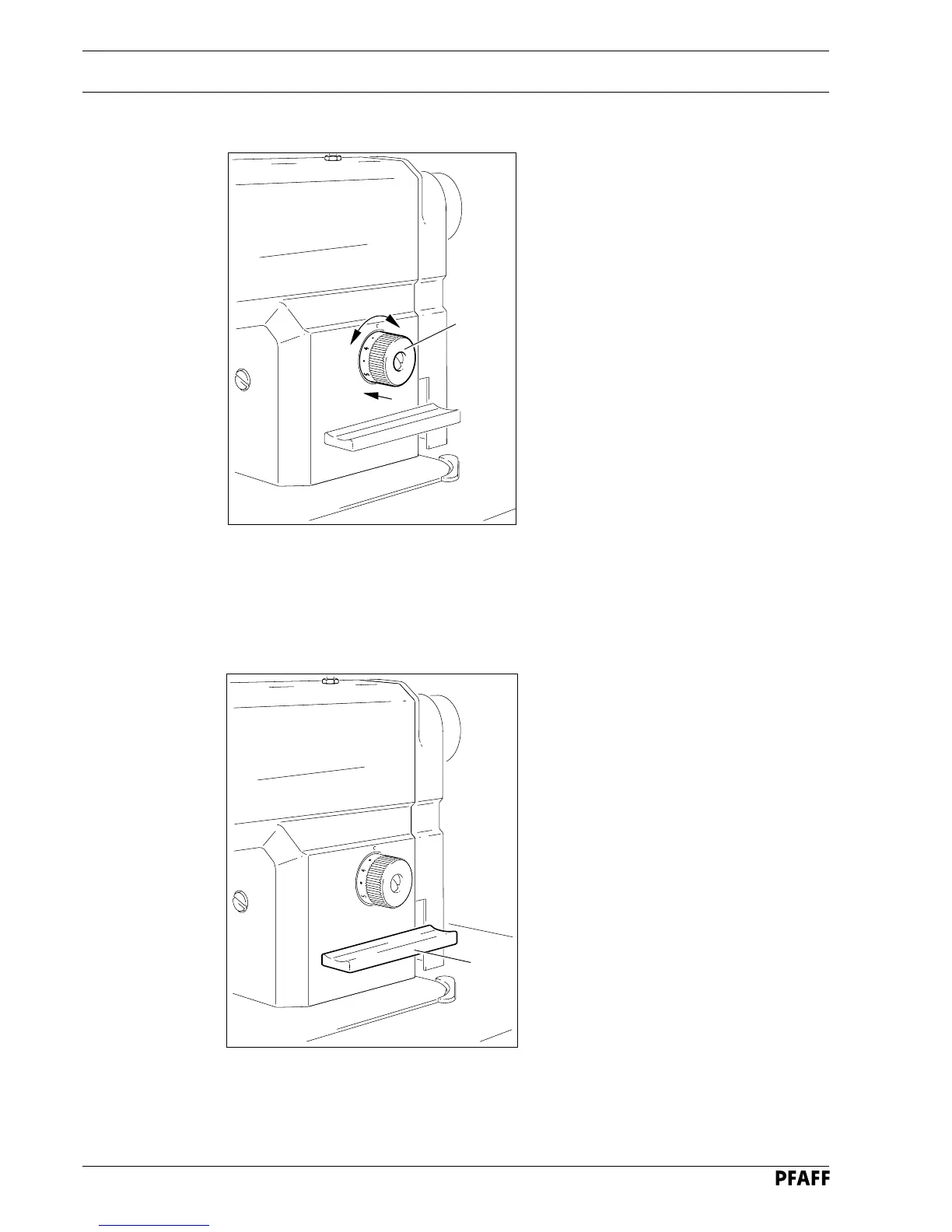

7.05 Feed regulator disk

● The stitch length can be set by

simultaneously applying pressure to

disk 1 and turning it to the desired

setting.

7.06 Reverse feed lever

● For reverse sewing press lever 1.

Fig. 7 - 06

Fig. 7 - 05
