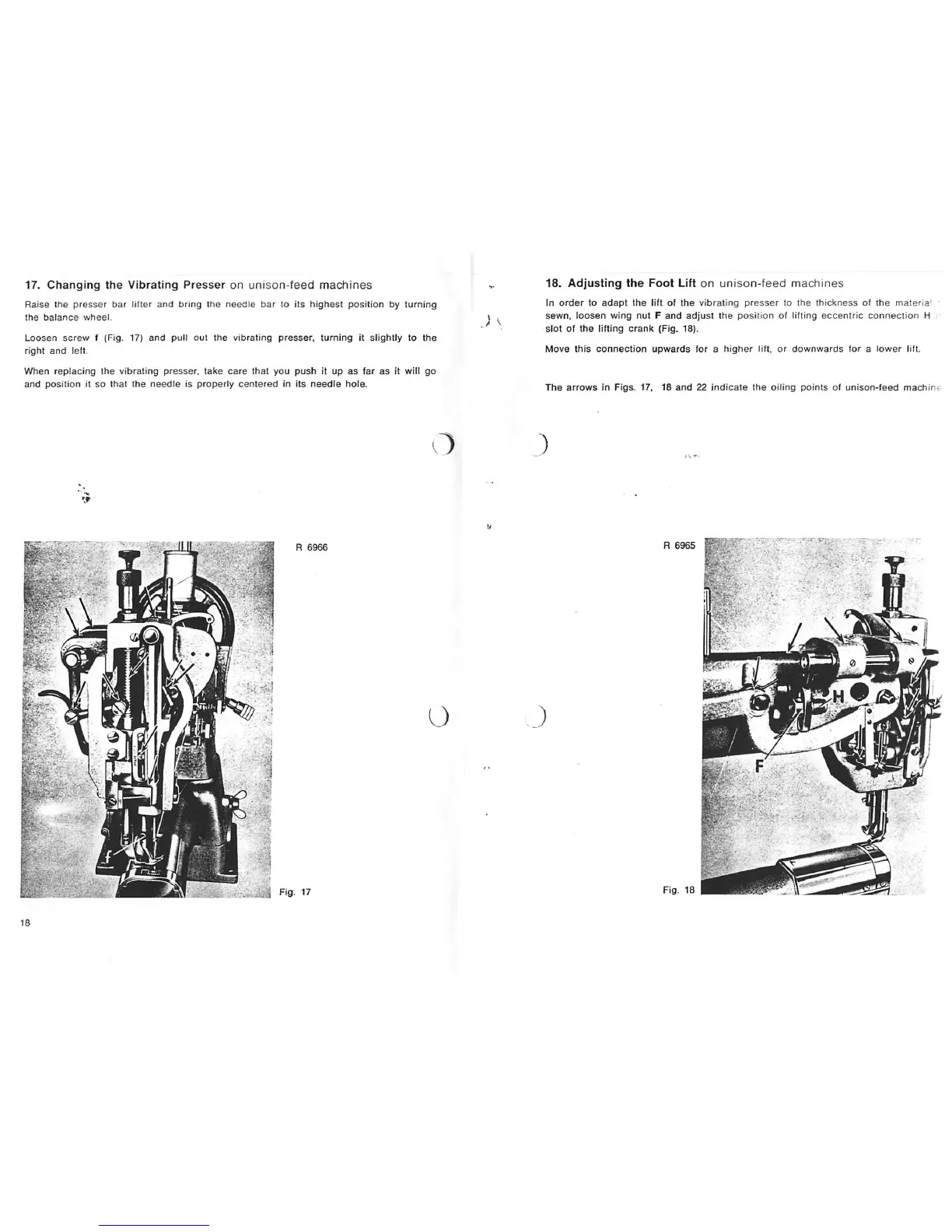

17.
Changing
the
Vibrating
Presser
on
unison-feed
machines
Raise
the
presser
bar
lifter
and
bring
the
needle
bar
to its
highest
position
by
turning
the
balance
wheel.
Loosen
screw
f
(Fig.
17)
and
pull
out
the
vibrating
presser,
turning
it
slightly
to
the
right
and
left.
When
replacing
the
vibrating
presser.
take
care
that
you
push
it
up
as
far
as
it will
go
and
position
it
so
that
the
needle
is
properly
centered
in its
needle
hole.
-mm
K.
'
-.M
m
F»0-
•'7
18.
Adjusting
the
Foot
Lift
on
unison-feed
machines
In
order
to
adapt
the
lift of
the
vibrating
presser
to
the
thickness
of
the
materia'
sewn,
loosen
wing
nut
F
and
adjust
the
position
of lifting
eccentric
connection
H
slot
of
the
lifting
crank
(Fig.
18).
Move
this
connection
upwards
for a
higher
lift,
or
downwards
for a
lower
lift.
The
arrows
in
Figs.
17, 18
and
22
indicate
the
oiling
points
of
unison-feed
machine
R
6965
t, -
Fig.
18
