Mounting and commissioning the machine
8 - 3

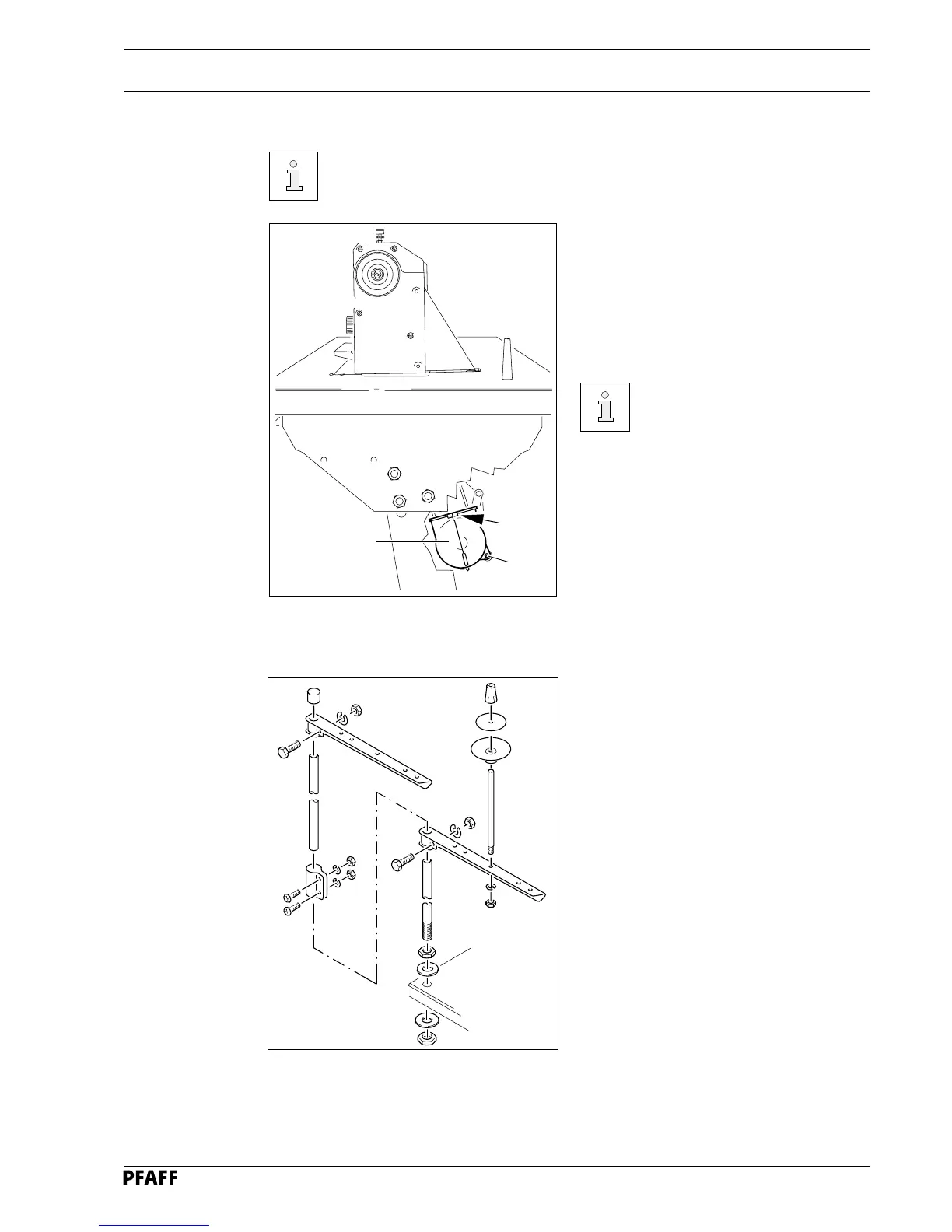

8.01.04 Mounting the lower V-belt guard
This step is eliminated for integrated sewing motors.
● Align belt-guard 1 in such a way that both
the motor pulley and the V-belt run
freely.
● Tighten screws 2.
A quick motor is shown in
Fig. 8-04. If another motor is
used, carry out this step
according to the instructions in
the motor instruction manual.
Fig. 8 - 04
8.01.05 Mounting the spool holder
● Mount the spool holder as shown in
Fig. 8-05.
● Insert the spool holder into the hole in
the table top and fasten it with the nuts
enclosed.
Fig. 8 - 05
2
2
1
