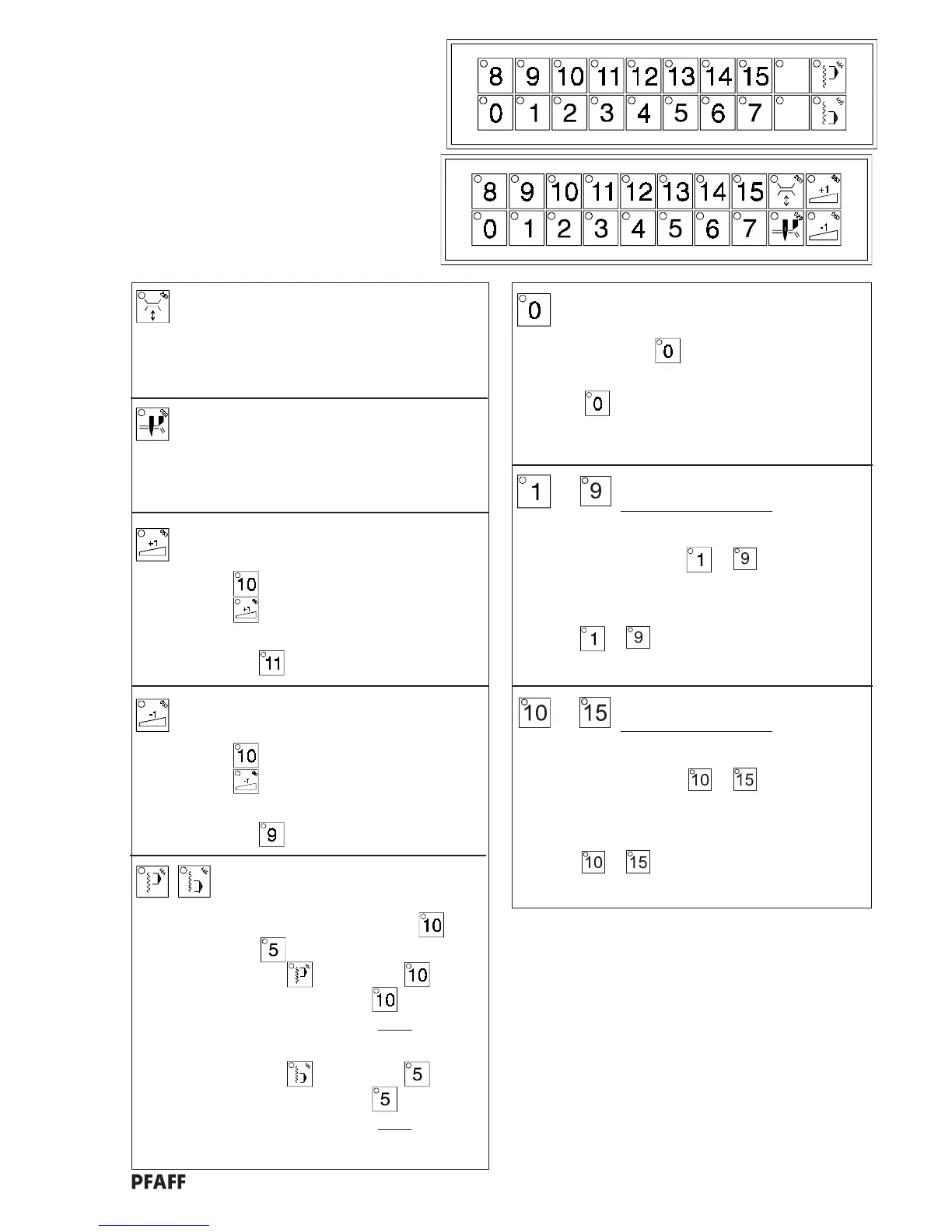

Key panel -2/45
(Key activ = LED on)
Key panel -11/43; -11/45; -13/45
Tape brake on/off (optional)
This key is also on the -11/43, -11/45 and -13/45
even when there is no tape brake installed.
In this case it has no function whatsoever.
The tape brake can be installed at a later date.
Fullness 0
Sewing without fullness
By pressing the
key you switch to
“sewing without fullness”.
The key is activated automatically when
the machine is switched on.
(except on -2/45)
Numbered keys for fullness levels
Basic stitch length: 4 mm
By pressing one of the keys to you switch to the
basic stitch length of 4 mm.
With keys to , the fullness levels set with the
potis “1” to “9” can be called up.
to
Numbered keys for fullness levels
Basic stitch length: 3 mm
By pressing one of the keys
to you switch to the
basic stitch length of 4 mm.
With keys
to , the fullness levels set with the
potis “10” to “15” can be called up.
to
Edge trimmer on/off
(only on -13/45)
This key is also on the other sub-classes but
it is without function.
The edge trimmer cannot be installed later.
for setting 2 fullness levels which can be
switched to and from with the knee lever.
(only -2/45)
Example: if you wish to switch between key
and key .
l Press the key, press the key
- The fullness level of the
key is
now programmed as the
upper
gathering level.
l Press the key, press the key
- The fullness level of the
key is
now programmed as the
lower
gathering level.
for switching from a numbered key to the full-
ness level of the next lowest numbered key.
Example: the
key is activated (LED on)
the key is pressed
- Machine switches to the fullness level
of key
for switching from a numbered key to the full-ness
level of the next highest numbered key.
Example: the key is activated (LED on)
the key is pressed
- Machine switches to the fullness level
of key
