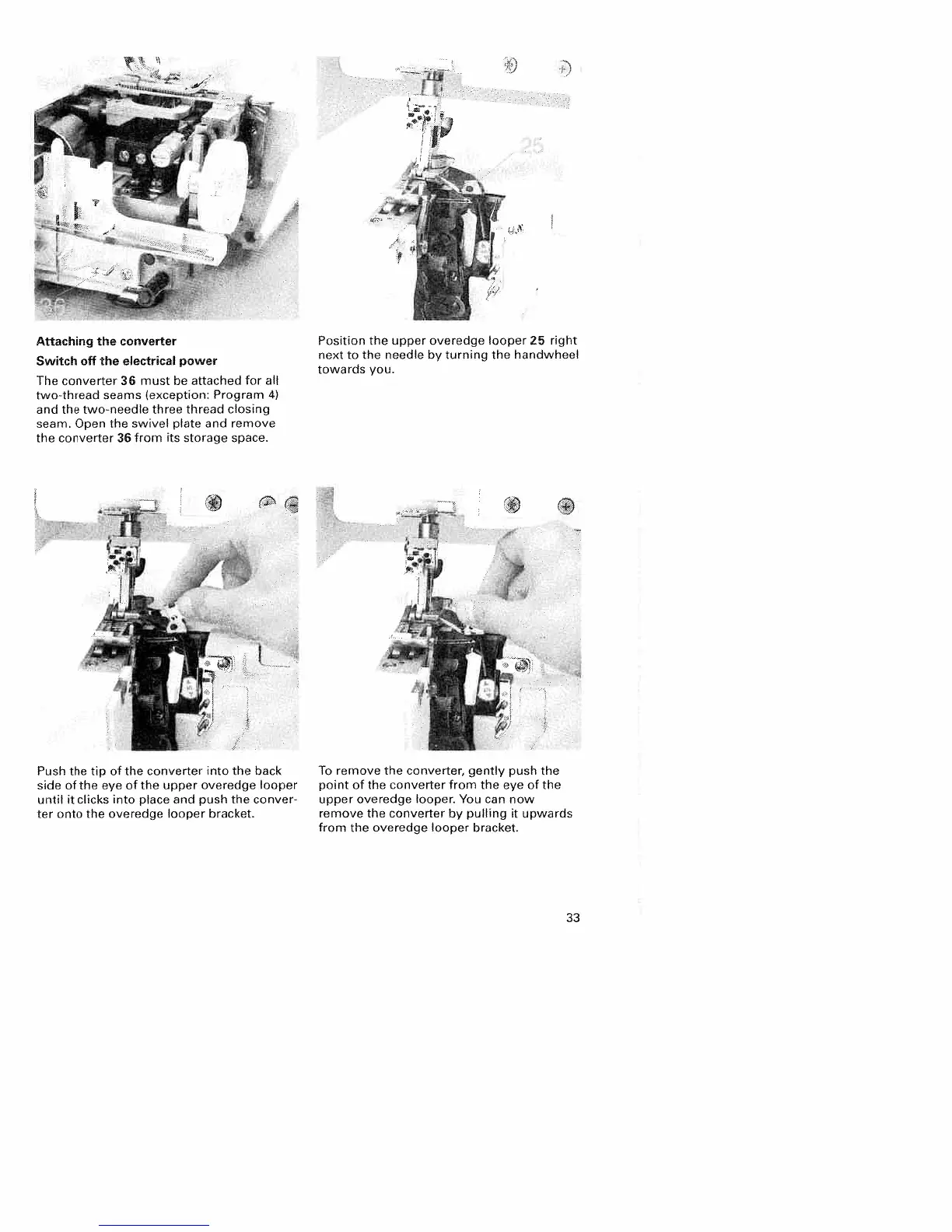

Switch
off the eIectrcaI power
The converter 36 must be
attached for all
twothread seams (exception:
Program
4)
and the
twoneedle three thread
closing
seam. Open the
swivel plate and remove
the converter 36 from its
storage space.
01
I
Push
the tip
of the converter into the back
side of the
eye
of the upper
overedge
looper
until it
clicks into place and push the conver
ter onto the
overedge looper bracket.
Position
the
upper
overedge looper
25
right
next to the
needle
by turning
the handwheel
towards you.
To remove the converter, gently push the
point of the converter from the
eye
of the
upper overedge looper. You
can now
remove the converter
by
pulling
it
upwards
from the overedge looper
bracket.
Attaching the
converter
33
