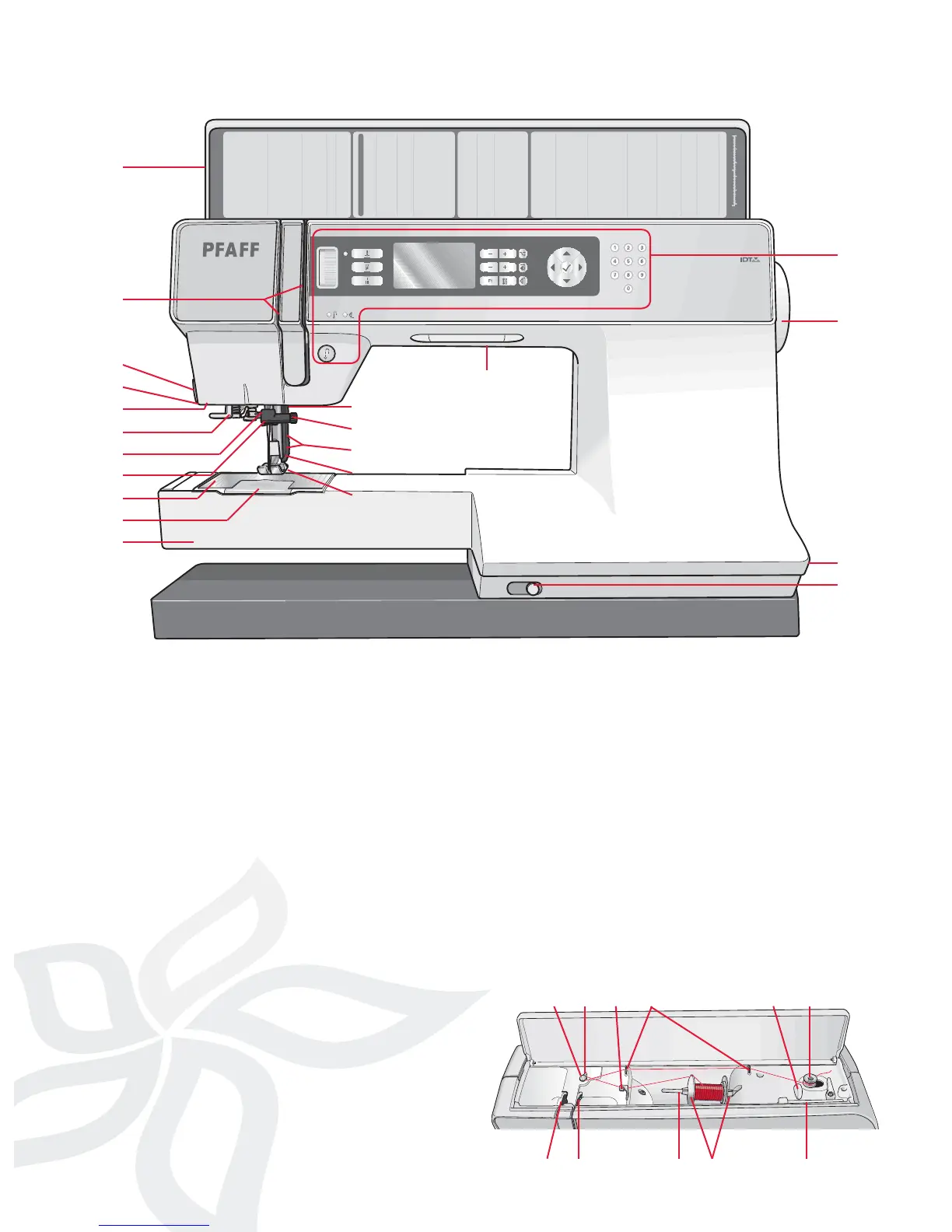

Front side
1. Lid with stitch overview and button ruler
2. Threading slots
3. Thread cutter
4. Sensormatic buttonhole foot socket
5. Light bulbs
6. Built-in needle threader
7. Needle bar
8. Needle thread guide
9. Stitch plate
10. Bobbin cover
11. Free arm
12. Presser foot
13. IDT™ system
14. Presser foot bar and presser foot holder
15. Needle screw
16. Presser foot lift
17. Buttons and graphic display
18. Handwheel
19. Main switch, connectors for power cord and
foot control
20. Slide for lowering the feed dogs
Top parts
21. Pre-tension disk for threading and bobbin
winding
22. Bobbin winder thread guide
23. Thread guide
24. Bobbin thread guides
25. Bobbin thread cutter
26. Bobbin winder lever and bobbin spindle
27. Auxiliary spool pin
28. Spool caps
29. Spool pin
30. Thread tension disk
31. Take-up lever
