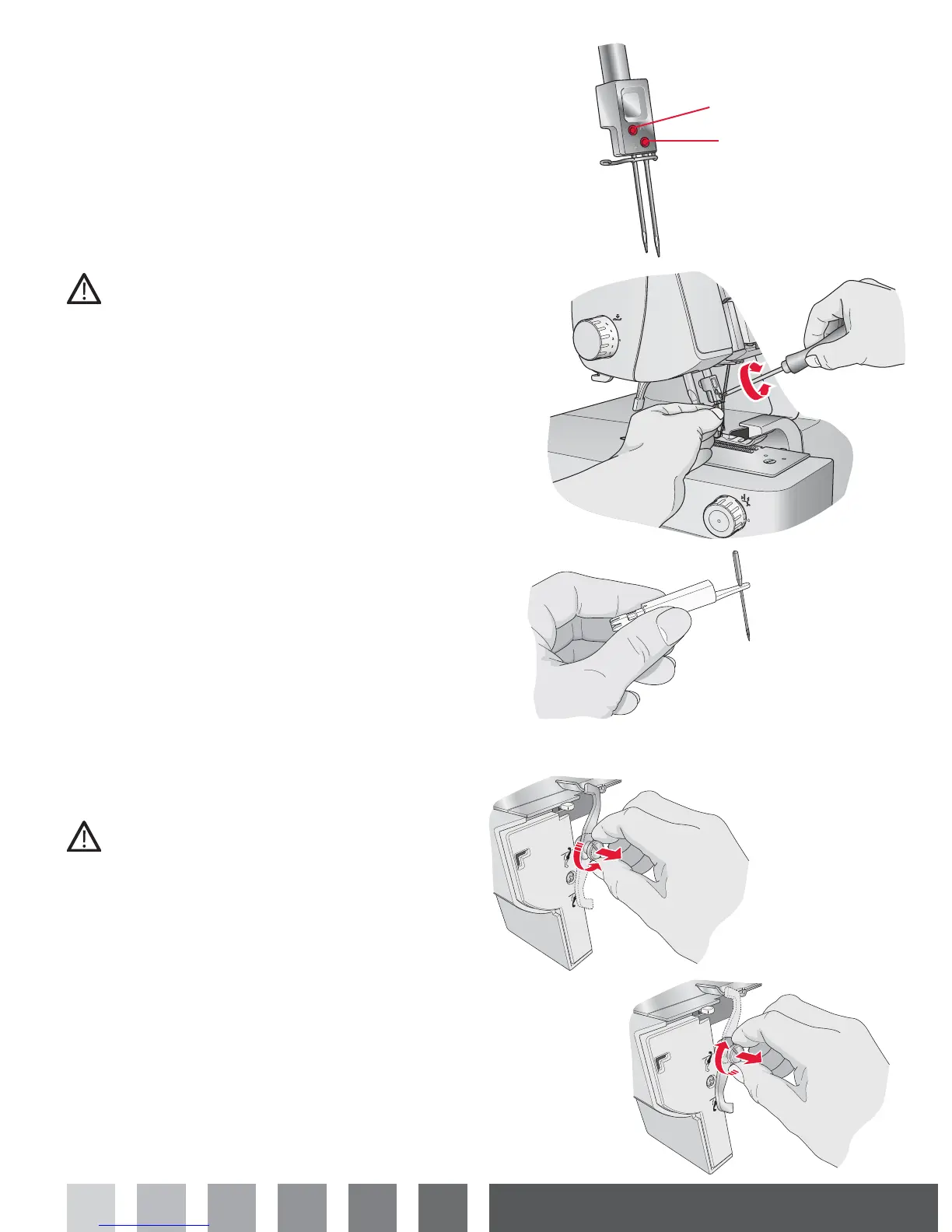

Preparations
Needle information
This overlock uses a fl at shank industrial needle that
eliminates the possibility of inserting the needle backwards.
Do not attempt to use a standard household sewing machine
needle of any size or type in this overlock.
Use INSPIRA™ needle EL x 705 sizes 14/90 and 12/80,
supplied with this machine.
Changing the needles
Turn off the main power switch and unplug the machine.
• Turn the handwheel toward you until the needles are at
the highest position.
• Place a thick piece of fabric under the presser foot. Lower
the needles halfway into the fabric.
• Loosen, but do not remove the needle clamp screw with
the allen key while you are holding the needles.
Note: When inserting needles into the A and/or B needle clamps it
is necessary to loosen the needle clamp screws for both A and B.
• Remove the selected needle.
• Hold the new needle with the fl at surface to the back.
• Insert the needle into the needle clamp as far as it will go.
Note: We recommend using the hole in the needle threader to hold
the needle.
• Securely tighten the needle clamp screw using the allen
key.
Note: Do not over-tighten the screw as this may cause the needle
clamp to be damaged.
Movable upper cutter
Disengaging, position B
Turn off the main power switch and unplug the machine.
• Turn the handwheel toward you until the upper cutter is
raised to the highest position.
• Open the front cover.
• Pull the movable cutter knob to the right as far as it will
go.
• Turn the knob toward you counter clockwise until the
cutter clicks into the locked position B.
Engaging, position A
• Open the front cover and pull the movable cutter knob to
the right as far as it will go.
• Turn the knob clockwise until the cutter clicks into the
cutting position A.
A. Overlock left needle
B. Overlock right needle
