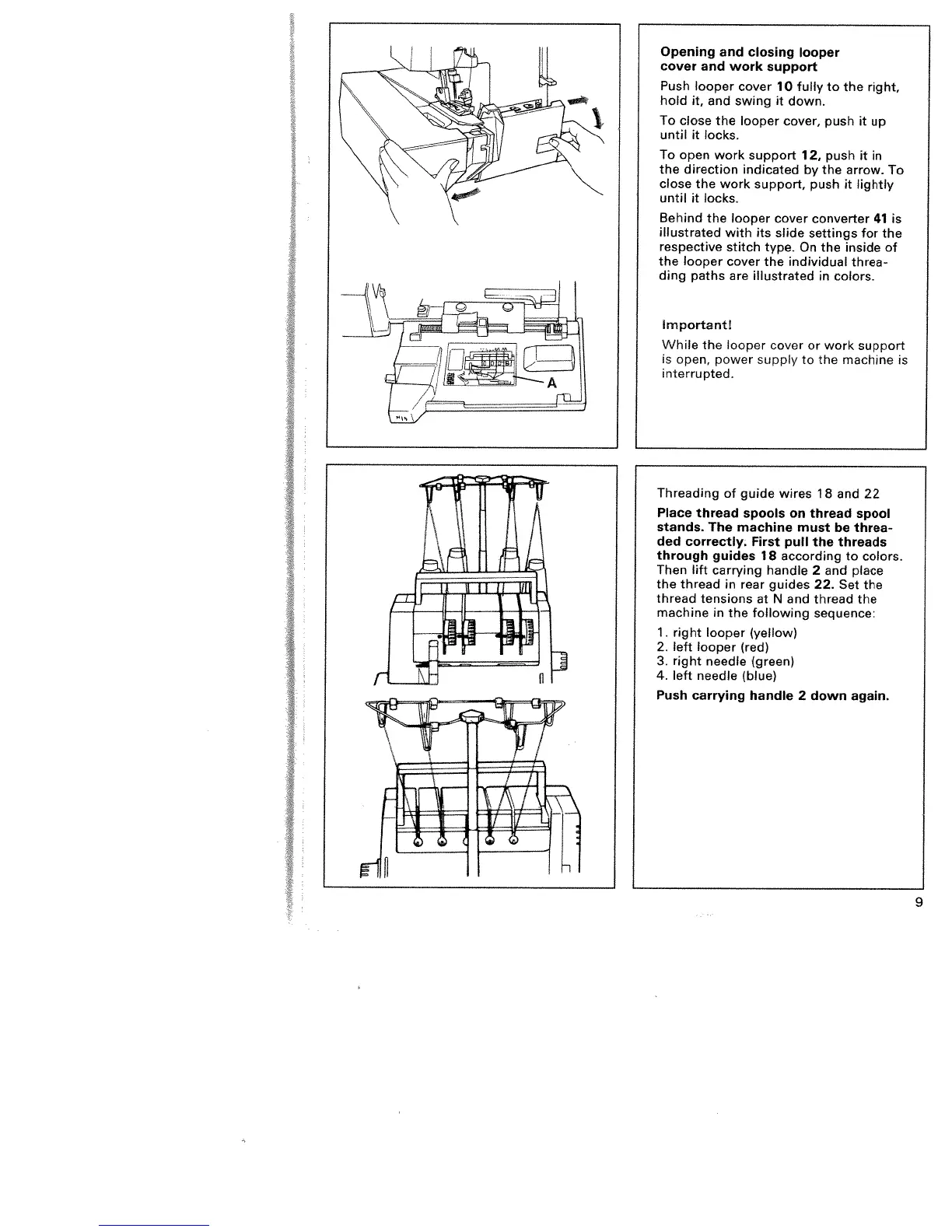

Pfaff hobbylock 4760 User Manual

Opening
and closing
looper
cover
and
work
support
Push
looper
cover
10 fully
to
the
right.
hold
it, and
swing
it down.
To
close
the looper
cover,
push it
up
until
it locks.
To
open
work support
12, push
it in
the direction
indicated
by
the arrow.
To
close
the
work
support,
push
it lightly
until it
locks.
Behind
the
looper
cover
converter
41 is
illustrated
with
its slide
settings
for
the
respective
stitch
type.
On
the
inside
of
the looper
cover
the
individual
threa
ding
paths
are
illustrated
in
colors.
Important!
While
the
looper
cover
or work
support
is open,
power
supply
to
the
machine
is
interrupted.
Threading
of guide
wires
18 and
22
Place
thread
spools
on
thread
spool
stands.
The machine
must
be threa
ded
correctly.
First
pull the
threads
through
guides
18
according
to
colors.
Then
lift
carrying
handle
2 and
place
the thread
in
rear guides
22.
Set
the
thread
tensions
at
N and
thread
the
machine
in
the following
sequence:
1.
right looper
(yellow)
2.
left
looper
(red)
3.
right
needle
(green)
4.
left needle
(blue)
Push
carrying
handle
2 down
again.
9
