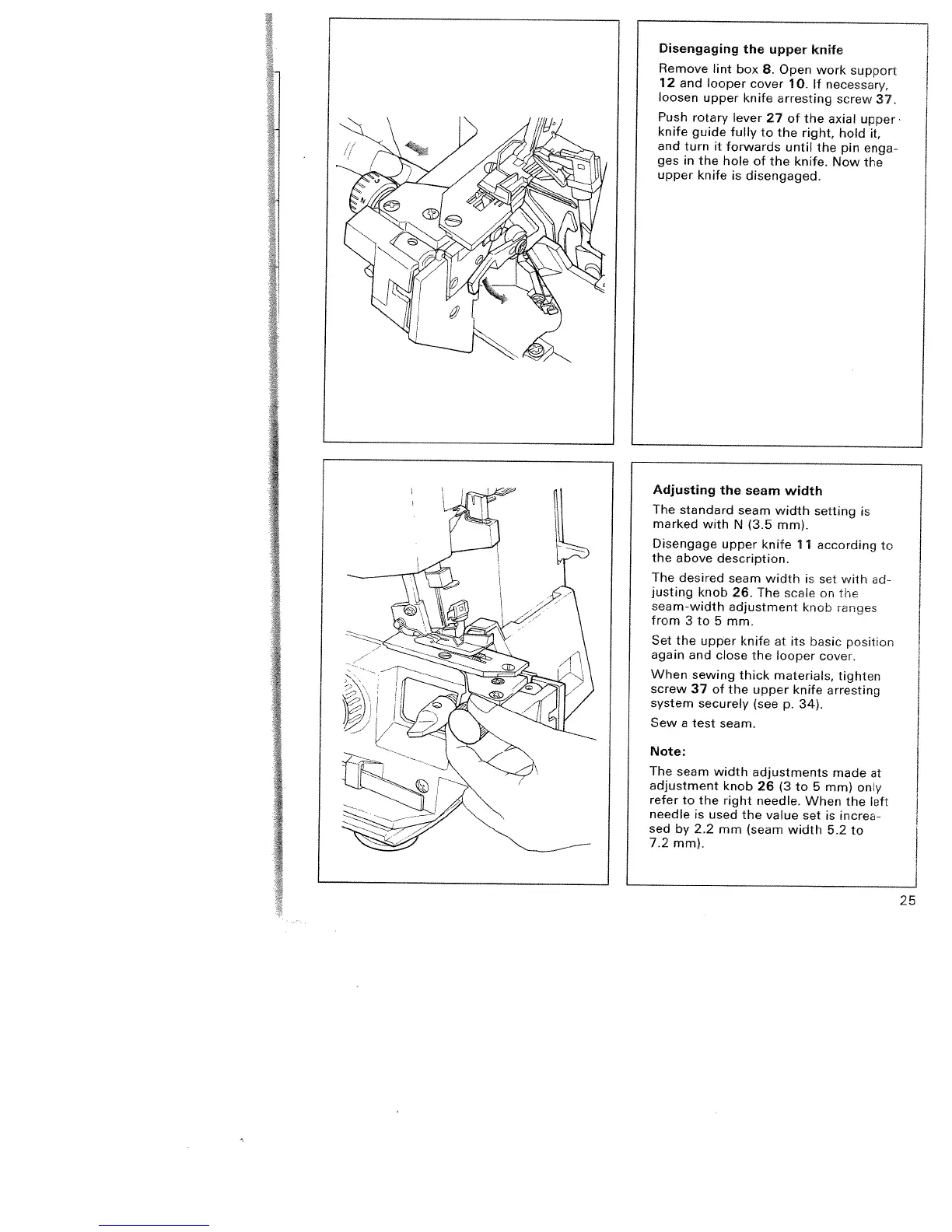

Disengaging
the upper
knife
Remove
lint
box
8.
Open
work
support
12
and
looper
cover
10.
If
necessary,
loosen
upper
knife arresting
screw
37.
Push
rotary
lever
27
of
the
axial
upper
knife
guide
fully
to
the
right,
hold
it,
and
turn
it
forwards
until
the
pin
enga
ges
in
the
hole
of
the
knife.
Now
the
upper
knife is
disengaged.
Adjusting
the
seam
width
The
standard
seam width
setting
is
marked
with
N
(3.5
mm).
Disengage
upper
knife 11
according
to
the
above
description.
The
desired
seam width
is
set with
ad
justing
knob
26.
The
scale
on
tne
seam-width
adjustment
knob ranges
from
3
to
5
mm,
Set
the
upper
knife
at
its
basic
position
again
and
close
the looper
cover.
When
sewing
thick materials,
tighten
screw 37
of
the
upper knife
arresting
system
securely
(see
p.
34).
Sew
a
test
seam.
Note
The seam
width
adjustments
made
at
adjustment
knob
26
(3
to
5
mm) only
refer
to
the
right needle.
When
the
left
needle
is
used
the
value
set
is
increa
sed
by
2.2
mm
(seam
width
5.2
to
7.2
mm).
