Pfaff hobbylock 4760 User Manual

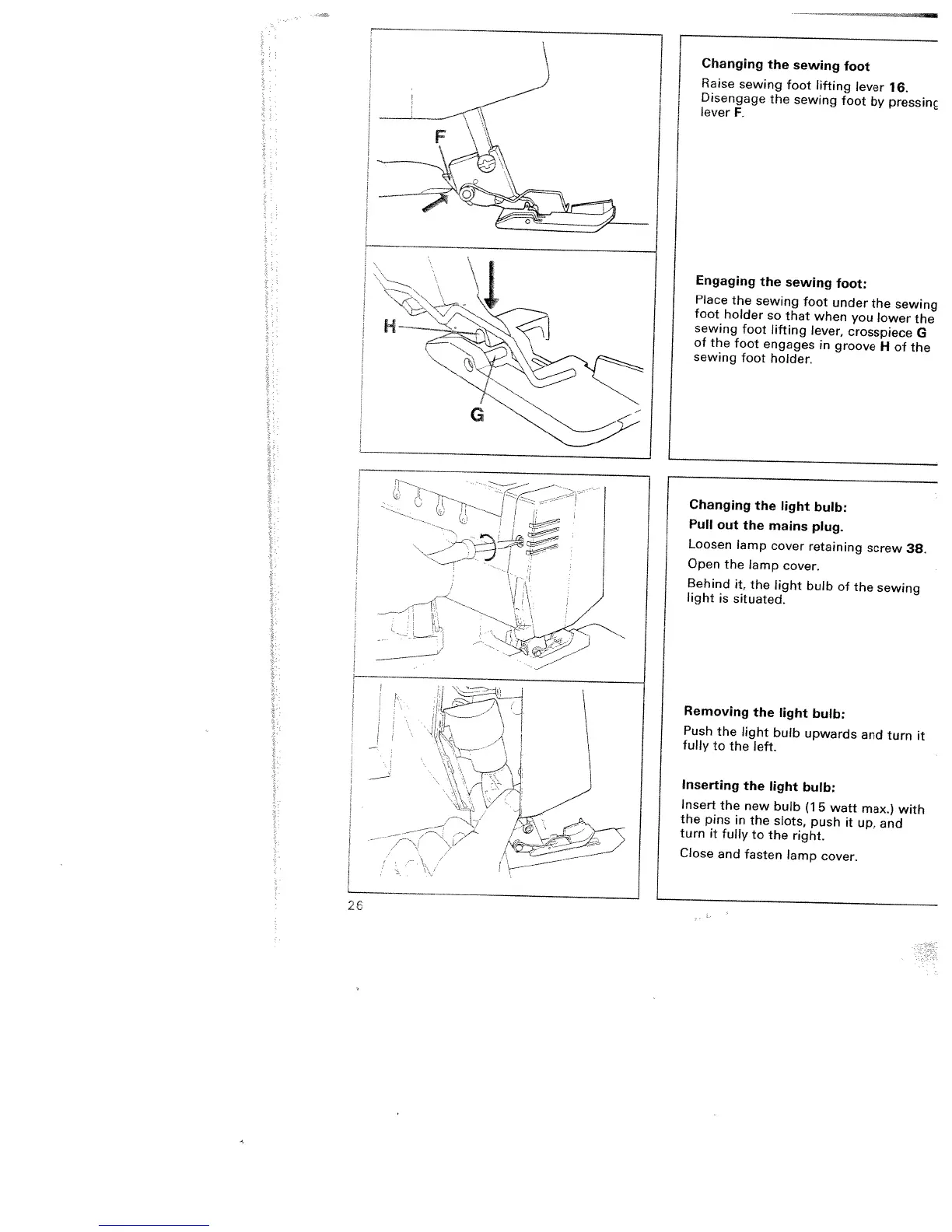

Changing
the
sewing
foot
Raise
sewing
foot
lifting
lever
16.
Disengage
the
sewing
foot
by
pressinc
lever
F.
/
/
-
Engaging
the
sewing
foot:
Place
the
sewing
foot
under
the
sewing
foot
holder
so
that
when
you
lower
the
sewing
foot
lifting
lever,
crosspiece
G
of
the
foot
engages
in
groove
H
of
the
sewing
foot
holder.
Changing
the
light
bulb:
Pull
out
the
mains
plug.
Loosen
lamp
cover
retaining
screw
38.
Open
the
lamp
cover.
Behind
it.
the
light
bulb
of
the
sewing
light
is
situated.
Removing
the
light
bulb:
Push
the
light
bulb
upwards
and
turn
it
fully
to the
left.
Inserting
the
light
bulb:
Insert
the
new
bulb
(15
watt
max.)
with
the
pins
in
the
slots,
push
it
up,
and
turn
it
fully
to
the
right.
Close
and
fasten
lamp
cover.
G
2E
