22
Adjustment
When exchanging the parts kit with stitch lengths differing from the as-deliv-
ered state of the machine, limit the max. stitch length using stitch adjuster 4.

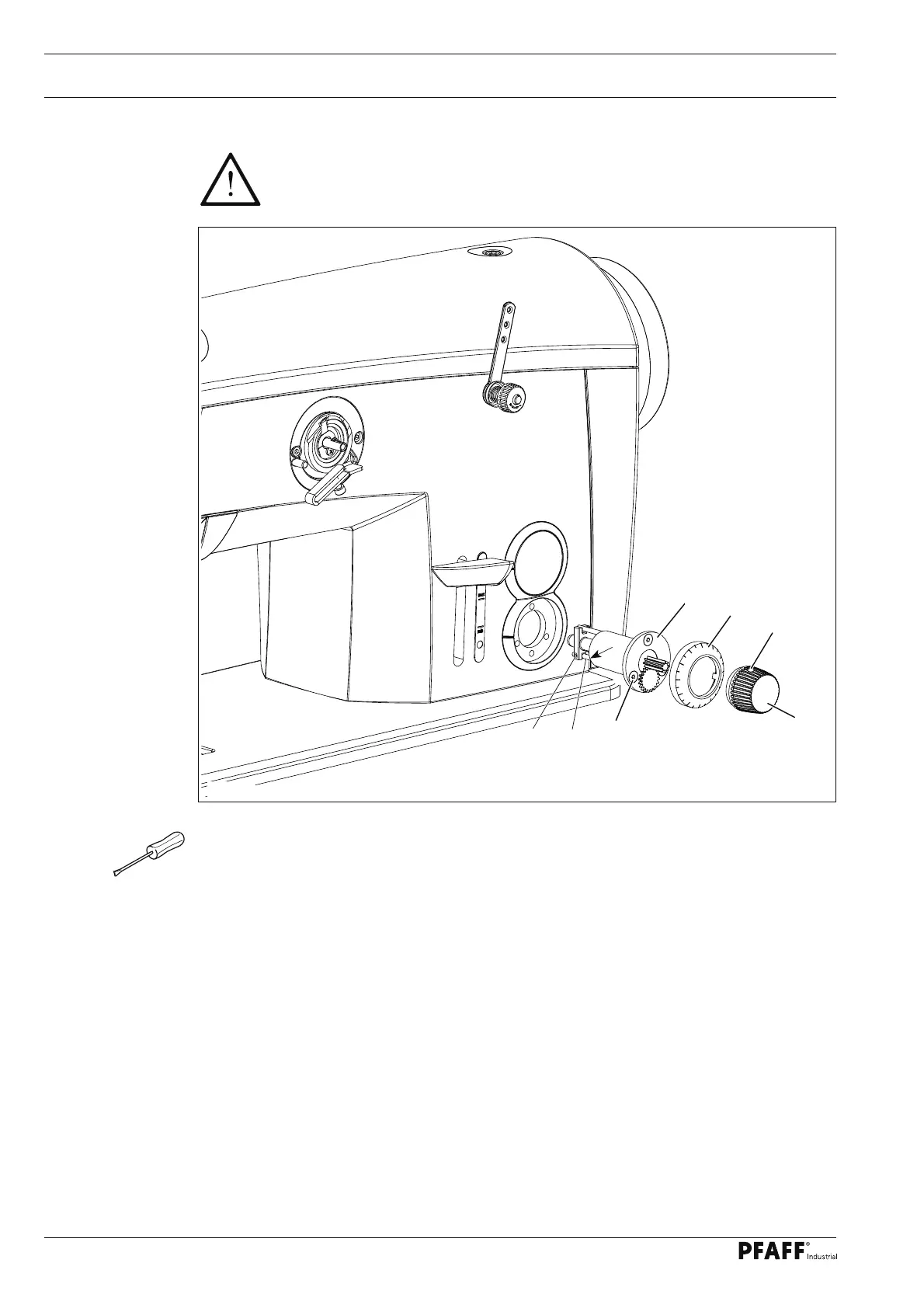

1.05.17 Limiting the stitch length
Fig. 1 - 16
Set the desired max. stitch length at control button ● 1
(on model CN = 6.0 mm, on model CN9 + C/DN9 = 9 mm)
Remove adjustment knob ● 1 (screws 2) and scale dial 3.
Remove adjustment unit ● 4 (screws 5).
Bring lineal ● 6 (screw 7) to the unit using stitch adjuster 4 (see arrow).
Replace adjustment unit ● 4, scale dial 3 and adjustment knob 1.
1
2
3
5
4
6
7
