Step 2: Connect the Refill Pump discharge pipe to the Refill Valve 3 within Picture 27
Connect Water Outlet pipe to Customer Cooling Circuit (dark blue line) and install a fluid filter between the Return pipe from
Customer Cooling Circuit (red line) and Cleaning Mixture Tank.
Wash the Hydraulic Circuit for Minimum 1 hour.

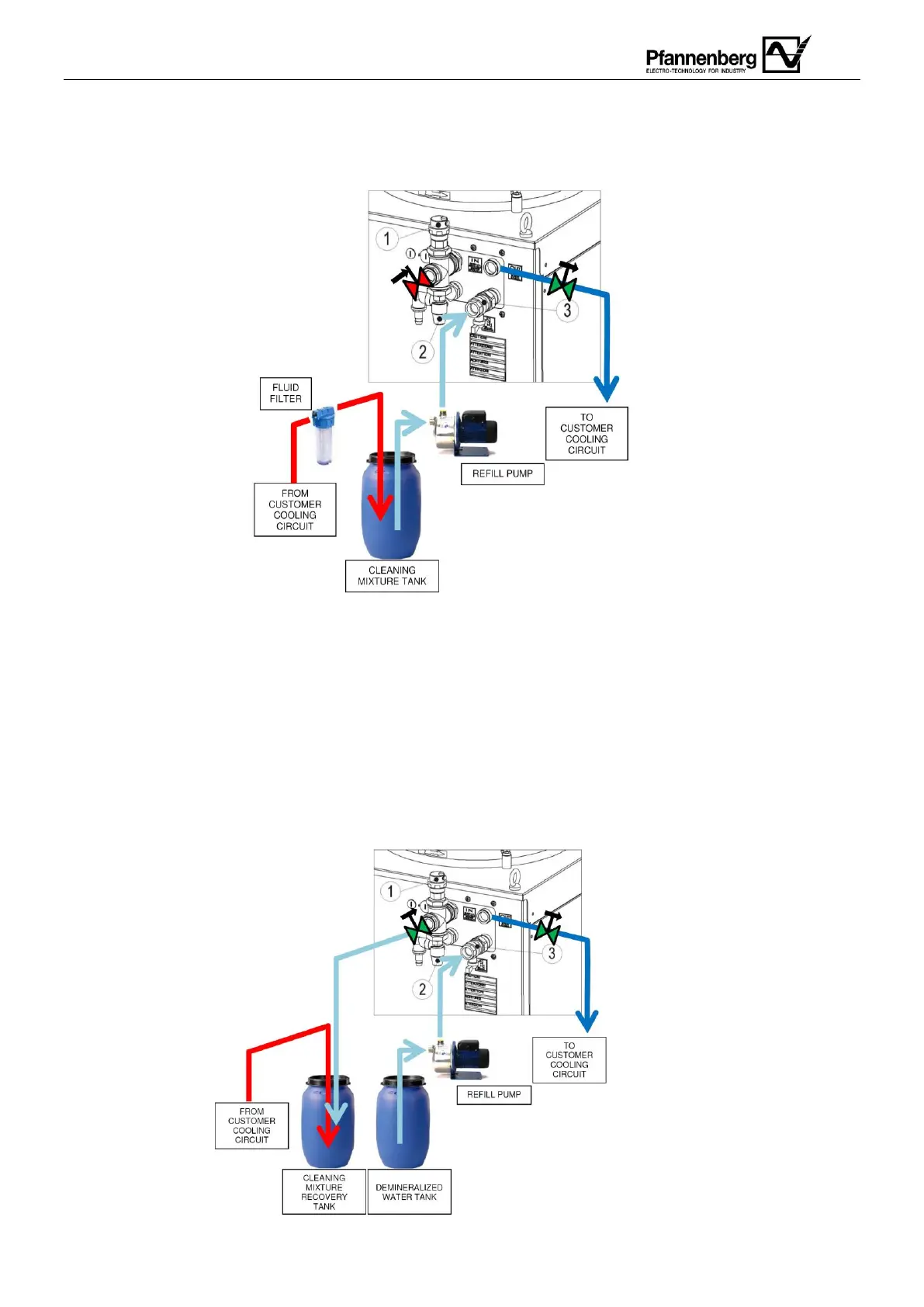

Picture 27 – Lay-Out cleaning procedure with cleaning mixture
The recommended cleaning
product is FUCHS “ Maintain professional washer LI” (Pfannenberg part number: 46783000135 – 25kg Tank)
Diluition Percentace:
2% Professional Washer
98% Water
(it is recommended to use demineralized water)
Step 3: Remove Cleaning Mixture from Hydraulic Circuit for Minimum 10 minutes according to Cleaning Procedure Layout – 2
within Picture 28
It is suggested to use Demineralized Water
Picture 28 – Lay-Out for cleaning procedure with demineralized water
