Corrosion Detector Portable CDP EXProof
5 Replacing the batteries
Do not open the measuring
device within potentially explosive atmos-
pheres. Replace the batteries outside
potentially explosive atmospheres only.
Use permitted batteries only.
Open the battery compartment on the
back of the unit and replace the batteries.
Use permitted batteries only.
6 Technical data of Corrosion Detector Portable CDP EXProof
EC type examination certificate: EX5 12 02 45670 008
Ex-identification:
II 2 G Ex ib IIB T3 –10 °C ≤ Ta ≤ +50 °C
Power supply: 4.5 VDC
Current input: max. 60 mA
Minimum conductivity: 0,8 mS/cm
Measuring voltage: 3,3 Veff
Measuring current: max. 1,3 mA
Measuring frequency: 10 Hz
Working temperature: –10 °C bis +50 °C
Storage temperature: –25 °C bis +70 °C (without batteries)
Housing: Vestamide/black (antistatic)
LxWxH: 180 x 85/62 x 30/25.5 mm
Weight: 390 g
Degree of protection: IP 54
Memory: Owner: 1 entry
User: 50 entries
Locations: 500 entries
Measurements: 10,000 entries (circulating)
Sealed keypad: 21 keys (shielded)
Battery compartment for: 3 batteries size R6
Permitted batteries: AA 1.5 V size R6 LR6 No. 4106 AM3 MN 1500
VARTA Microbattery GmbH
Graphic display 128x64 and acryl glass cover (metalized)
Connectors for the immersion probe and grounding clamp on face side of enclosure
Electromagnetic compatibility (to IEC 801)
CE mark

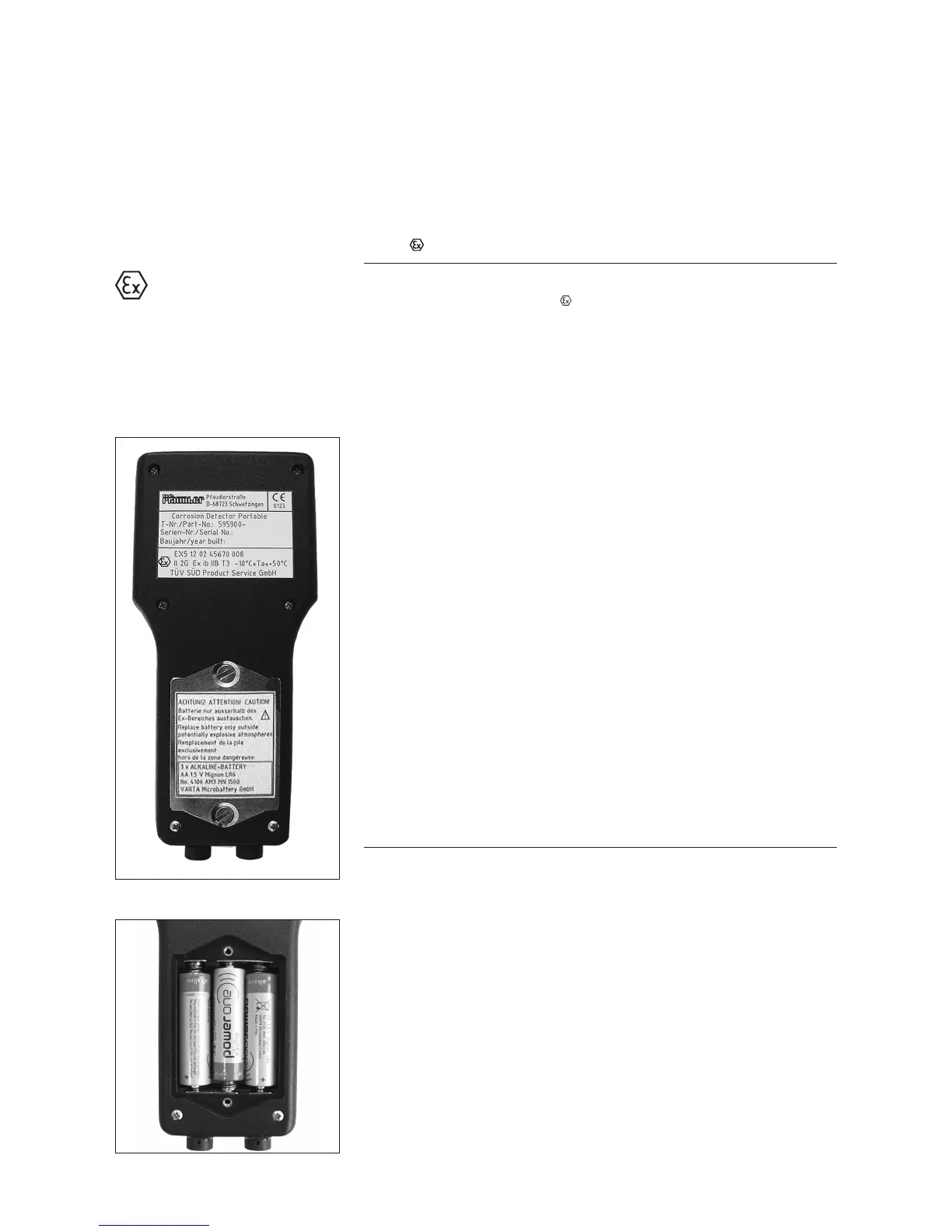

Fig. 5 Battery compartment open
Fig. 4 Backside Corrosion Detector
