2. Understanding The Pumping Station
Improper Use
The following, inter alia, is regarded as improper:
– The pumping of corrosive or explosive gases,
– Operating the pumping stations in areas where there is a
danger of explosion,
– Operating in surroundings which require a protection type
superior to IP 30,
– The use of accessory parts not named in these operating
instructions or which have not been agreed with the
manufacturer.
Improper use will cause all guarantees and liability claims to
be null and void.
2.2. Pumping Station Control

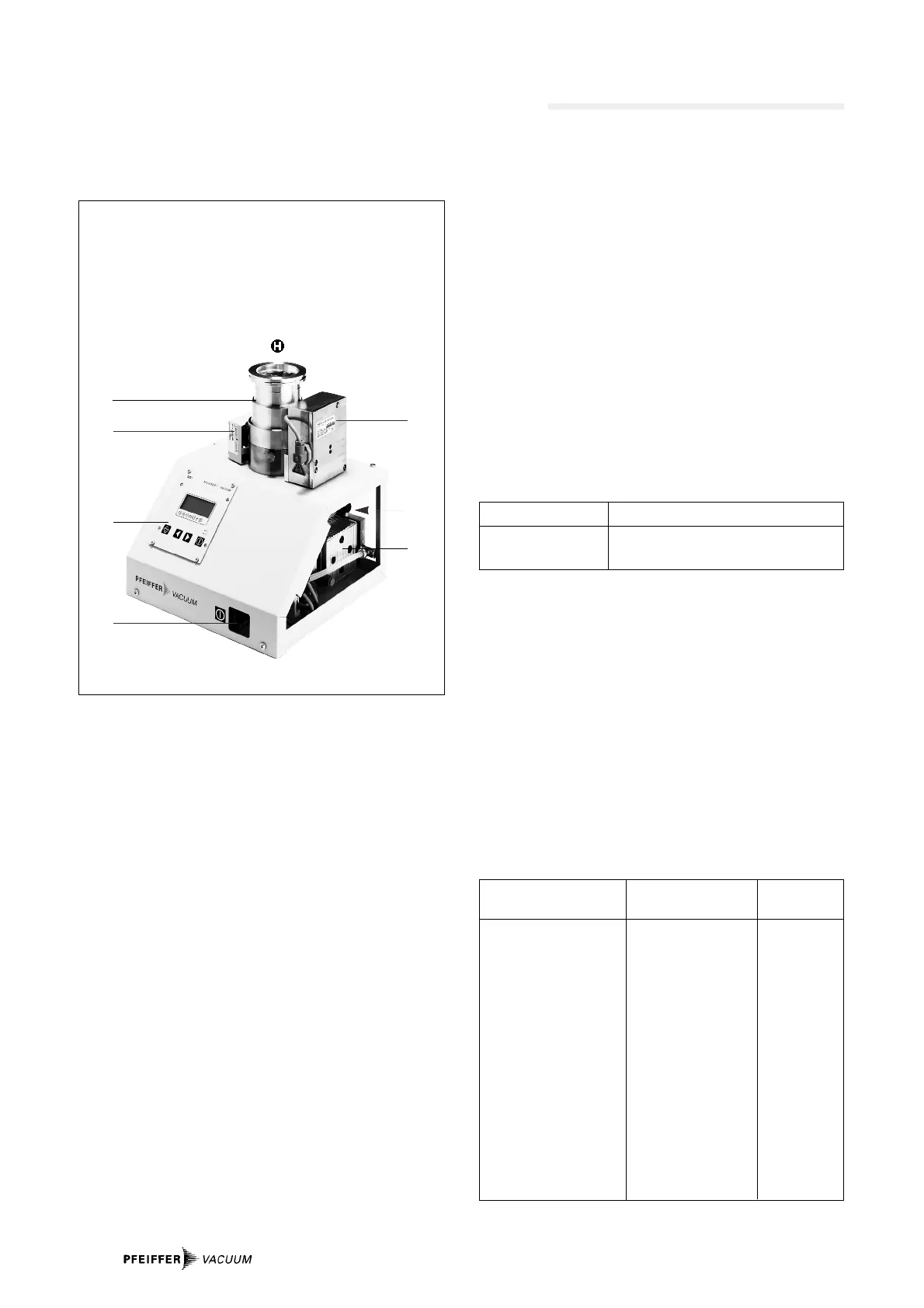

Turbomolecular Drag Pumping Station TSH 071 E
1 Turbomolecular Drag Pump TMH 071 P
2 Diaphragm Pump MVP 015-2
2a ON/OFF mains switch diaphragm pump
3 Display And Operating Unit DCU 001
8 Electronic Drive Unit TC 600
29 ON/OFF Pumping Station (located internally)
36 Air Cooling
The pumping stations are of plug and play type and are fully
automatic operating pumping units.
The mains cable is not included with the delivery consignmet
and must therefore be ordered separately (see
"Accessories").
The pumping station can be supplied with or without the
Display And Operating Unit DCU OO1.
The Display And Operating Unit DCU OO1 serves to control
and monitor the pumping station.
The DCU can be detached from the pumping station and ope-
rated with the 3 m long connecting cable as a remote control
and which is included with the delivery.
Cooling
Standard: Air cooling
(5 to 35 °C ambient temperature)
Alternative: Water cooling (Accessory)
Proper Use
– The turbomolecular pumping stations may only be used for
the purpose of generating vacuum.
– The turbomolecular pumping stations may only be opera-
ted in the configuration shown.
Pumping station Pumping station control
1)
TSH 071 E TC 600 with TPS 100
TSU 071 E
1) Alteration to the operating parameters with the DCU 001 possible.
Accessory connection to
TC 600:
Air cooling
Venting Valve TVF 005
Turbopump heating
DCU 001 (Accessory):
Pressure gauges (Accessory)
2.3. Pumping Station Componets
Pumping stations TSH 071 E TSU 071 E Operating
Instructions
Pumping station
componets
Turbomolecular Drag- TMH 071 P TMU 071 P PM 800 504 BN
Pump with Electronic
Drive Unit TC 600
Diaphragm Vacuum Pump MVP 015-2 PU 0012 BN
Power Unit TPS 100 PM 800 521 BN
Air cooling PM 800 543 BN
Display And
Operating Unit DCU 001 PM 800 477 BN
(Accessory) and
PM 800 547 BN
1
36
8
2
3
29
2.1. Main Features
2a
