Operating Instructions Contador
Page 22 of 40 Revision 6 © 2019 – Pfeuffer GmbH

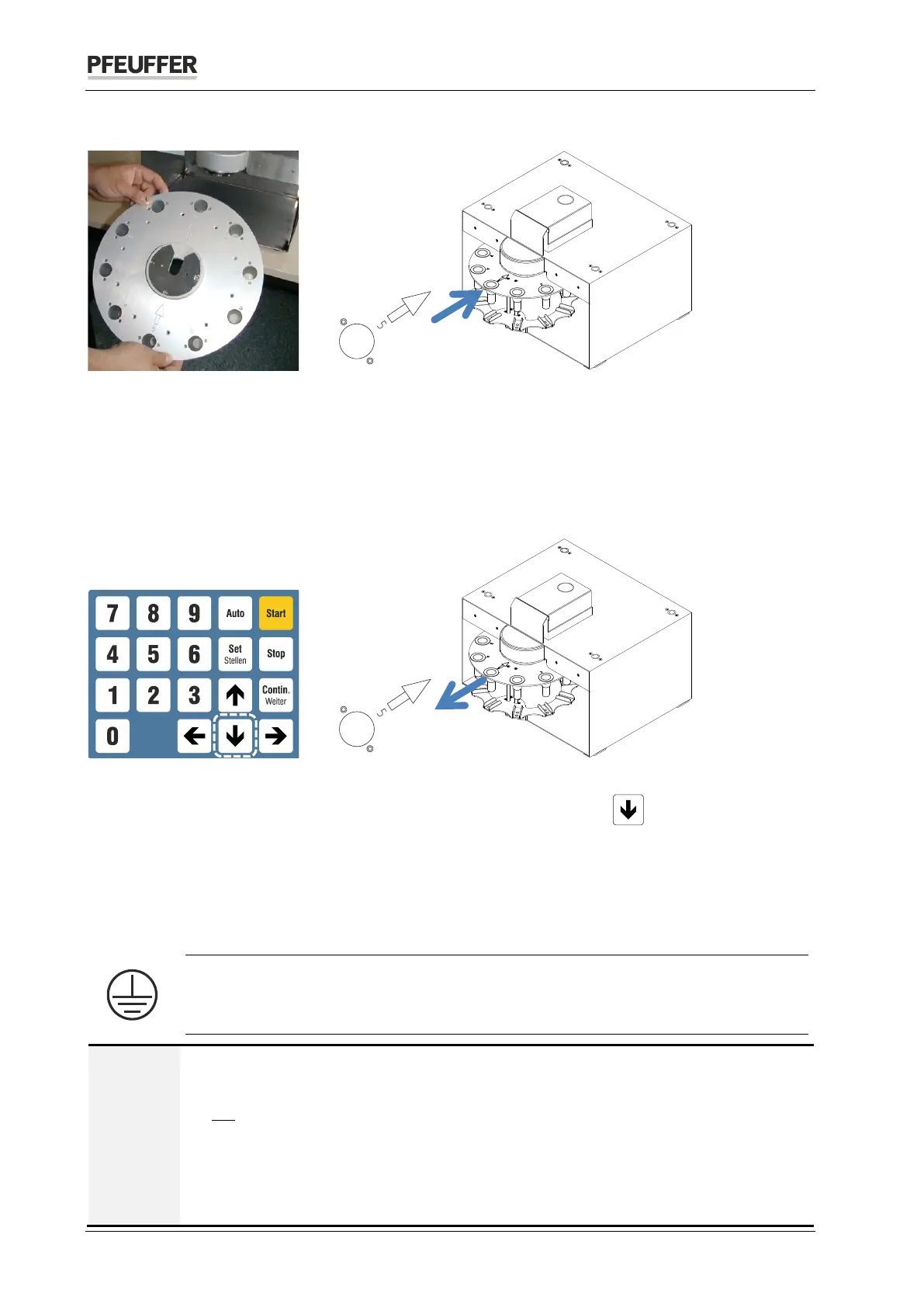

6.2.2 Inserting the carousel
Figure 17: Insert carousel
 Carefully insert the carousel in the direction of the embossed arrow (position 5) into the semi-
automatic filling station.
 Fit in the carousel and turn it shortly into the locking position (left respectively right) until the
carousel is locked into place audibly.
6.2.3 Removing the carousel
Figure 18: Remove carousel
 If you want to remove the carousel again, turn it by the arrow button on the keyboard of the
CONTADOR until the position 5 and the embossed arrow are at the front.
 To remove, turn the carousel to the left respectively to the right to loosen the carousel from the
locking position.
6.2.4 Electrical connections
The CONTADOR Seed counter in combination with the CONTAFILL semi-automatic filling
station may only
be connected to a properly grounded socket with protective earth
conductor.
NOTE
The power supply and the control of the CONTAFILL semi-automatic filling station is only
possible in connection with the CONTADOR Seed counter.
Do not connect external voltages.
To avoid disturbances or damage to the electronics, the CONTADOR Seed counter must
be switched off before disconnecting or inserting the connector.
The connectors of the 15-pin D-sub
connection cable must always be secure and
screwed.
