Pfister VTP-E21W - Toilet Tank and Bowl Assembly; Tank to Bowl Installation Steps; Securing the Toilet Bowl; Water Supply and Internal Plumbing

ENGLISH
ENGLISH
3
8
10
9

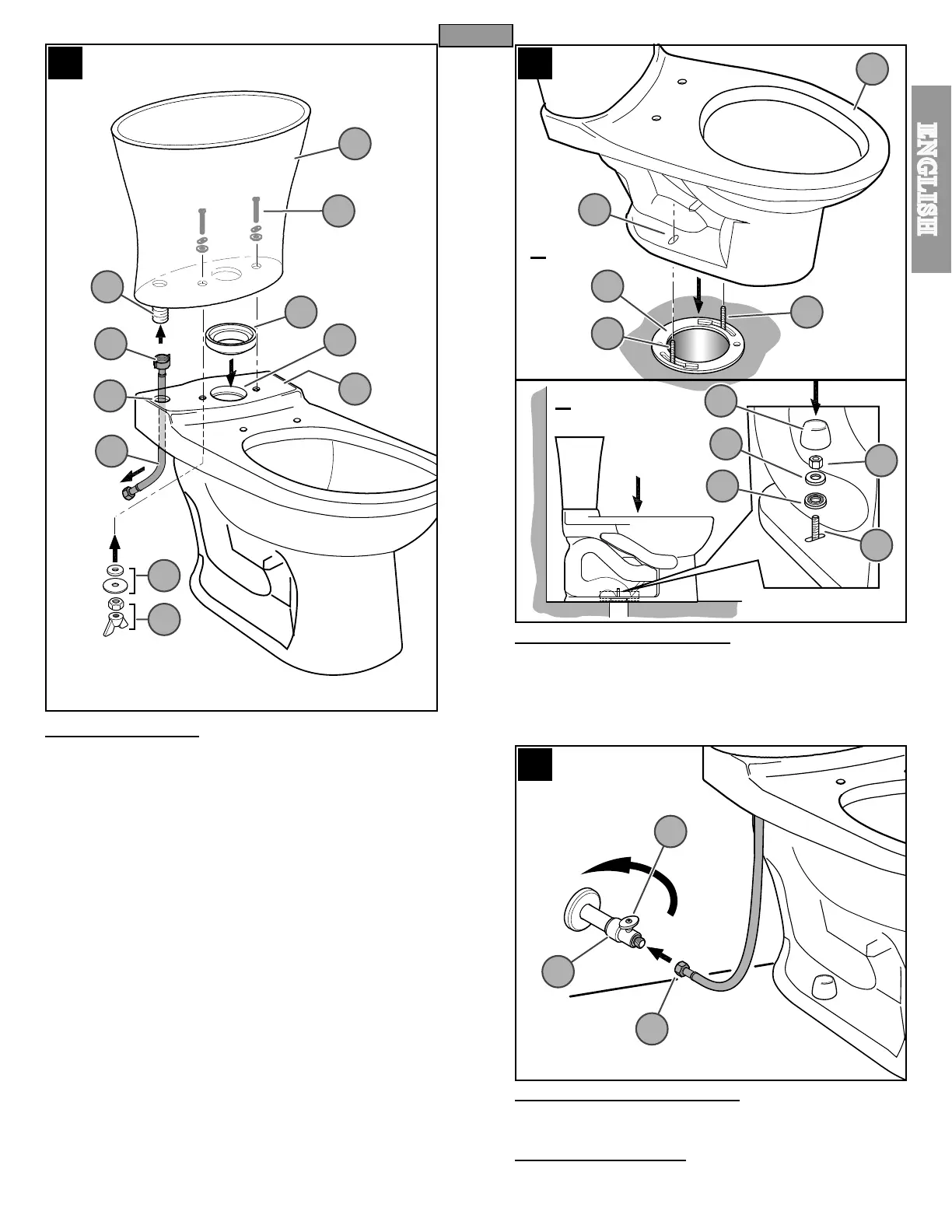

9 TOILET BOWL INSTALLATION
A. Place Toilet’s Base (9A) onto Waste Outlet Hole (9B) with Tee Bolts (9C) passing
through Fixing Holes (9D).
B. Place the Plastic Washer (9E) and Metal Washer (9F) onto Tee Bolts (9C). Secure
by tightening the Mounting Nuts (9G) on to the Tee Bolts.
Do not over tighten!
Snap on Plastic Caps (9H) over bolts and nut as shown.
8 TANK INSTALLATION
The tank comes pre-installed with ushing mechanism. Attach Large Hose Nut (8A) to
Fill Valve Shank (8B) located on bottom of Tank (8C). Insert Rubber Gasket (8D) into
Water Inlet Hole (8E) on top of Bowl Shelf (8F). Place Tank (8C) on top of Bowl Shelf
(9F) and align Brass Bolts (8G) and insert Hose (8H) through corresponding Shelf
Holes (8J). From underneath bowl, screw Locking Nuts (8K) and Washers (8L) onto
Brass Bolts (8G) and tighten as shown.
Do not over tighten!
10 WATER SUPPLY CONNECTION
Connect Short Hose Nut (10A) onto Water Supply Valve (10B). Turn on Water Supply
Valve (10B) by turning Handle (10C) counterclockwise.
11 INTERNAL PLUMBING
Tank comes pre-installed with ushing mechanism.
10C
10A
10B
9F
9G
9C
9H
9E
9A
9B
9C
9C
9D
8J
8H
8C
8D
8G
8E
8F
8A
8L
8K
8B
OPEN
A
B
