C.Dismantling and installing the
Cam shaft

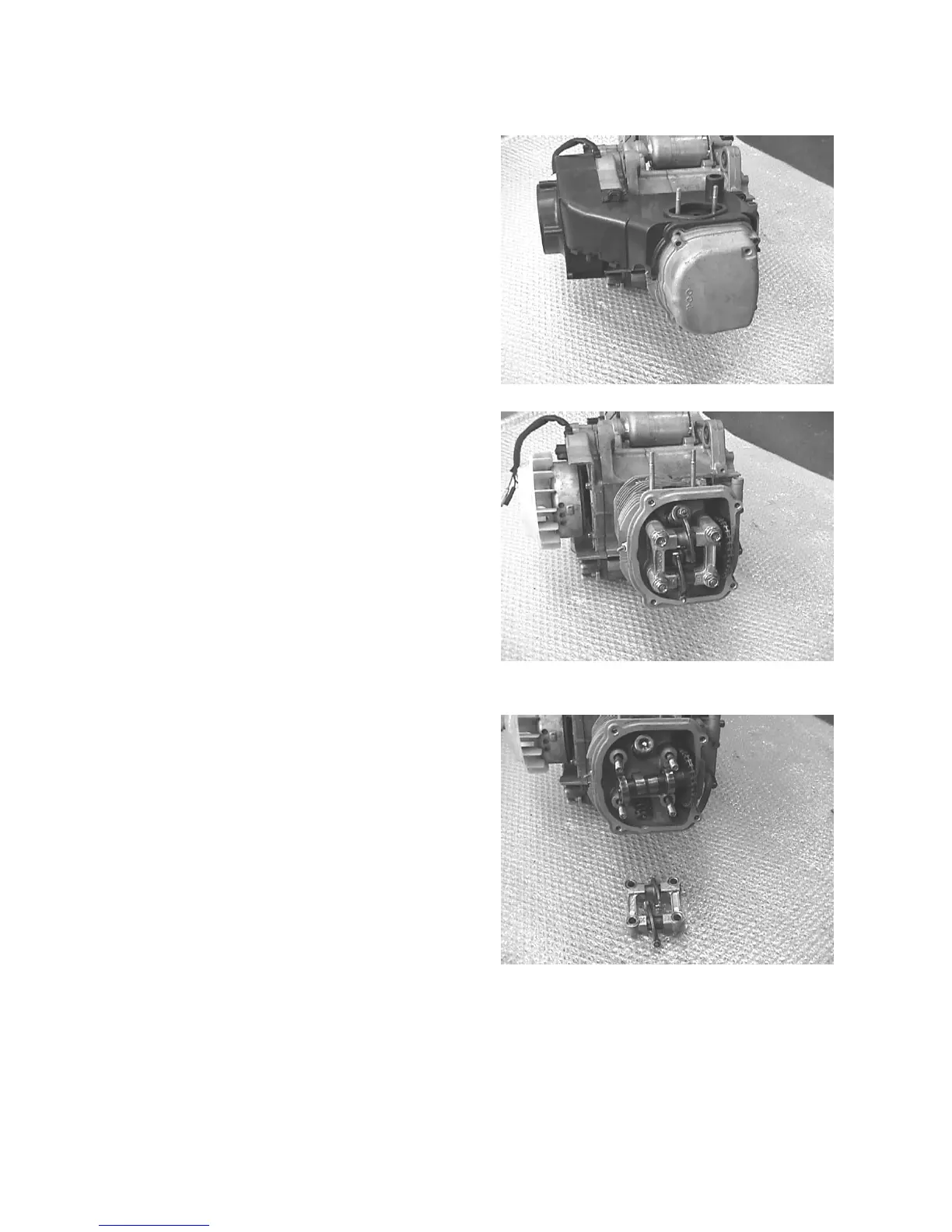

1.Take off the left cover.
2.Remove the intake pipe from the
Cylinder head cover.
3.Take off the 4 bolts of the
cylinder head cover and take off
the cylinder head cover.
4.Turn the flywheel counterclockwise and let
the ”T”
mark on the flywheel point to the crankcase
mark and
make the round hole on the cam chain gear point
upwards.
This is the upper dead point of compression.
5.Take off the cam shaft holder, the nut and the
locking pin.
6.Remove the cam gear from the cam chain.
7.Remove the cam shaft.
