71
Chapter 9: Support
Phantom vxx12

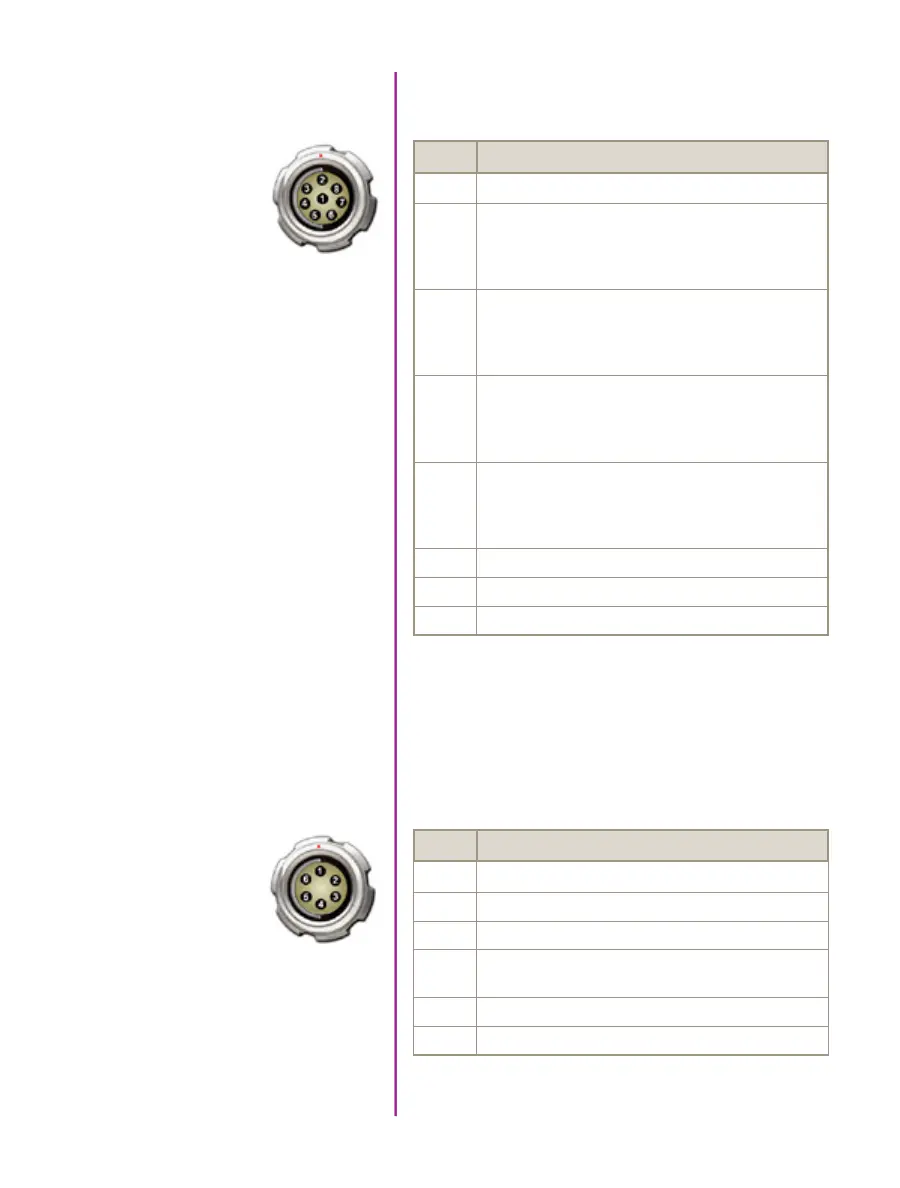

Range Data Connector
PIN NOMENCLATURE / FUNCTION
1 GND / Power Ground
2 ROUT+ / Remote/Range Data Out (Positive),
(RS-422); +5V maximum. Depending on data
transmission rates, RS-422 can be used at distances
to 4,000 feet (1,275 meters).
3 ROUT- / Remote/Range Data Out (Negative), (RS-422);
+5V maximum. Depending on data transmission rates,
RS-422 can be used at distances to 4,000 feet
(1,275 meters).
4 RIN+ / Remote/Range Data In (Positive), (RS-422);
+5V maximum. Depending on data transmission rates,
RS-422 can be used at distances to 4,000 feet
(1,275 meters).
5 RIN- / Remote/Range Data In (Negative), (RS-422);
+5V maximum. Depending on data transmission rates,
RS-422 can be used at distances to 4,000 feet
(1,275 meters).
6 +3V3R
7 +24VR
8 GND / Power Ground
Range Data port
8-pin Fischer part # S103.Z058
GPS (Ground Positioning System) port
6-pin Fischer part # S103Z056
Phantom vxx12
GPS Connector
PIN NOMENCLATURE / FUNCTION
1 GND / Power Ground
2 RxD / RS-232 Receive Data
3 Unused
4 +5V/0.2A / +5VDC (Direct Current) positive power to the
Phantom camera at 0.2 amps.
5 pps In / Parts-per-Second In
6 pps Ground / Parts-per-Second Ground
