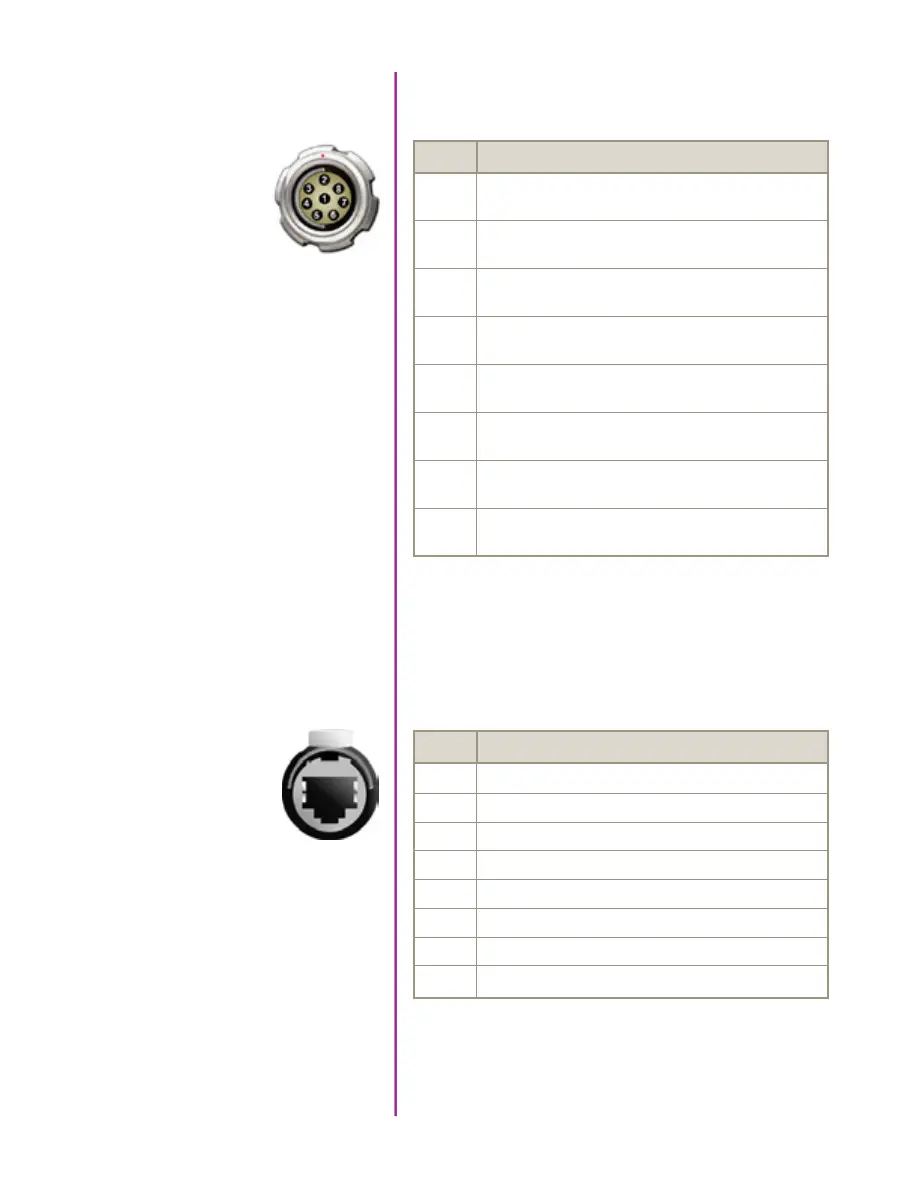

GigE Ethernet Connector
PIN NOMENCLATURE / FUNCTION
1 ETHRXP / 10/100/1000BASE-T Ethernet Receive
(positive)
2 ETHRXN / 10/100/1000BASE-T Ethernet Receive
(negative)
3 ETHTXP / 10/100/1000BASE-T Ethernet Transmit
(positive)
4 ETHTXN / 10/100/1000BASE-T Ethernet Transmit
(negative)
5 MDI2P /10/100/1000BASE-T Media
Dependent Interface 2 (positive)
6 MDI2N / 10/100/1000BASE-T Media
Dependent Interface 2 (negative)
7 MDI2P / 10/100/1000BASE-T Media
Dependent Interface 3 (positive)
8 MDI3N / 100/1000BASE-T Media Dependent
Interface 3 (negative)
GigE Ethernet port
8-pin Fischer part # SS 103 A058-130
Phantom vxx12
10GigE Ethernet Connector
PIN NOMENCLATURE / FUNCTION
1 XMDI0+ / MDI 0 (positive)
2 XMDI0- / MDI 0 (negative)
3 XMDI1+ / MDI 1 (positive)
4 XMDI2+ / MDI 2 (positive)
5 XMDI2- / MDI 2 (negative)
6 XMDI1- / MDI 1 (negative)
7 XMDI3+ / MDI 3 (positive)
8 XMDI3- / MDI 3 (negative)
10GigE Ethernet port
8-pin RJ45
MDI - Media Dependent Interface
