PHANTOM CINEMAG IV & V INDICATORS

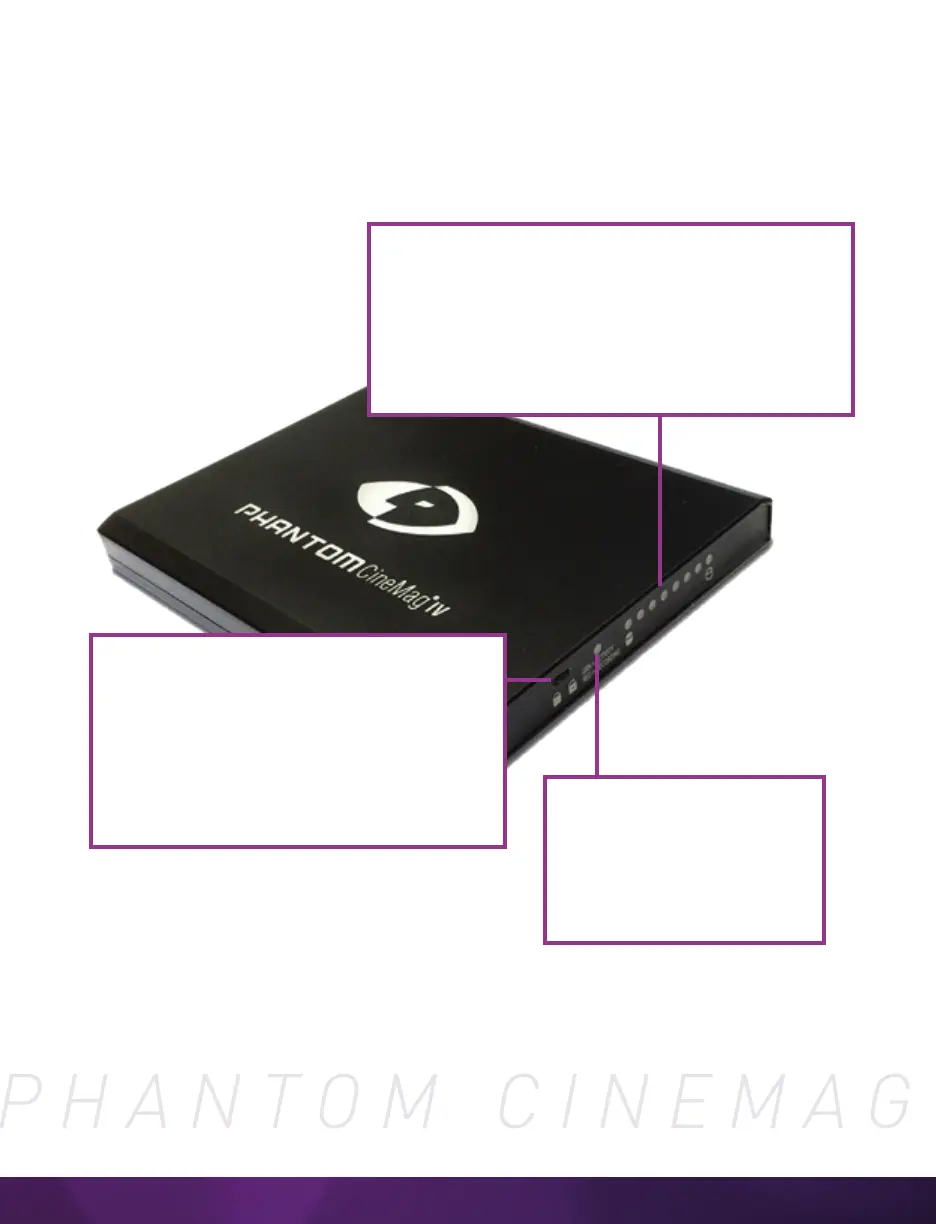

On the back of the Phantom CineMag are a number of LED indicators that show the
current Phantom CineMag status.
MAG CAPACITY INDICATOR
When a Phantom CineMag is empty, all lights
will be illuminated. As material is recorded to
the mag, the lights will turn off. The last light
will always stay on to indicate power.
ERASE PROTECT SWITCH
When the erase protect switch is in the
lock position, the CineMag cannot
be erased. Use an appropriate tool, such
as a micro-flathead screwdriver, to flip
the switch.
ACTIVITY LED
Green for read activity
Red indicates recording
Orange indicates erasing
