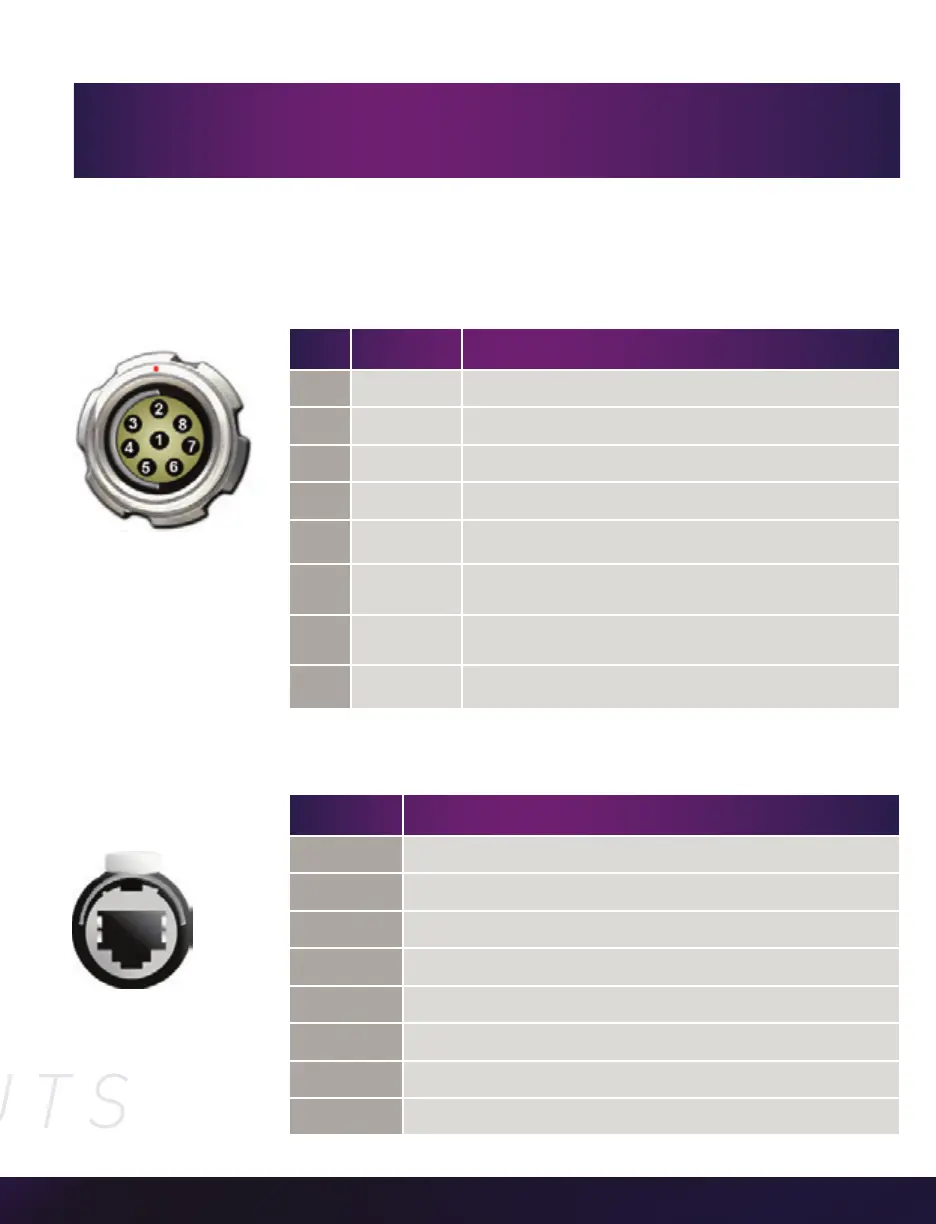

CONNECTOR PIN-OUTS
Gb ETHERNET CONNECTOR
Gb Ethernet port
8-pin Fischer Part #SS 103 A058-130
10Gb ETHERNET CONNECTOR
10Gb Ethernet port
8-pin RJ45
All pin-out diagrams refer to the connector on the camera body. Part numbers
indicated are for the cable’s connector.
PIN NOMENCLATURE/FUNCTION
1
XMDI0+ / MDI 0 (positive)
2
XMDI0- / MDI 0 (negative)
3
XMDI1+ / MDI 1 (positive)
4
XMDI2+ / MDI 2 (positive)
5
XMDI2- / MDI 2 (negative)
6
XMDI1- / MDI 1 (negative)
7
XMDI3+ / MDI 3 (positive)
8
XMDI3- / MDI 3 (negative)
PIN WIRE NOMENCLATURE/FUNCTION
1
Blue/White ETHRXP / 10/100/1000BASE-T Ethernet Receive (positive)
2
Blue ETHRXN / 10/100/1000BASE-T Ethernet Receive (negative)
3
Brown/White ETHTXP / 10/100/1000BASE-T Ethernet Transmit (positive)
4
Brown ETHTXN / 10/100/1000BASE-T Ethernet Transmit (negative)
5
Green/White
MDI2P /10/100/1000BASE-T Media Dependent Interface 2
(positive)
6
Green
MDI2N / 10/100/1000BASE-T Media Dependent Interface 2
(negative)
7
Orange/White
MDI2P / 10/100/1000BASE-T Media Dependent Interface 3
(positive)
8
Orange
MDI3N / 100/1000BASE-T Media Dependent Interface 3
(negative)
