Phantom v2640 - Page 78

Vision Research, Inc. | Phantom Ultrahigh-Speed Camera Manual

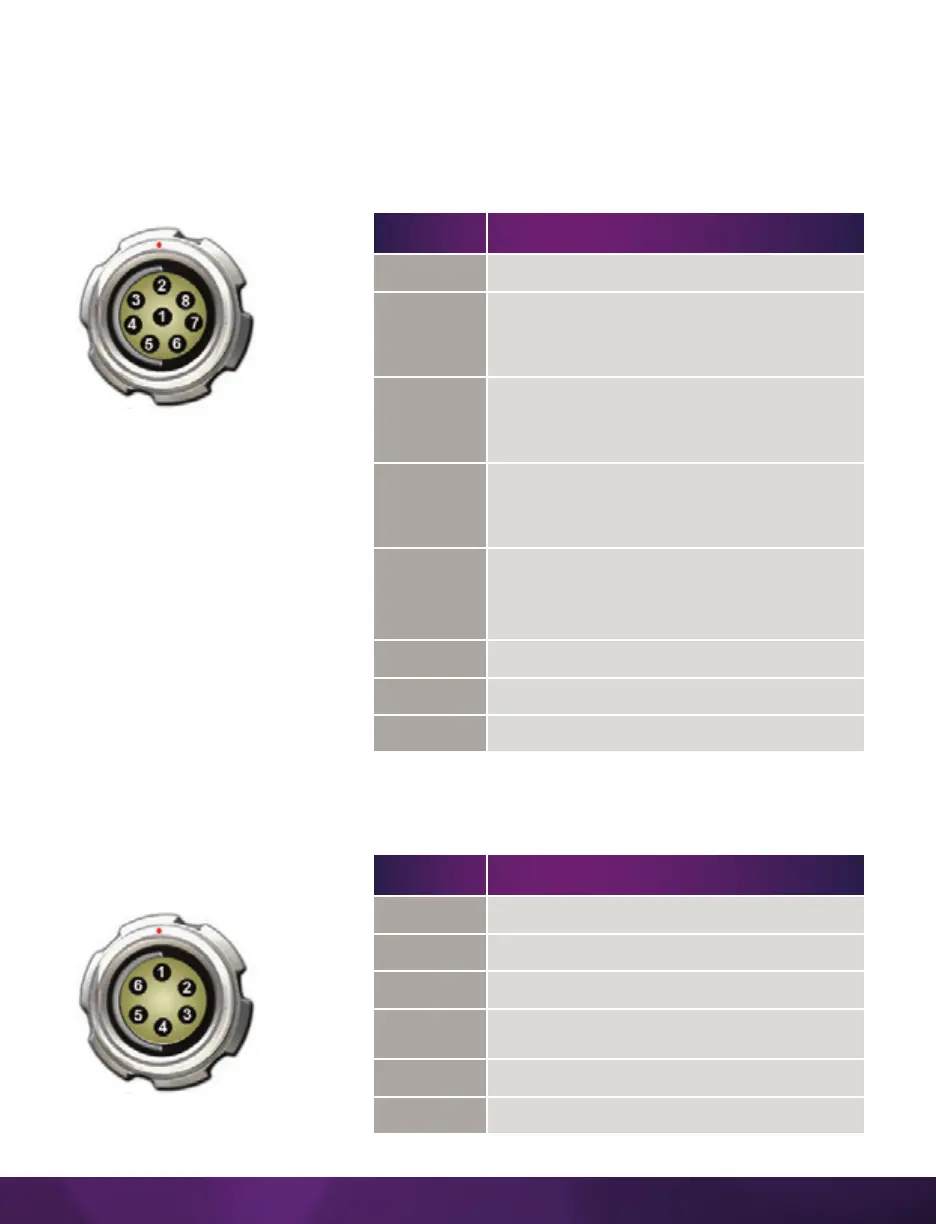

RANGE DATA CONNECTOR
Range Data port
8-pin Fischer Part #S103.Z058
GPS CONNECTOR
GPS (Ground Positioning System) port
6-pin Fischer Part #S103Z056
PIN NOMENCLATURE/FUNCTION
1
GND / Power Ground
2
RxD / RS-232 Receive Data
3
Unused
4
+5V/0.2A / +5VDC (Direct Current) positive power to
the Phantom camera at 0.2 amps.
5
pps In / Parts-per-Second In
6
pps Ground / Parts-per-Second Ground
PIN NOMENCLATURE/FUNCTION
1
GND / Power Ground
2
ROUT+ / Remote/Range Data Out (Positive),
(RS-422); +5V maximum. Depending on data
transmission rates, RS-422 can be used at
distances up to 4,000 feet (1,275 meters).
3
ROUT- / Remote/Range Data Out (Negative),
(RS-422); +5V maximum. Depending on data
transmission rates, RS-422 can be used at
distances up to 4,000 feet (1,275 meters).
4
RIN+ / Remote/Range Data In (Positive),
(RS-422); +5V maximum. Depending on data
transmission rates, RS-422 can be used at
distances up to 4,000 feet (1,275 meters).
5
RIN- / Remote/Range Data In (Negative),
(RS-422); +5V maximum. Depending on data
transmission rates, RS-422 can be used at
distances up to 4,000 feet (1,275 meters).
6
+3V3R
7
+24VR
8
GND / Power Ground
