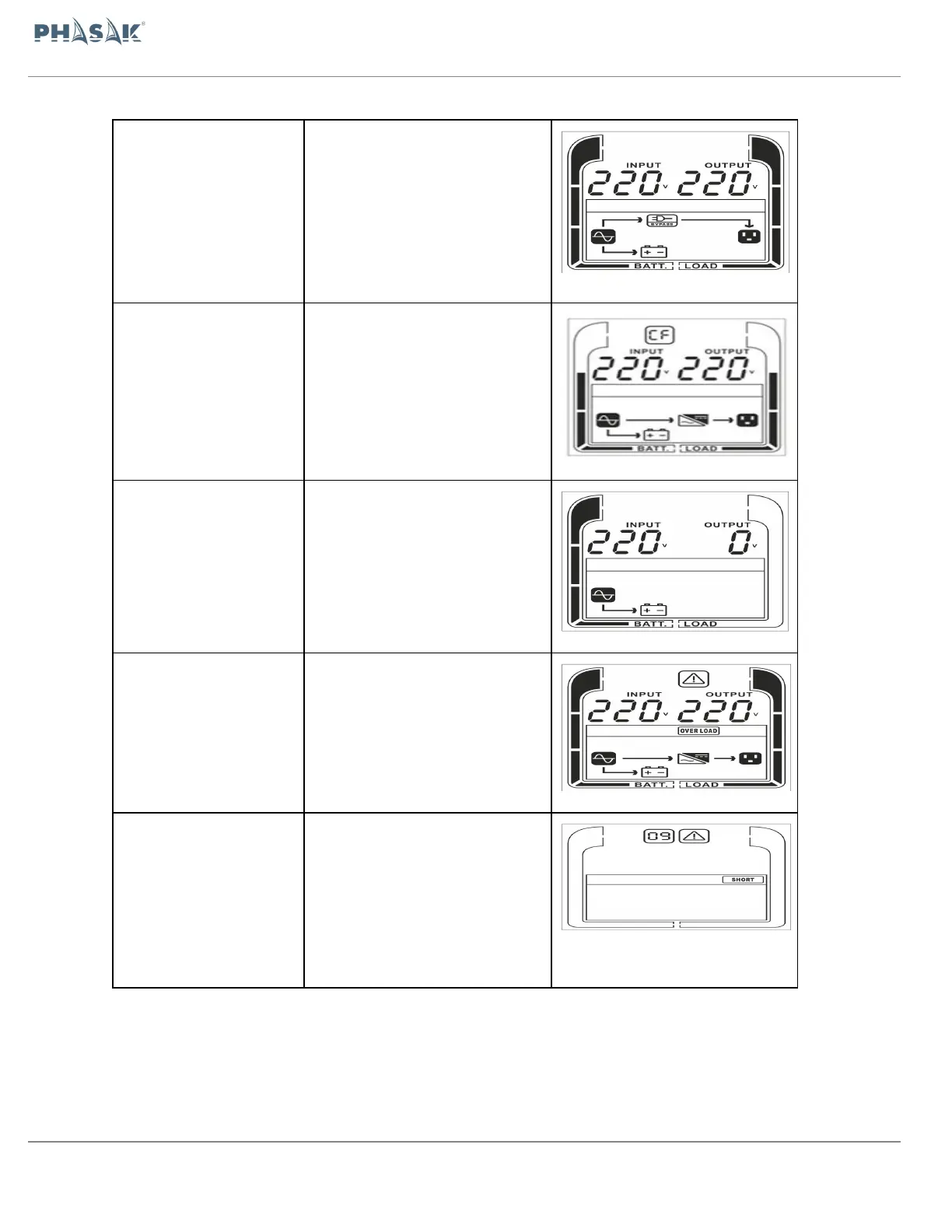

Bypass mode
When the input voltage is within
bypass voltage range, UPS will
bypass voltage to output.
Converter mode
When input frequency is
within 40Hz to 70Hz, the
UPS can be set at a
constant output frequency,
50Hz or 60Hz.
Standby mode
Utility will charge the
batttery and no output
voltage until switch on the
UPS.
Warning mode
The UPS is warning
because of overload.
Fault mode
The UPS goes to fault
mode because output is
short.
*) When operating in ECO Mode, the efficiency of UPS is higher than that in online mode, but transfer time should not
be 0ms
**) When operating in ConverterMode, the frequency of output should be always 50Hz or 60Hz, but load capacity will
be derated.
