OperatingInstructions&PartsManual
HorizontalRotaryTables
DividingPlates
Pg. 3

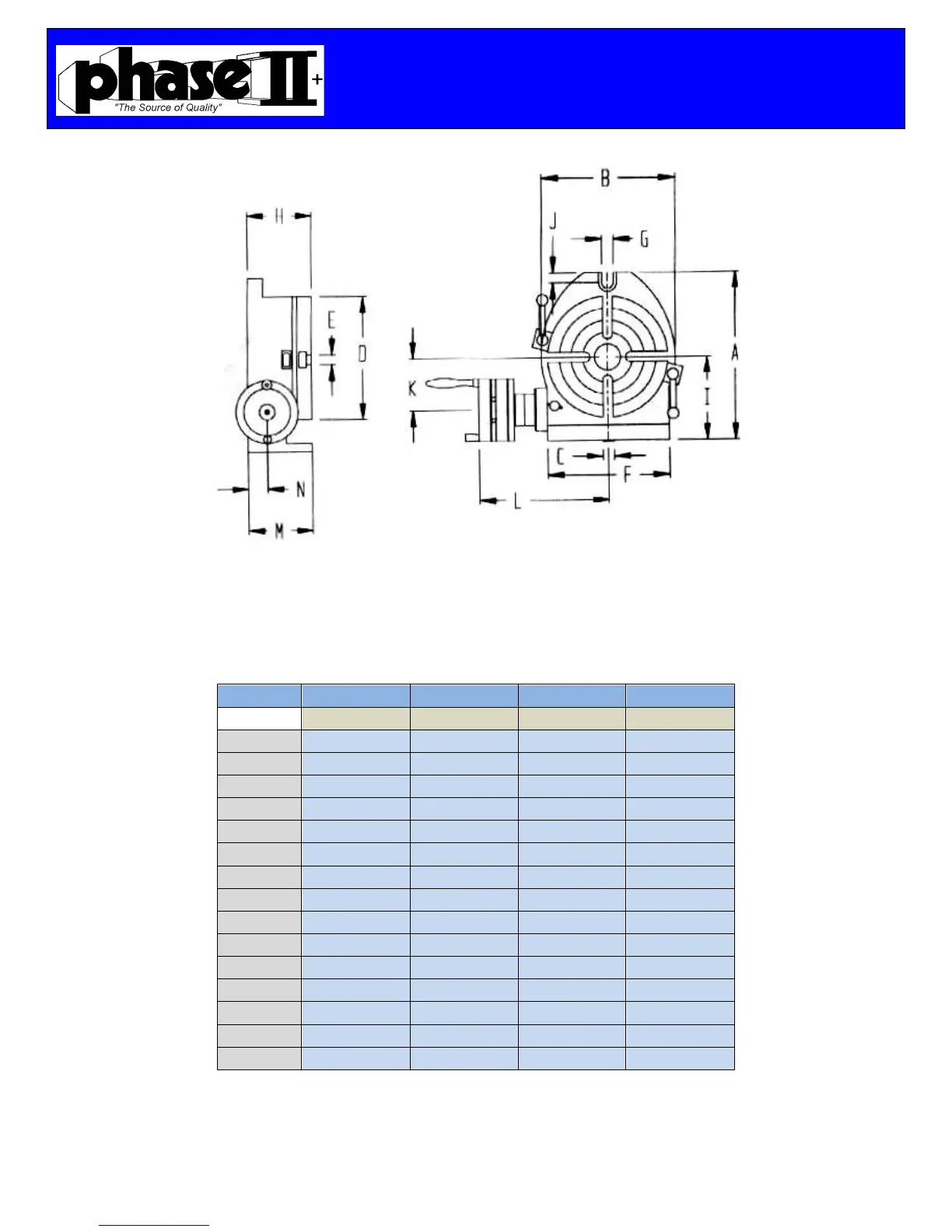

DimensionsRefertoFigure1.
NOTE:Alldimensionsareininches.
220‐006 220‐008 220‐010 220‐012
6”Table 8"Table 10"Table 12"Table
A. 9.53 11.2 12.900 16.125
B. 7.72 9.400 11.300 14.250
C. 0.472 0.552 0.650 0.710
D. 6.296 7.782 9.8 12.625
E. 2MT 3MT 3MT 4MT
F. 7.32 8.204 9.960 12.625
G. 0.472 0.570 0.562 0.752
H. 3.35 3.944 4.330 4.750
I. 4.92 5.985 6.750 8.250
J. 0.47 0.610 0.630 0.990
K. 3.00 3.70 4.100 5.250
L. 5.00 7.83 8.652 10.250
M. 3.23 3.88 4.175 4.640
N. 1.46 1.9 1.9 1.9
T‐Slots 0.39 0.465 0.465 0.545
Figure1‐
