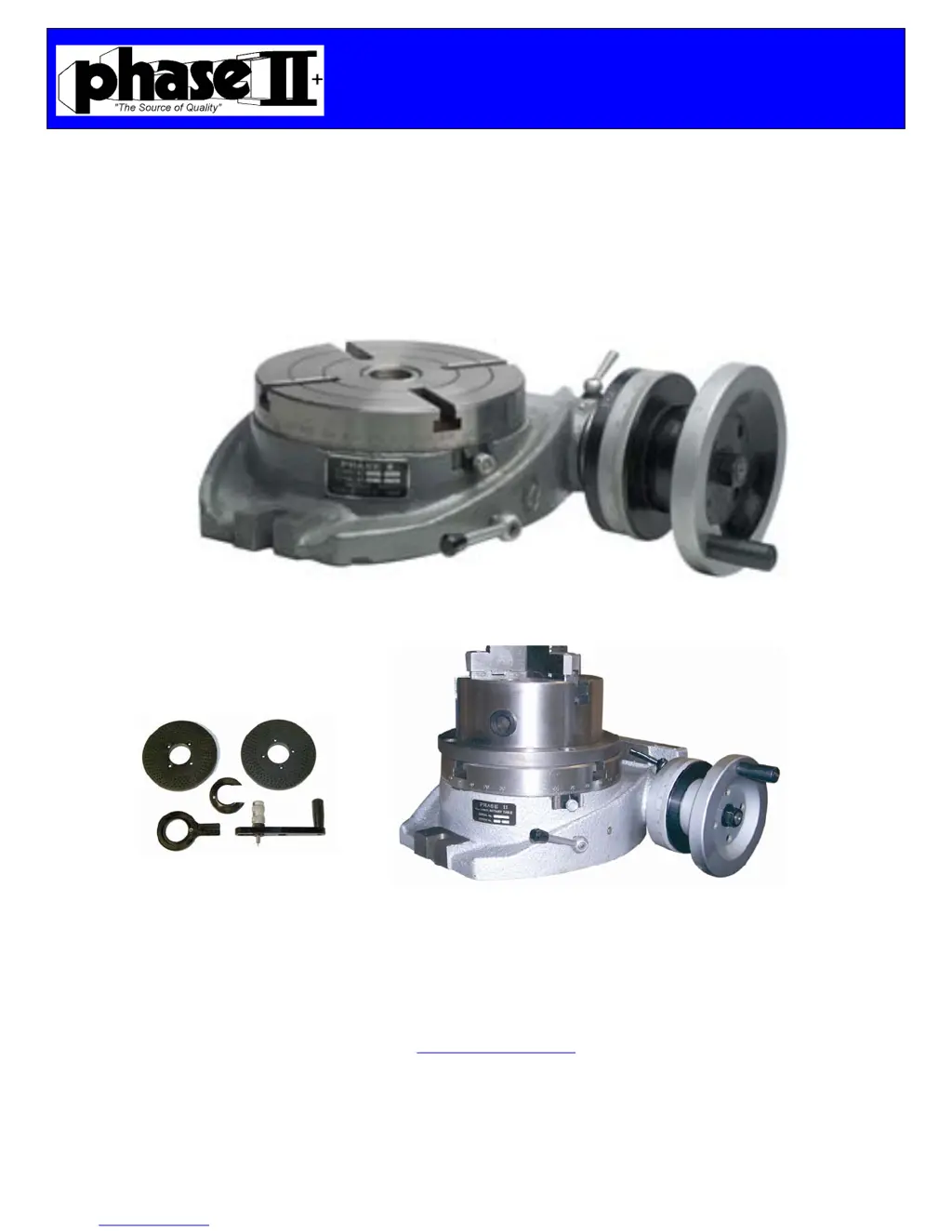

OperatingInstructions&PartsManual
HorizontalRotaryTables
DividingPlates
Pg. 1
21IndustrialAveUpperSaddleRiver,NJ.07458
Tel:(201)962‐7373Fax:(201)962‐8353
E‐Mail:info@phase2plus.com
WebSite:http://www.phase2plus.com
MachineToolAccessories*MaterialTestingInstruments*PrecisionMeasuringTools
HorizontalRotaryTables
OperationManual/PartsList

Table of Contents

Questions and Answers

  • M
    Mark SmithAug 3, 2025
    Why does the handwheel on my phase II+ 220-006 Power Tool not rotate?
    • J
      jasonmarshallAug 3, 2025
      If the handwheel on your phase II+ Power Tool won't rotate, there are several potential causes. First, check if the hold-down clamps are too tight and loosen them if necessary. Second, the lock nut might be too tight; adjust it properly following the maintenance guidelines. Finally, the table may need lubrication, so lubricate it properly as described in the maintenance section.
  • J
    Justin CortezAug 13, 2025
    What to do if the handwheel rotates but the table does not rotate on my phase II+ Power Tool?
    • S
      Shannon ClarkAug 13, 2025
      If the handwheel rotates but the table on your phase II+ Power Tool does not, it could be due to a missing key (Ref. No. 32). Insert the key to resolve this. Alternatively, the worm shaft may be disengaged; engage the worm shaft as described in the operation instructions.
  • R
    Rhonda LittleAug 22, 2025
    How to fix worm shaft that will not engage table on phase II+ 220-006?
    • R
      Rhonda LynnAug 22, 2025
      To fix a worm shaft that won't engage the table on your phase II+ Power Tool, properly adjust the threaded pin and set screw, referring to the maintenance section for guidance.

Summary

Description

Accuracy

Technical specifications including flatness, parallelism, and squareness of the clamping surface.

Specifications

Details on the dividing plates accessory and its division capabilities.

Unpacking

General Safety Information

Lubrication

Proper lubrication procedures for the rotary table using recommended oils.

Installation

Steps for securely mounting the rotary table to the machine work surface.

Operation: Rotary Table

Dividing Plate Accessory

How to use the dividing plate accessory for accurate divisions.

Maintenance

Worm Shaft Adjustment

Procedure to adjust the worm shaft for wear and proper engagement.

Eccentric Sleeve limit screw adjustment

Adjusting the eccentric sleeve limit screw for correct worm shaft engagement.

Replacement Parts List for Dividing Attachment

Replacement Parts List

Troubleshooting Chart

Worm Gear; Eccentric Sleeve Adjustment

Dividing Plate Chart Revision (08;2007)
