Phase LHX Series - DXL Model Nomenclature

79 | P a g e
9.2 DXL Model Nomenclature

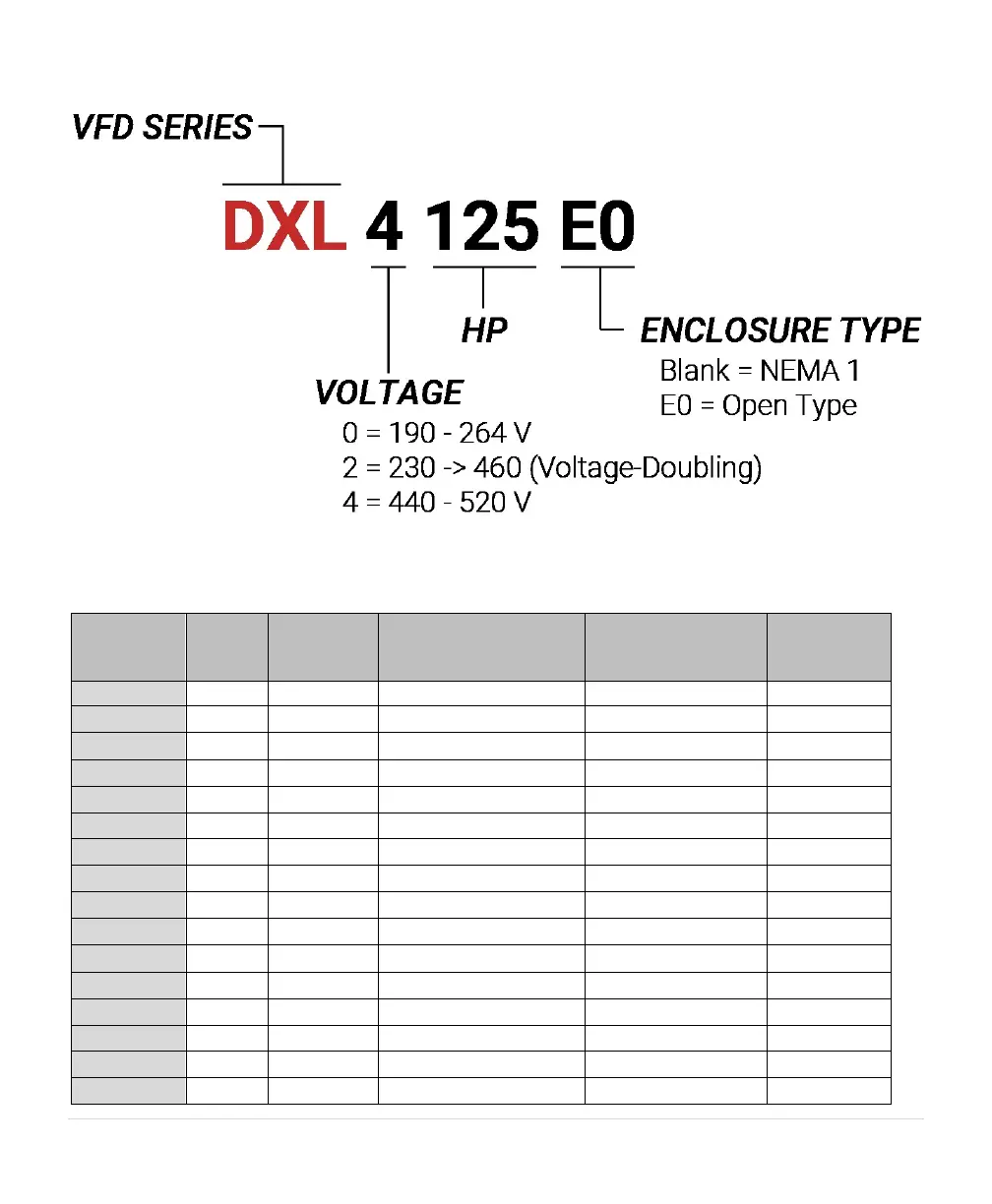

Figure 25 – DXL Series Nomenclature
Table 32 – DXL Ratings
Model
Frame
Size
Rated HP
(kW)
Rated Input Voltage
(1)
Rated Output
Voltage
(3)
Rated
Input/Output
Current
DXL007
D1
7.5 (5)
120-230 V, 3-phase
0-V
IN
, 3-phase
24 A
DXL010
D1
10 (7.5)
120-230 V, 3-phase
0-V
IN
, 3-phase
31 A
DXL015
D1
15 (11)
200-230 V, 3-phase
0-V
IN
, 3-phase
46 A
DXL020
D1
20 (15)
200-230 V, 3-phase
0-V
IN
, 3-phase
61 A
DXL025
D1
25 (18.5)
200-230 V, 3-phase
0-V
IN
, 3-phase
75 A
DXL030
D1
30 (22)
200-230 V, 3-phase
0-V
IN
, 3-phase
91 A
DXL205
(2)
D1
5 (3.3)
200-230 V, 1-phase
0-2 x V
IN
, 3-phase
30 A / 9 A
DXL207
(2)
D1
7.5 (5)
200-230 V, 1-phase
0-2 x V
IN
, 3-phase
52 A / 13 A
DXL210
(2)
D1
10 (7.5)
200-230 V, 1-phase
0-2 x V
IN
, 3-phase
64 A / 18 A
DXL215
(2)
D1
15 (11)
200-230 V, 1-phase
0-2 x V
IN
, 3-phase
87 A / 24 A
DXL407
D1
7.5 (5)
200-460 V, 3-phase
0-V
IN
, 3-phase
13 A
DXL410
D1
10 (7.5)
200-460 V, 3-phase
0-V
IN
, 3-phase
18 A
DXL415
D1
15 (11)
200-460 V, 3-phase
0-V
IN
, 3-phase
24 A
DXL420
D1
20 (15)
200-460 V, 3-phase
0-V
IN
, 3-phase
31 A
DXL425
D1
25 (18.5)
200-460 V, 3-phase
0-V
IN
, 3-phase
38 A
DXL430
D1
30 (22)
200-460 V, 3-phase
0-V
IN
, 3-phase
46 A
