Skyworth RGB R&D Centre Technical Document
57
/
60

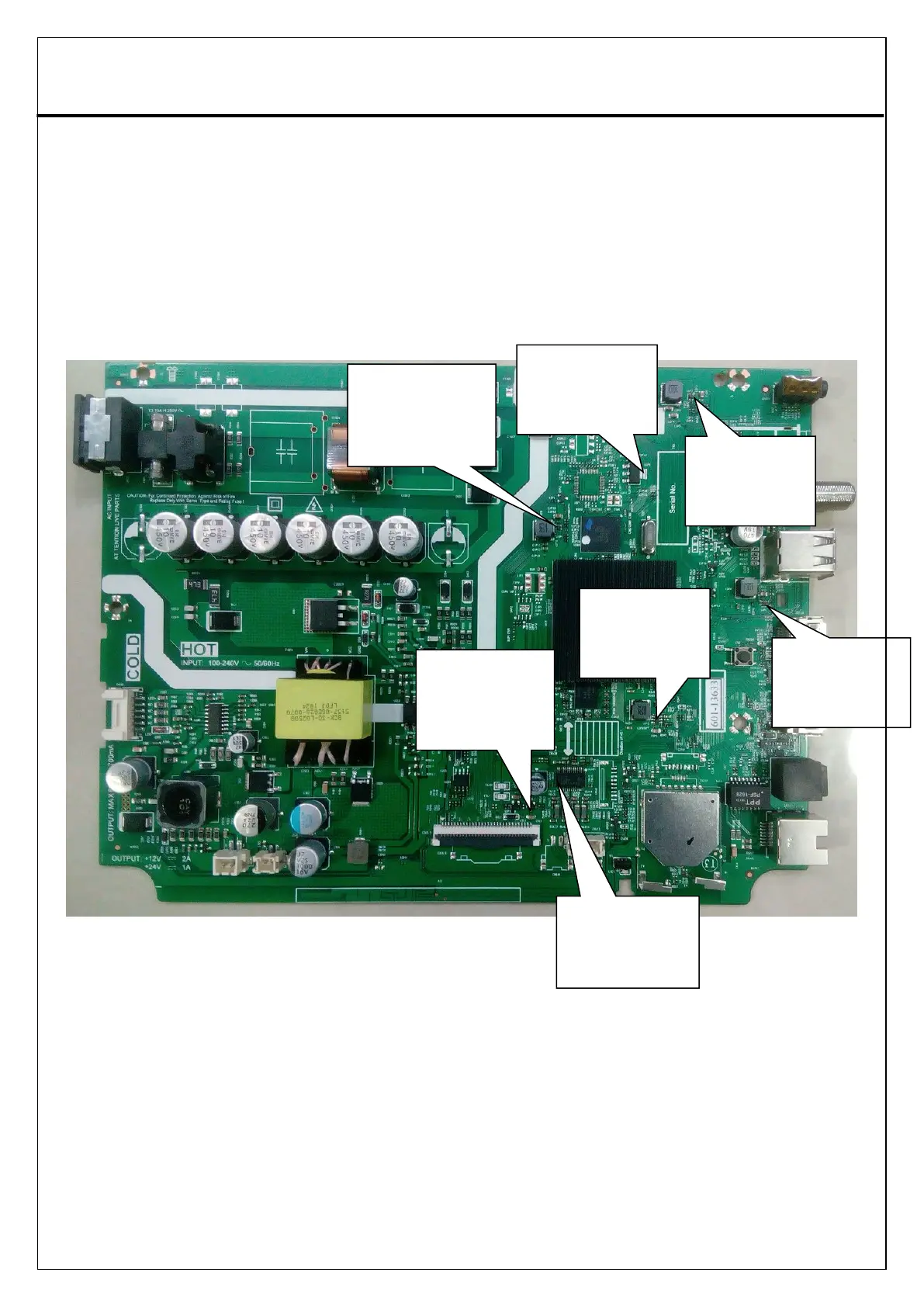

10.Key Power Check Point
U6A01 AMP
VCC=12V
U4P7
5V_STB
U0P3
1.5V_DDR
U4P1
+1.0V_VDDC
Q1P11
PANEL_VCC
=12V
U4P6
+3.3V_STB
U3P6
1.8V_EMMC
