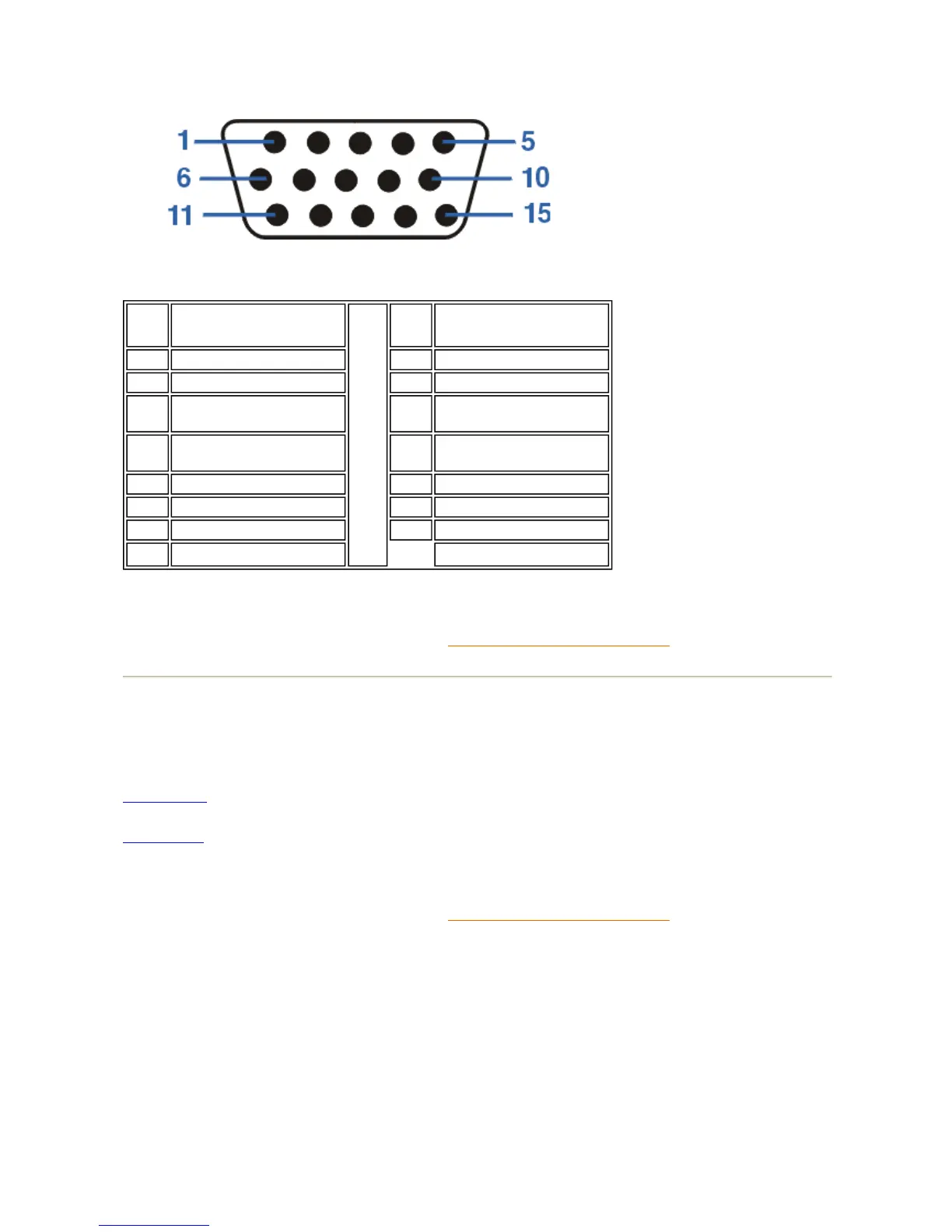

The 15-pin D-sub connector (male) of the signal cable (IBM systems):
RETURN TO TOP OF THE PAGE
Views
Follow the links to see various views of the monitor and its components.
Front View
Rear View
RETURN TO TOP OF THE PAGE
Pin
No.
Assignment
Pin
No.
Assignment
1
Red video input
9 +5V DDC supply
2
Green video input 10 Logic ground
3
Blue video input 11
Identical output -
connected to pin 10
4
Identical output -
connected to pin 10
12 Serial data line (SDA)
5
Self-test 13 H. Sync / H+V
6
Red video ground 14 V. Sync (VCLK for DDC)
7
Green video ground 15 Data clock line (SCL)
8
Blue video ground
