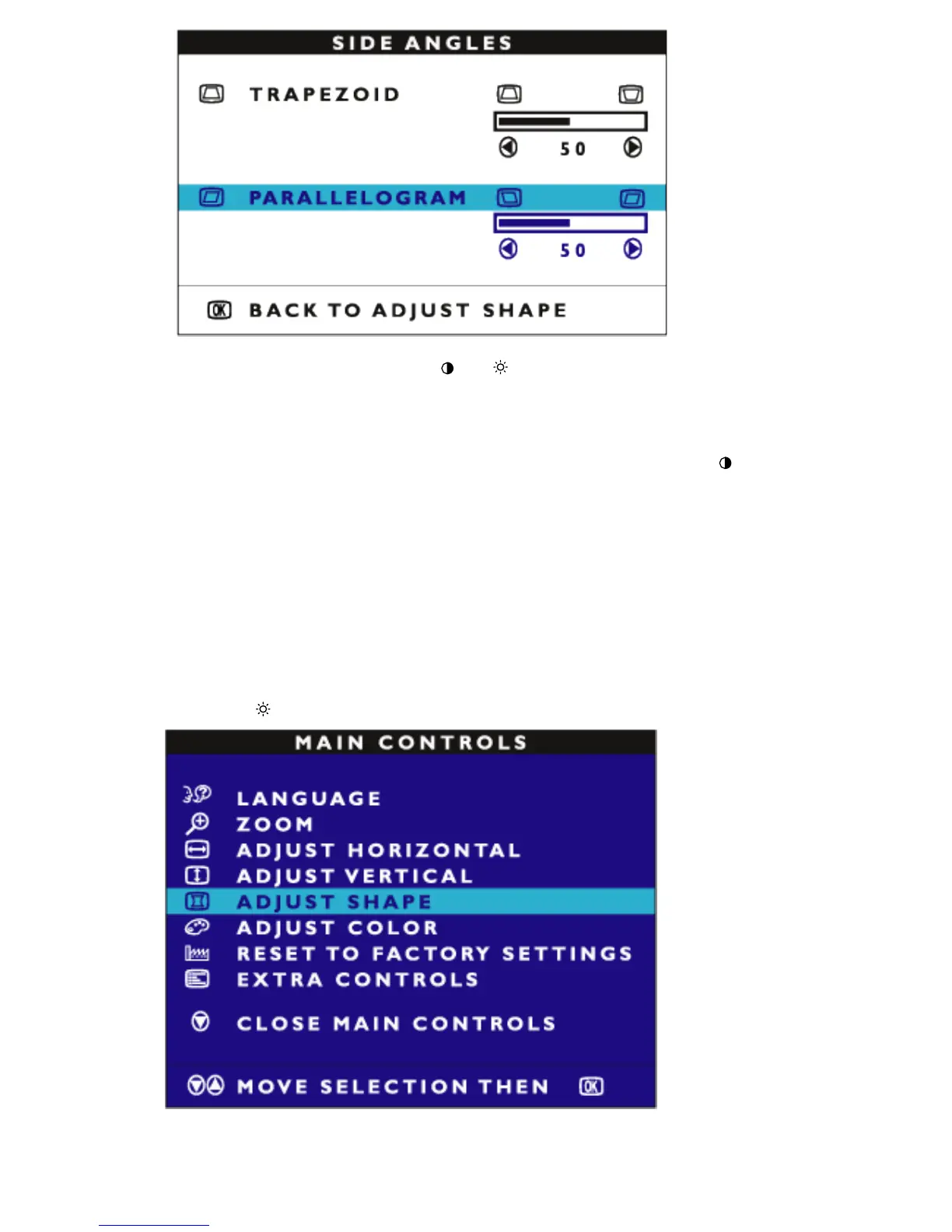

8) To adjust the parallelogram, Press the (-) or (+) button to adjust.
9) When the parallelogram is adjusted, press the MENU button to confirm. Press MENU again to
return to the ADJUST SHAPE window. BACK TO MAIN WINDOWS will be highlighted.
10) Press the MENU button to return to the MAIN CONTROLS window, or press the (-) button
until ROTATE IMAGE is highlighted.
ROTATE IMAGE (Not available in all models)
ROTATE IMAGE under ADJUST SHAPE allows you to adjust one of the five preset options.
These two options are PINCUSHION and BALANCED pincushion. Note: use this feature only
when the picture is not square.
1) Press the MENU button on the monitor. The MAIN CONTROLS window appears.
2) Press the (+) button until ADJUST SHAPE is highlighted.
3) Press the MENU button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE
should be highlighted.
