1 Red video input 9 No pin
2 Green video input 10 Self-test
3 Blue video input 11 Ground
4 Ground 12 Serial data line (SDA)
5 Identical output 13 H. Sync / H+V
- Connected to pin 10 14 V. Sync (VCLK for DDC)
6 Red video ground 15 Data clock line (SDA)
7 Green video ground
8 Blue video ground
Pin No. Assignment Pin No. Assignment
(II) Pin assignment:

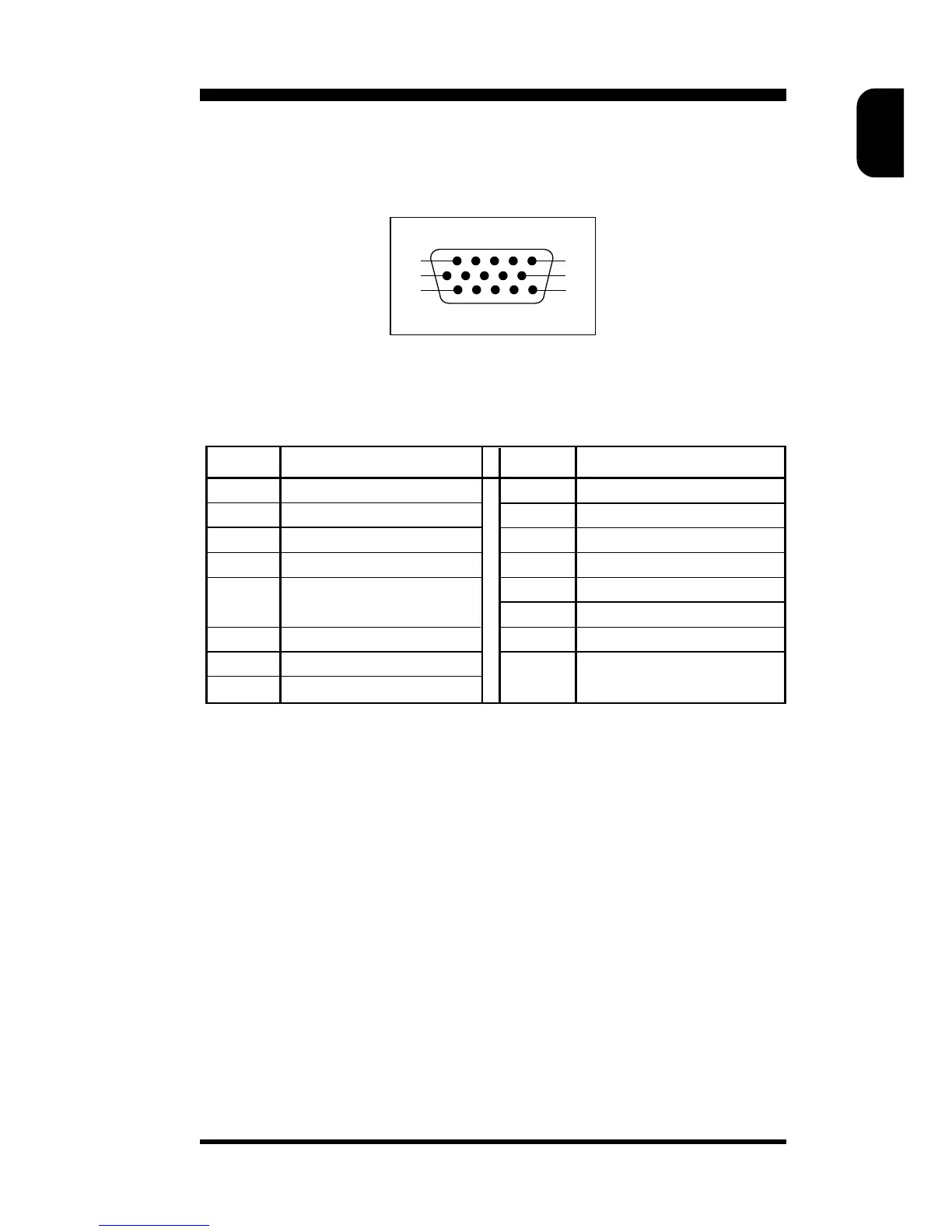

The 15-pin D-sub connector (male) of the signal cable (IBM systems):
5
15
1
6
11
10
