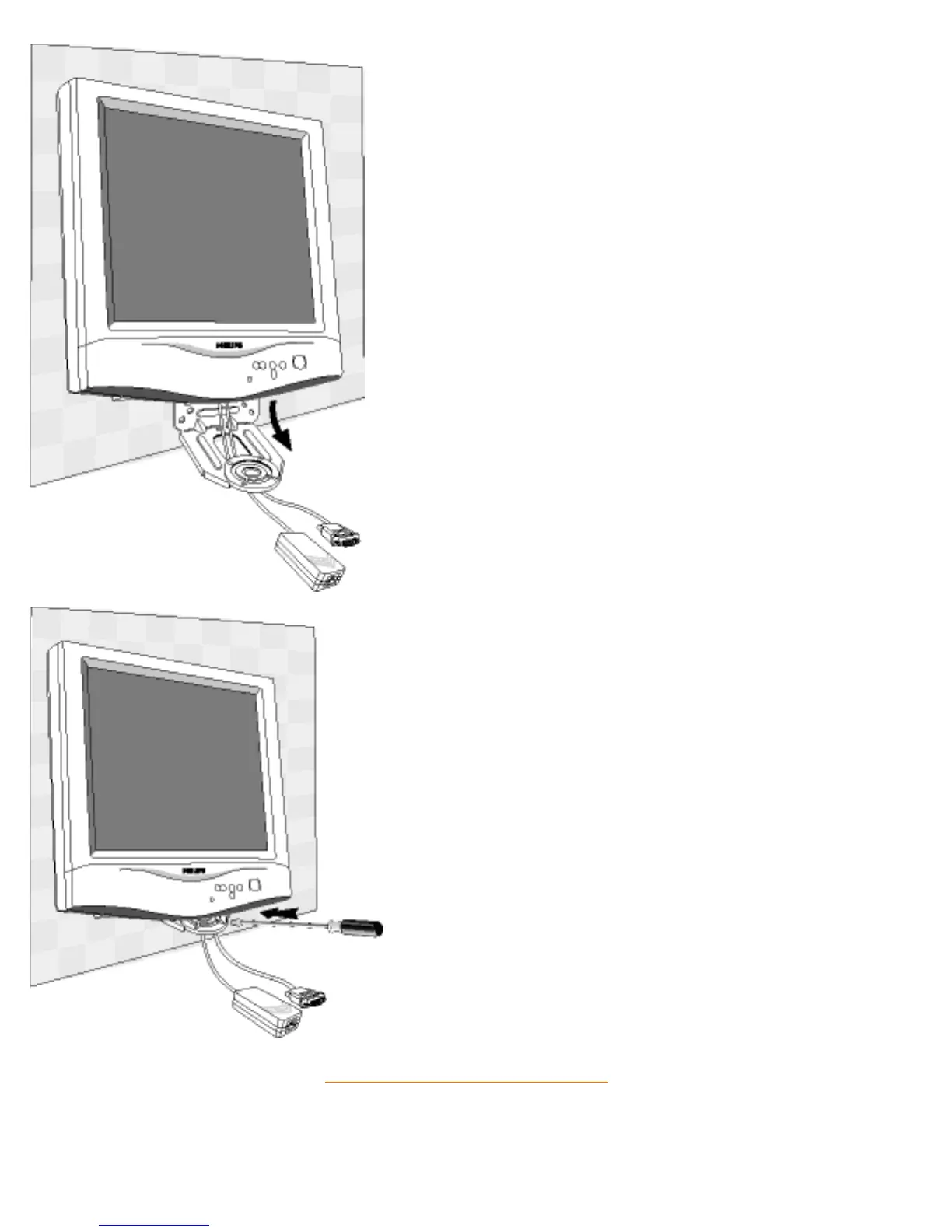

4) Thread all cables through the
hole at the bottom of the bracket
and use the clip provided to hold
them in place.
5) Slide the support pin at the
bottom of the monitor into the
matching hole on the bracket,
making sure that the pin is aligned.
Then use the original base screw to
securely fix the monitor to the
bracket.
