82
Meridian 3
¾ Audio channels: 2.
DDC channel:
¾ Allows source to interrogate capabilities of sink.
¾ I²C signaling with 100 kHz clock.
¾ E-EDID data structure according to EIA/CEA-861D and VESA
Enhanced EDID.
Content protection:
According to High-Definition Content Protection (HDCP)
Specification 1.10.
HDMI video input should support timing defined in CEA 861-D
specification with extended EDID blocks
Video Timing Support :
Format Resolution Type Vertical frequency
480i 720 x 480 SD 60Hz
480p 720 x 480 SD 60Hz
576i 720 x 576 SD 50Hz
576p 720 x 576 SD 50Hz
720p 1280 x 720 HD 50Hz , 60Hz
1080i 1920 x 1080 HD 50Hz , 60Hz
1080p 1920 x 1080 HD 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

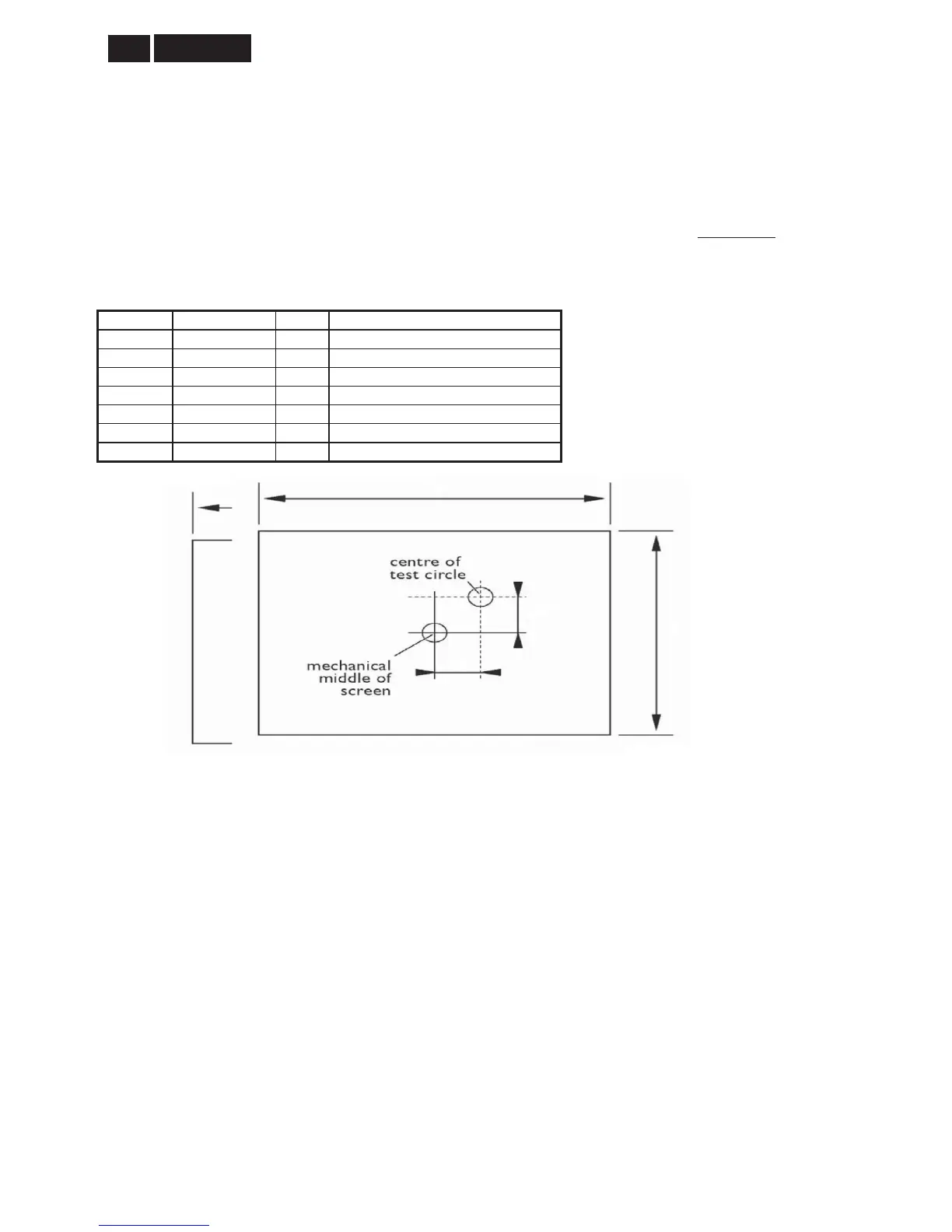

x Picture centering - H & V 0.5 %. (for TV, 480i/p, 576i/p, 720p, 1080i/p)
Over Scan -
1. RGB signal : OFF (no this function)
2. YUV signal : (Video timming) ON (Be use and set ON/OFF)
(But only 1080p define is OFF )
PC timing: to follow PC timing table
TMDS/+5V/DDC/HPD/CEC Signals
(TMDS Signal)
Termination Supply Voltage AV
CC
: 3.3V±5%
Differential Voltage Level : 150mV – 1200mV
Common Mode Voltage : (AV
CC
– 300mV) – (AV
CC
– 37.5mV)
Differential Sensitivity : 150mVp-p
Maximum differential Voltage : 1560mVp-p
(+5V Power)
Power Supply Voltage : 4.7V – 5.3V
Maximum Current Consumption : 50mA
